Section 573 (Overhead Junction Block): Location

WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

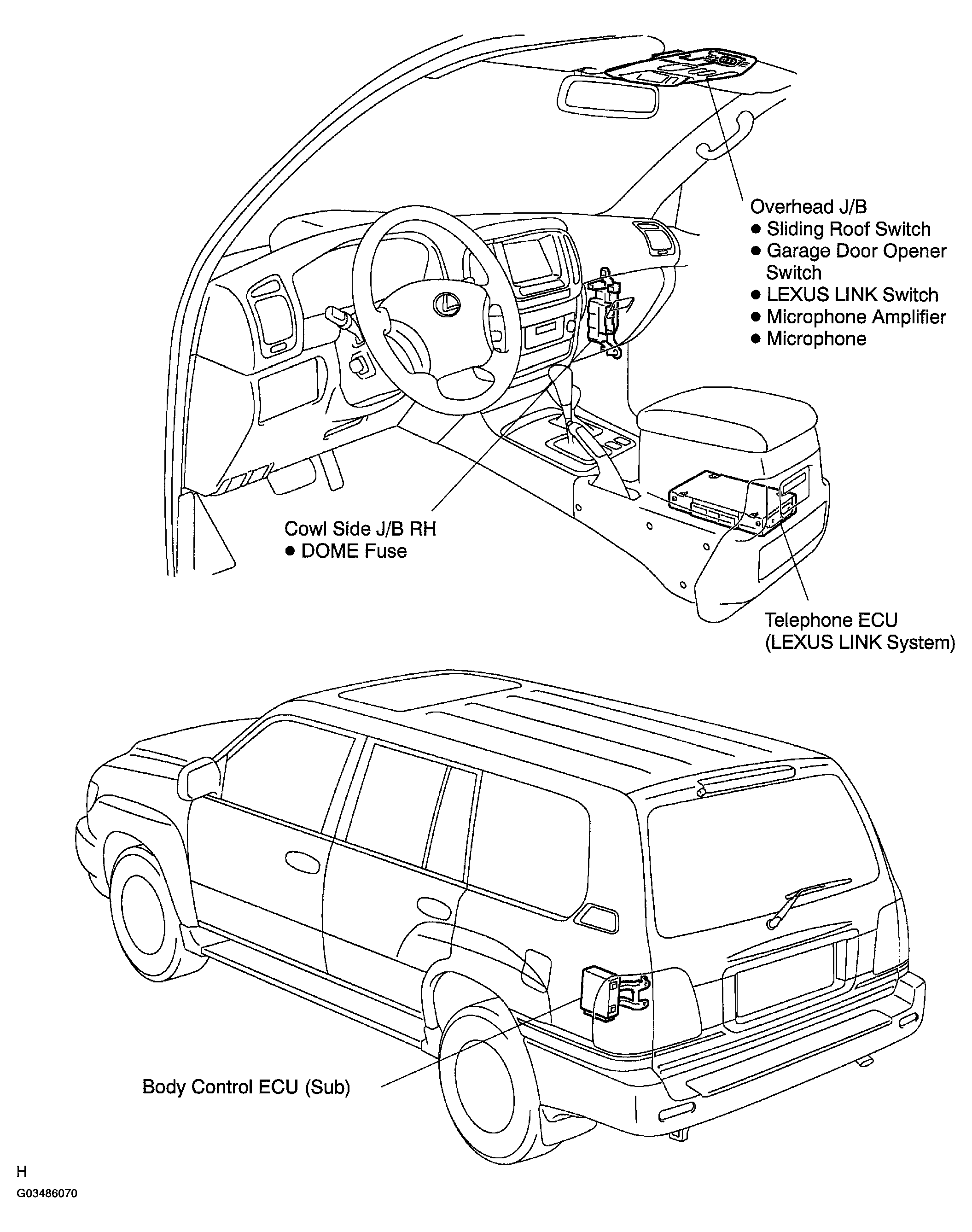

Fig 1: Locating Overhead Junction Block
G03486070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
