Cooler Compressor ASSY: Components

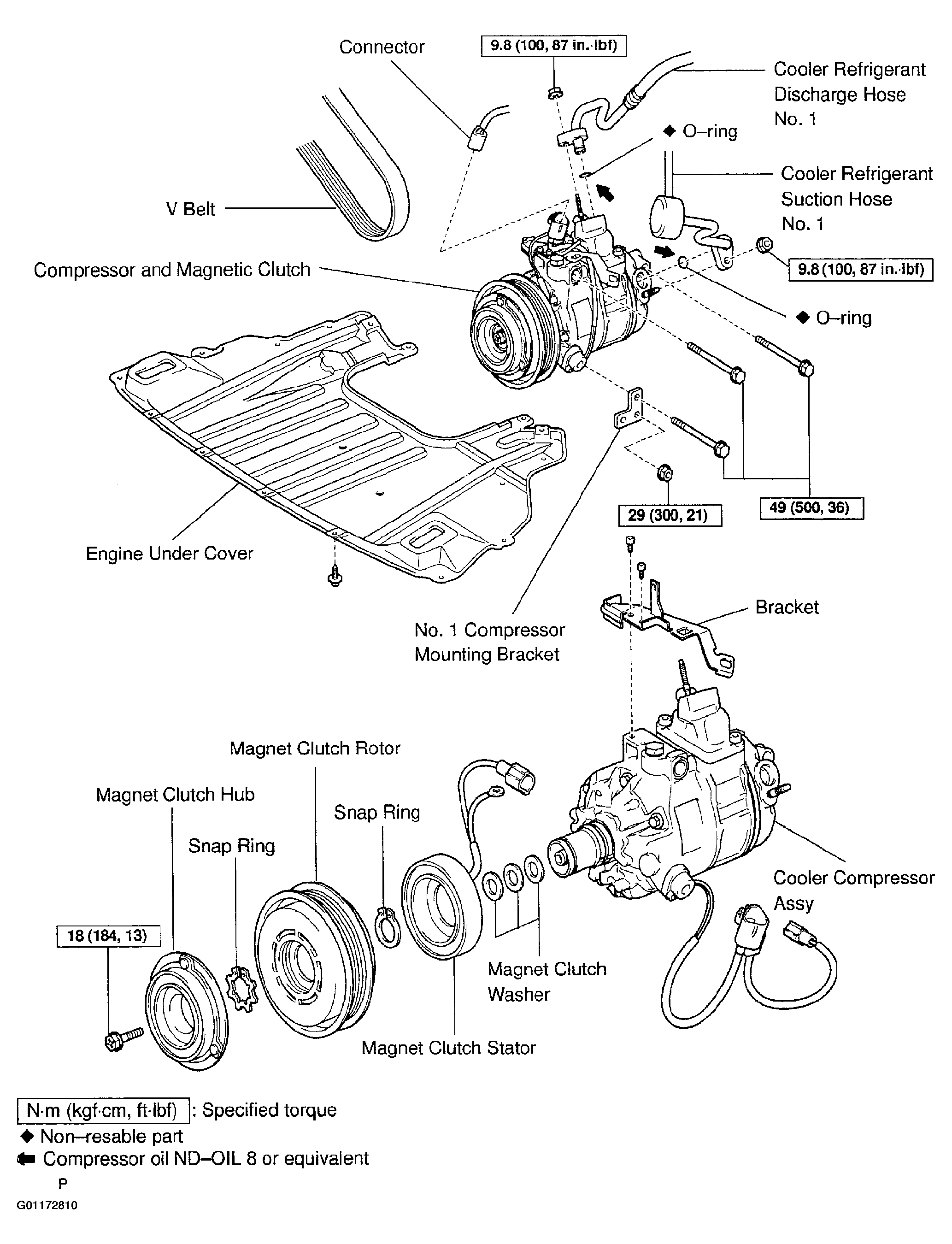

Fig 1: Identifying Cooler Compressor Assy Components

G01172810

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
