Refrigerant Line: Components

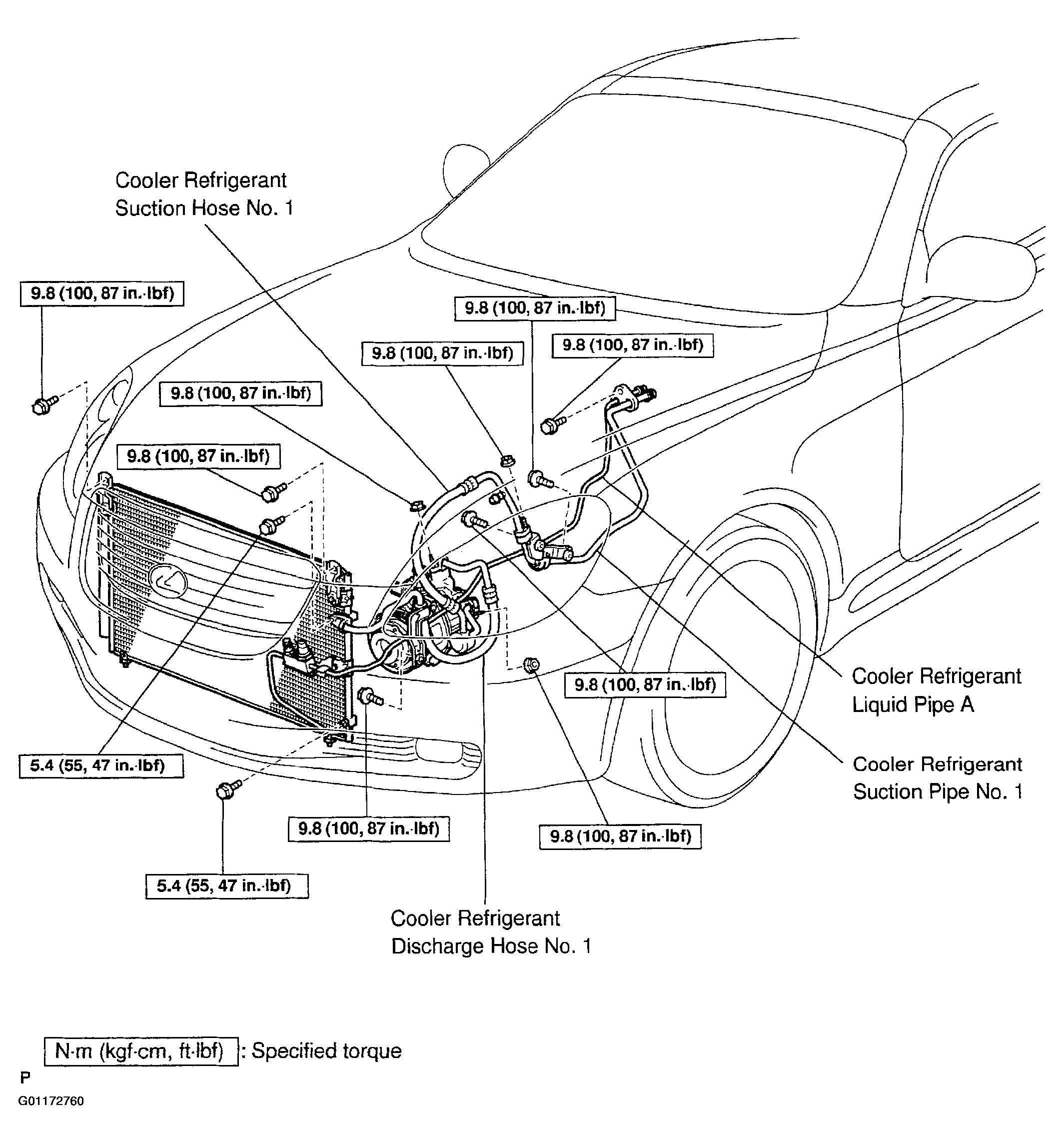

Fig 1: Removing/Installing Refrigerant Line And Related Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
