Programming Wireless Door Lock Remote Transmitters (EL005-01)

Publication date: 2001-08-10
Reference number: EL005-01

PROGRAMMING WIRELESS DOOR LOCK REMOTE TRANSMITTERS

TECHNICAL SERVICE BULLETIN

Reference Number(s): EL005-01, Date of Issue: August 10, 2001

LEXUS:	2001 LS 430; 2002 SC 430
GROUP:	Electrical
COPYRIGHT:	© 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

Programming Wireless Door Lock Remote Transmitters

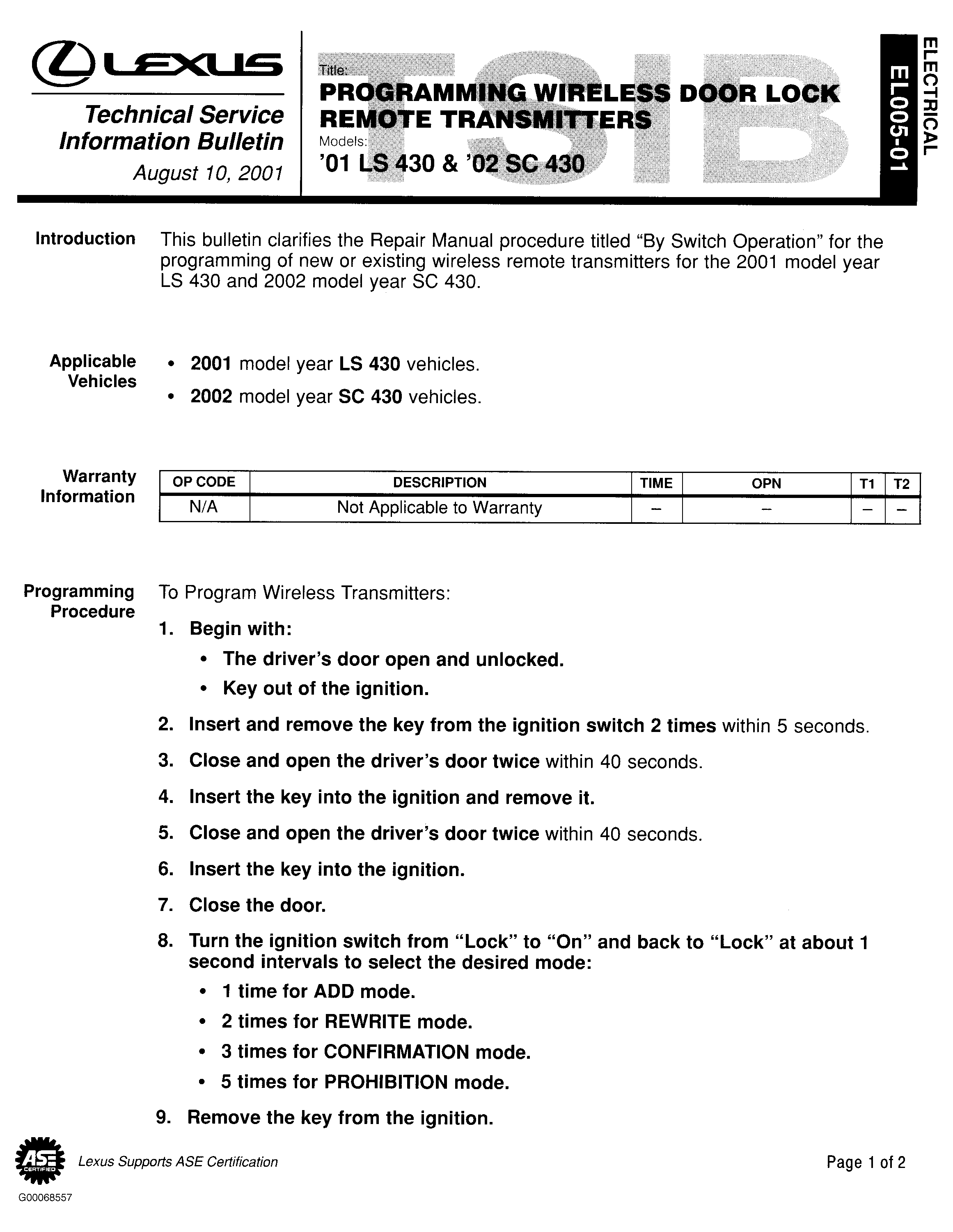

Fig 1: Page 1

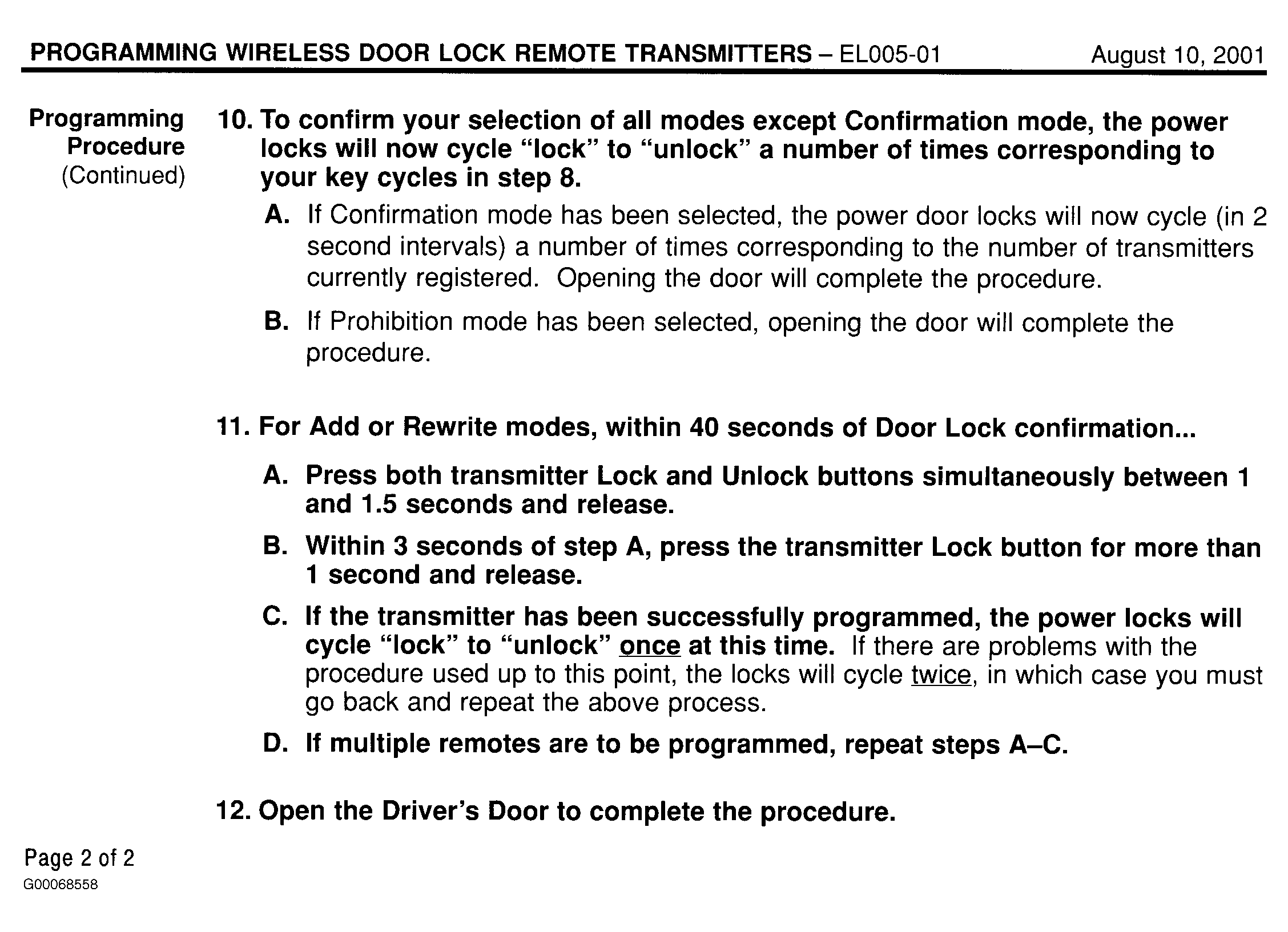

Fig 2: Page 2
