Removal & Installation (Lexus SC430)

Manufacturer does not provide removal and installation procedures for this model. For an exploded view of related components, see Fig 1 and Fig 2 .

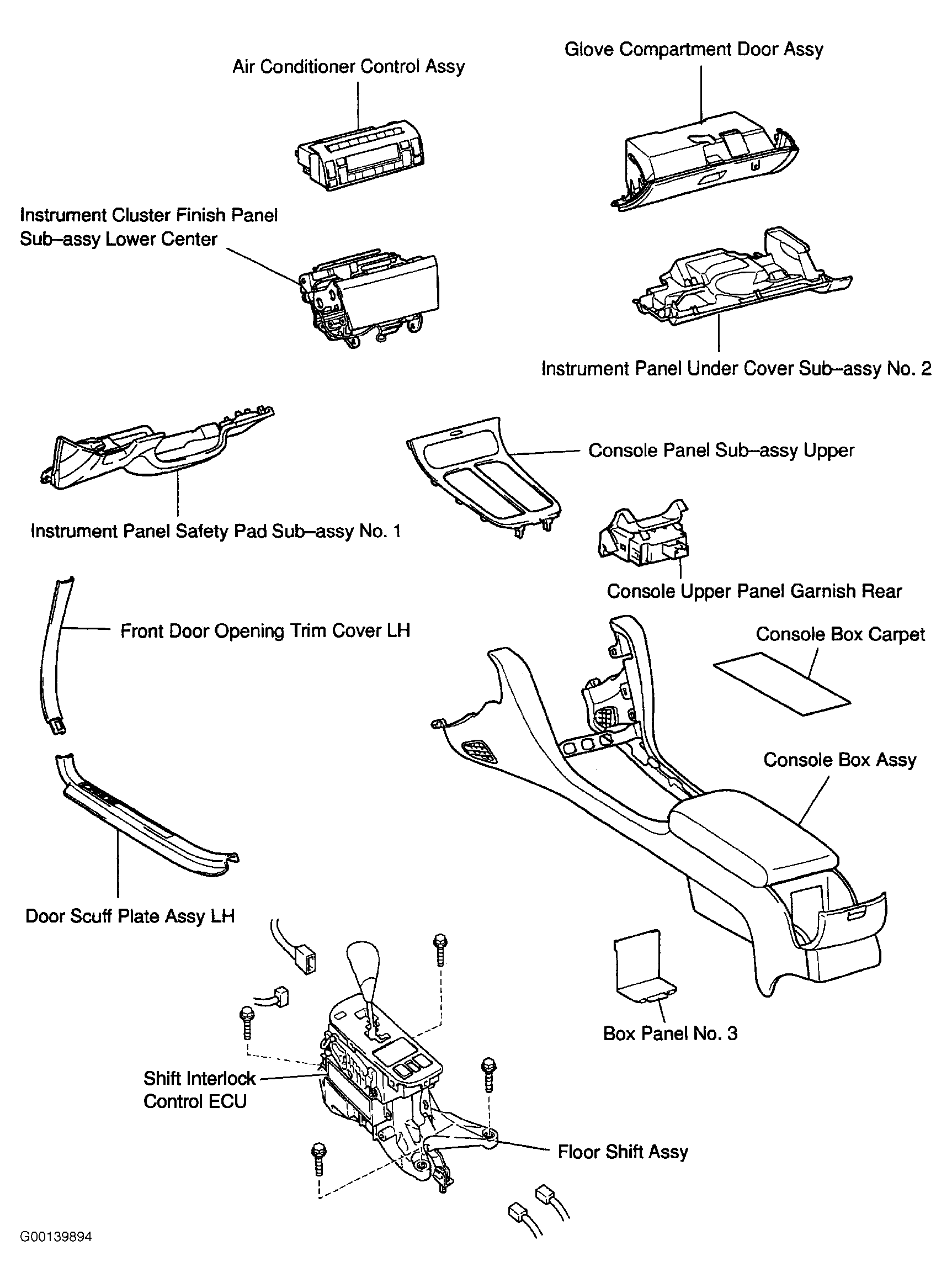

Fig 1: Exploded View Of Floor Console & Related Components (Lexus SC430)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

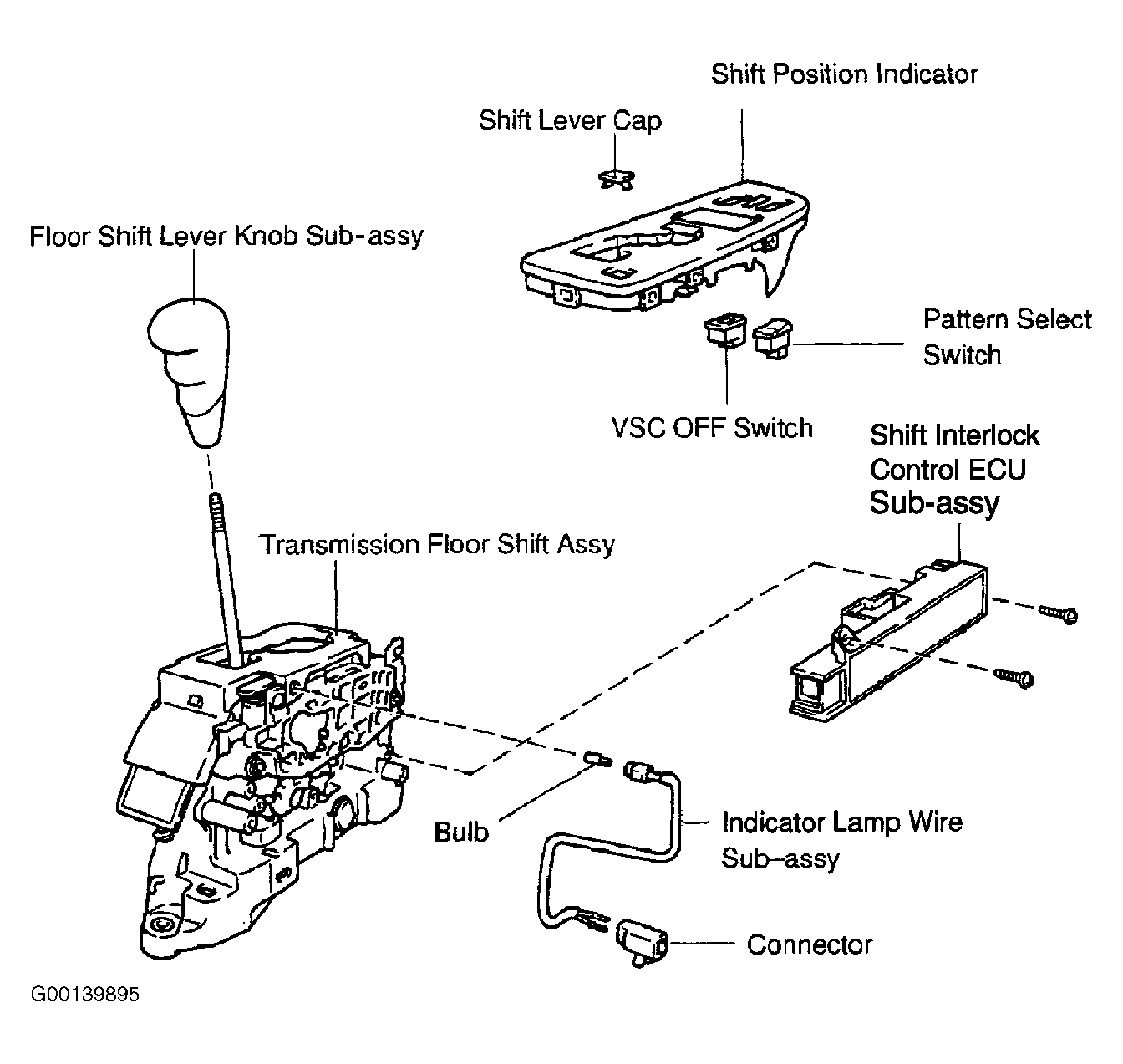

Fig 2: Exploded View Of Floor Shift Control Assembly (Lexus SC430)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
