Front Bumper: Components

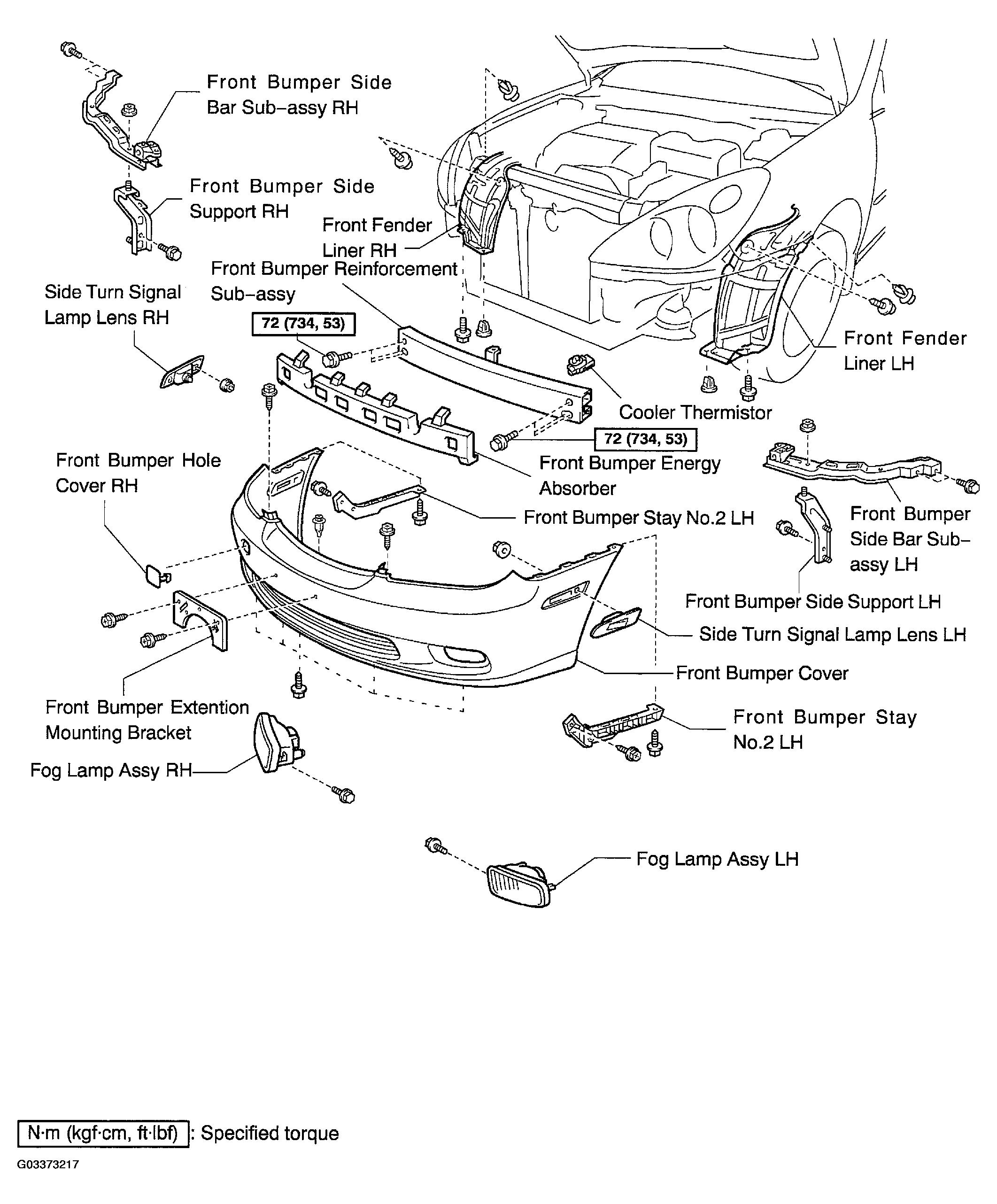

Fig 1: Exploded View Of Front Bumper Components

G03373217

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
