Rear Seat: Components

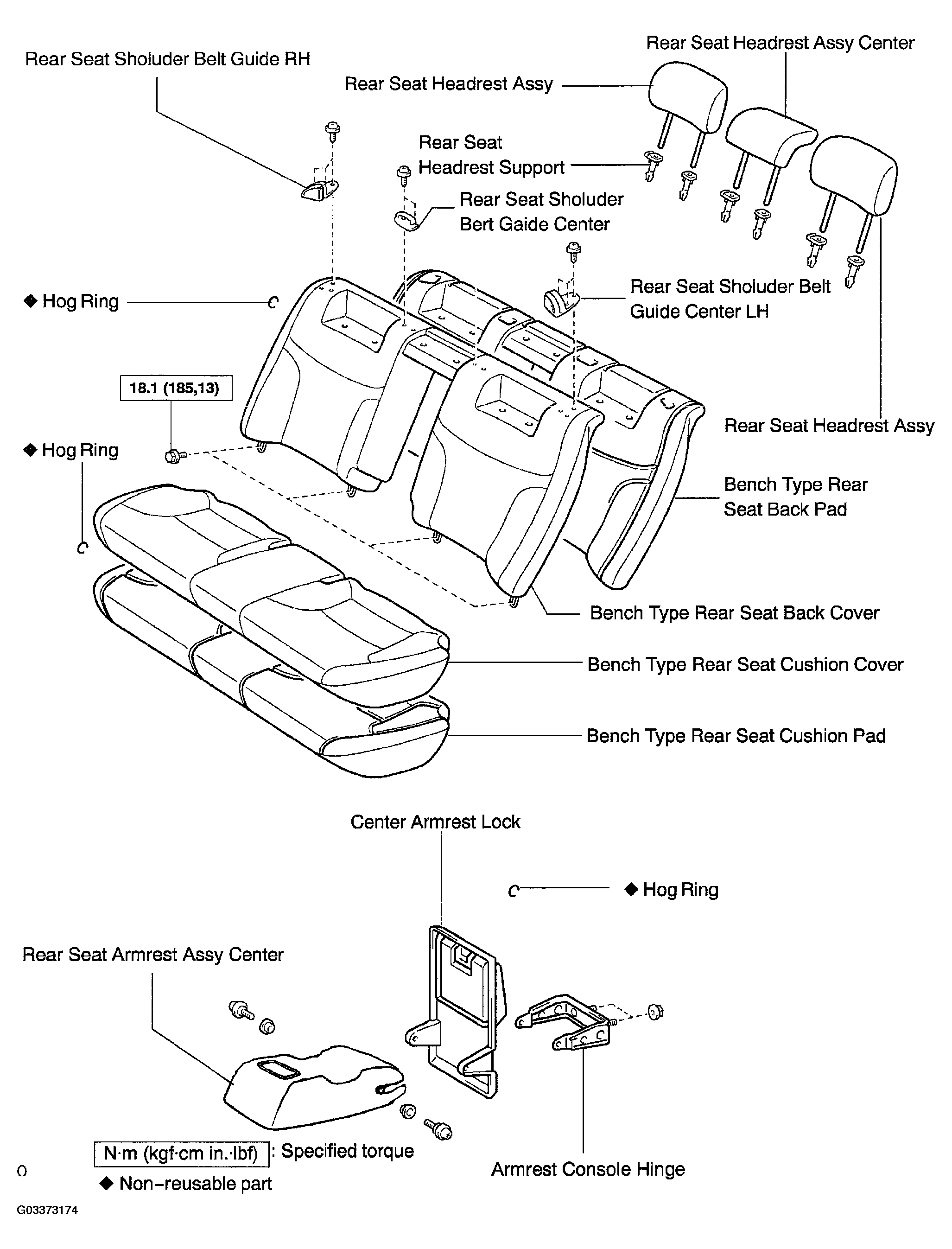

Fig 1: Identifying Rear Seat Components
G03373174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
