Home › Lexus › 2003 › ES 300 › Repair and Diagnosis › Body & Frame › Windows › Power Window Control System - Diagnosis › Location

Power Window Control System - Diagnosis: Location

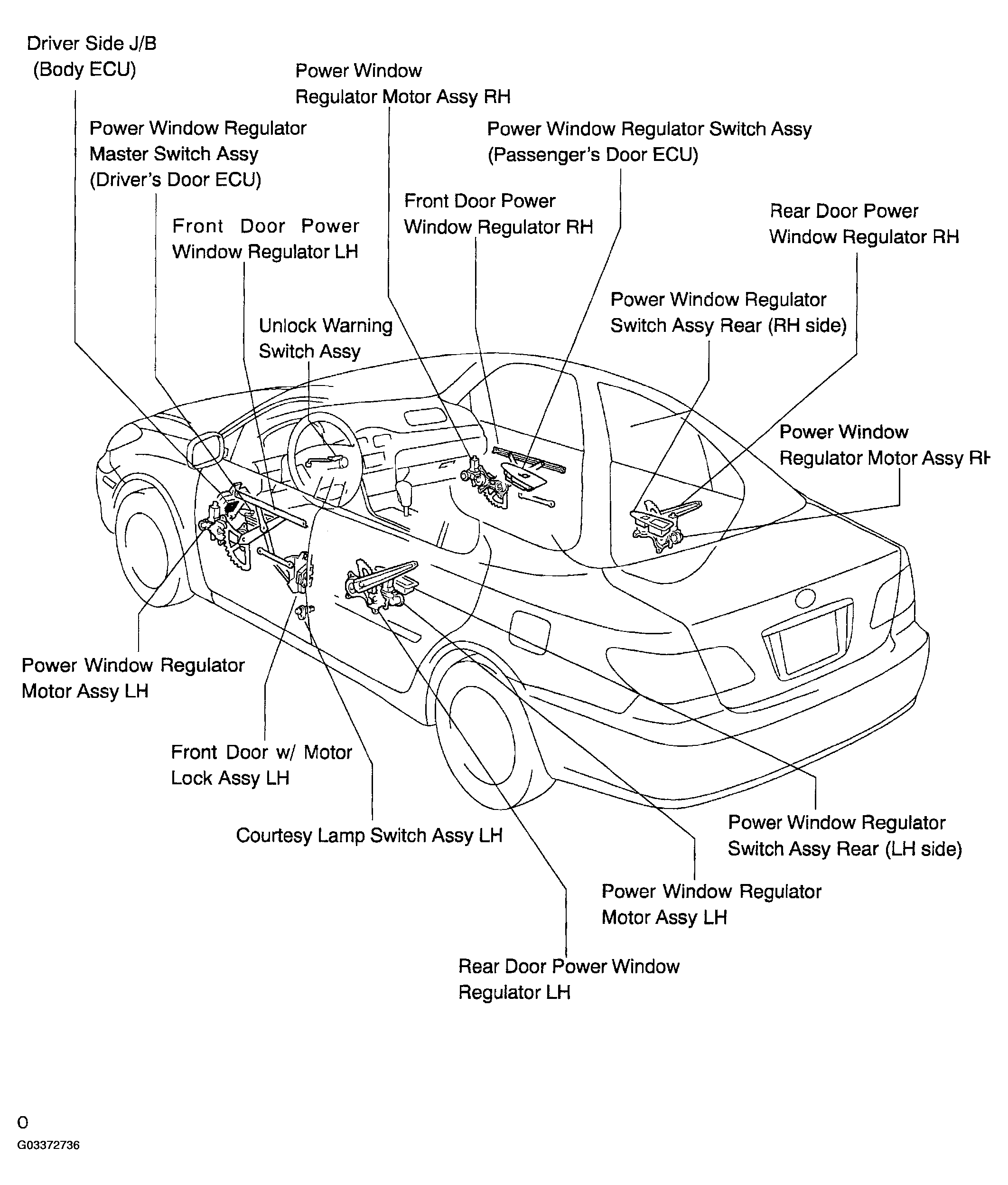

Fig 1: Locating Power Window Control System Components
G03372736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
