Power Window Control System - Diagnosis
›
Remote Control Power Window Regulator By Master Switch
›
Wiring Diagram
Remote Control Power Window Regulator By Master Switch: Wiring Diagram

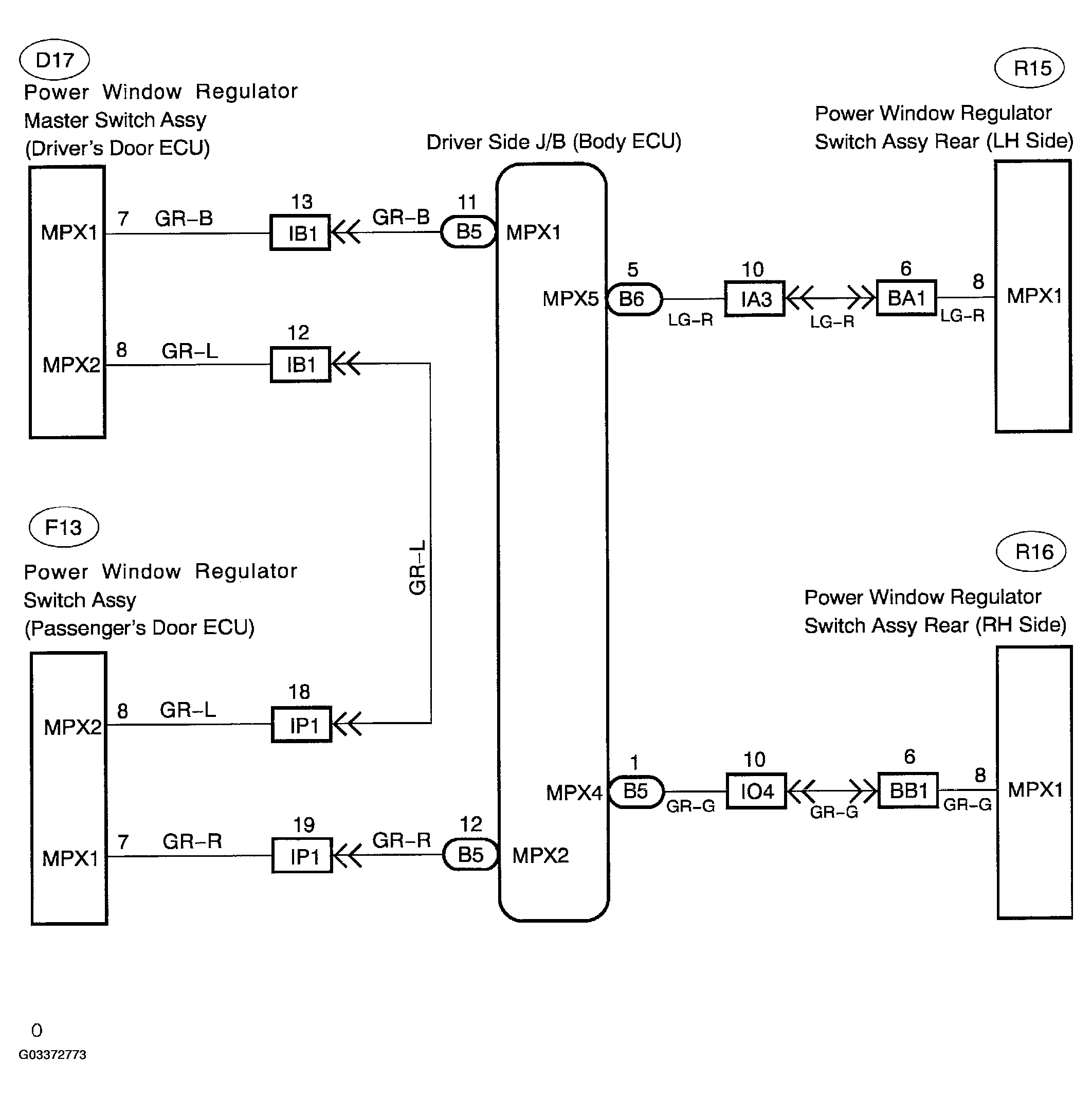

Fig 1: Remote Control Power Window Regulator By Master Switch Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
