Engine Compartment Relay Block

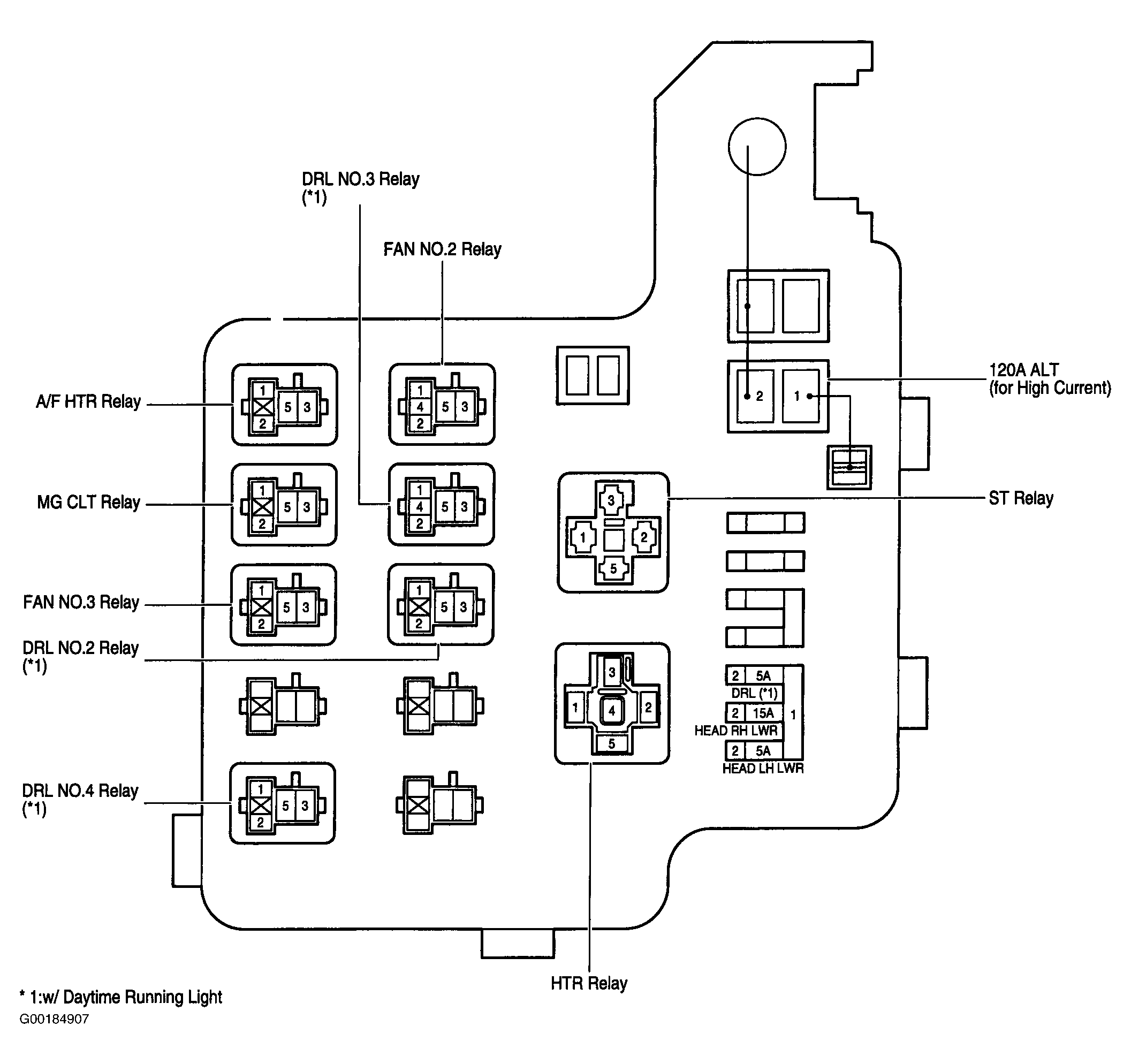

ENGINE COMPARTMENT RELAY BLOCK RELAY IDENTIFICATION
| RELAY DESCRIPTION | ||
|---|---|---|
| DRL No.4 Relay ((1)) | ||
| DRL No.2 Relay ((1)) | ||
| Fan No.3 Relay | ||
| MG CLT Relay | ||
| A/F HTR Relay | ||
| DRL No.3 Relay ((1)) | ||
| Fan No.2 Relay | ||
| 120A ALT (for High Current) | ||
| ST Relay | ||
| HTR Relay | ||
|
ENGINE COMPARTMENT RELAY BLOCK FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 5A | DRL | Headlight (w/ Daytime Running Light) Multiplex Communication System |
| 15A | HEAD LH LWR | Combination Meter Fog Light Headlight (w/ Daytime Running Light) Headlight (w/o Daytime Running Light) Multiplex Communication System |
| 15A | HEAD RH LWR | Headlight (w/ Daytime Running Light) Headlight (w/o Daytime Running Light) Multiplex Communication System |
| 120A | ALT | Automatic Light Control Charging Electronically Controlled Transmission and A/T Indicator Engine Control Illumination Light Auto Turn Off Multiplex Communication System Starting and Ignition Taillight and Stop Light Theft Deterrent and Door Lock Control |
