Component Locations

WARNING: Vehicles are equipped with air bag supplemental restraint system. Before attempting any repairs involving steering column, instrument panel or related components, see SERVICE PRECAUTIONS and DISABLING & ACTIVATING AIR BAG SYSTEM in AIR BAG RESTRAINT SYSTEMS article.

CAUTION: When battery is disconnected, vehicle computer and memory systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. See COMPUTER RELEARN PROCEDURES article in GENERAL INFORMATION before disconnecting battery.

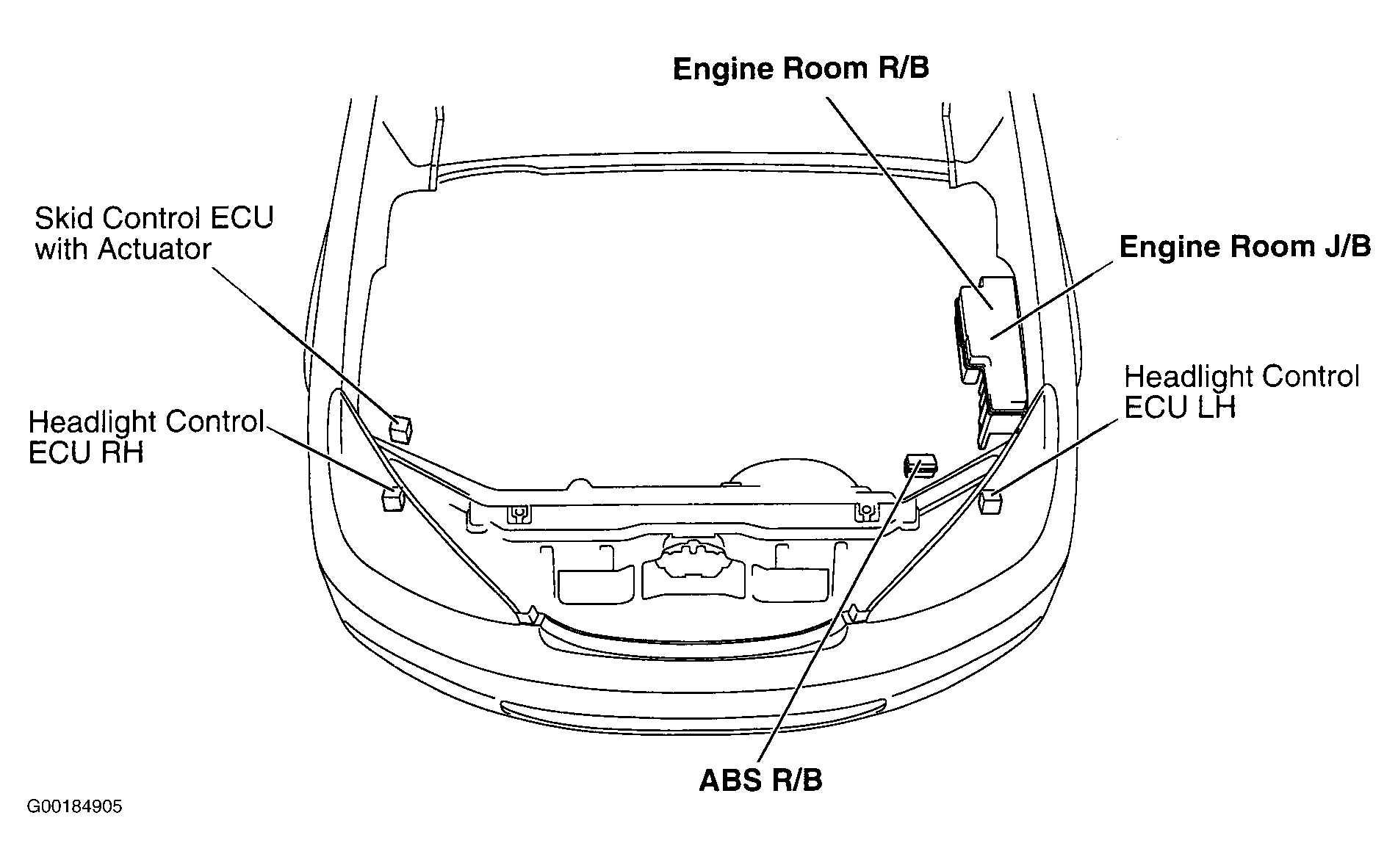

Fig 1: Identifying Engine Compartment Electrical Component Locations

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

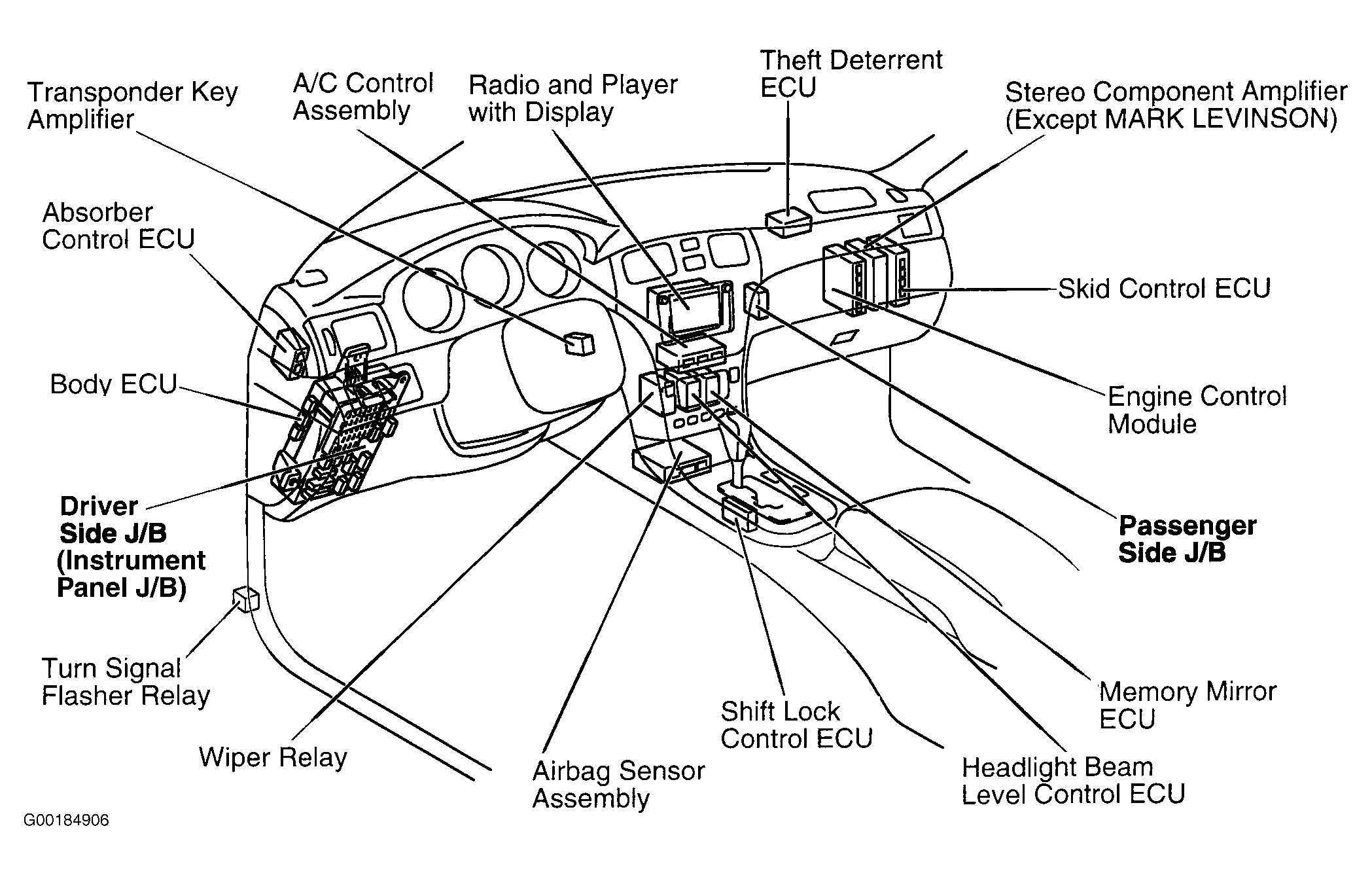

Fig 2: Identifying Instrument Panel Electrical Component And Relay Locations

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL RELAY IDENTIFICATION

RELAY DESCRIPTION
Turn Signal Flasher Relay
Wiper Relay

Fig 3: Vehicle Overview With Relays

VEHICLE OVERVIEW RELAY IDENTIFICATION

RELAY DESCRIPTION
Rear Sunshade Control Relay
