Service Reminder Indicators
To check all the service reminder indicators, see
Fig 1
.

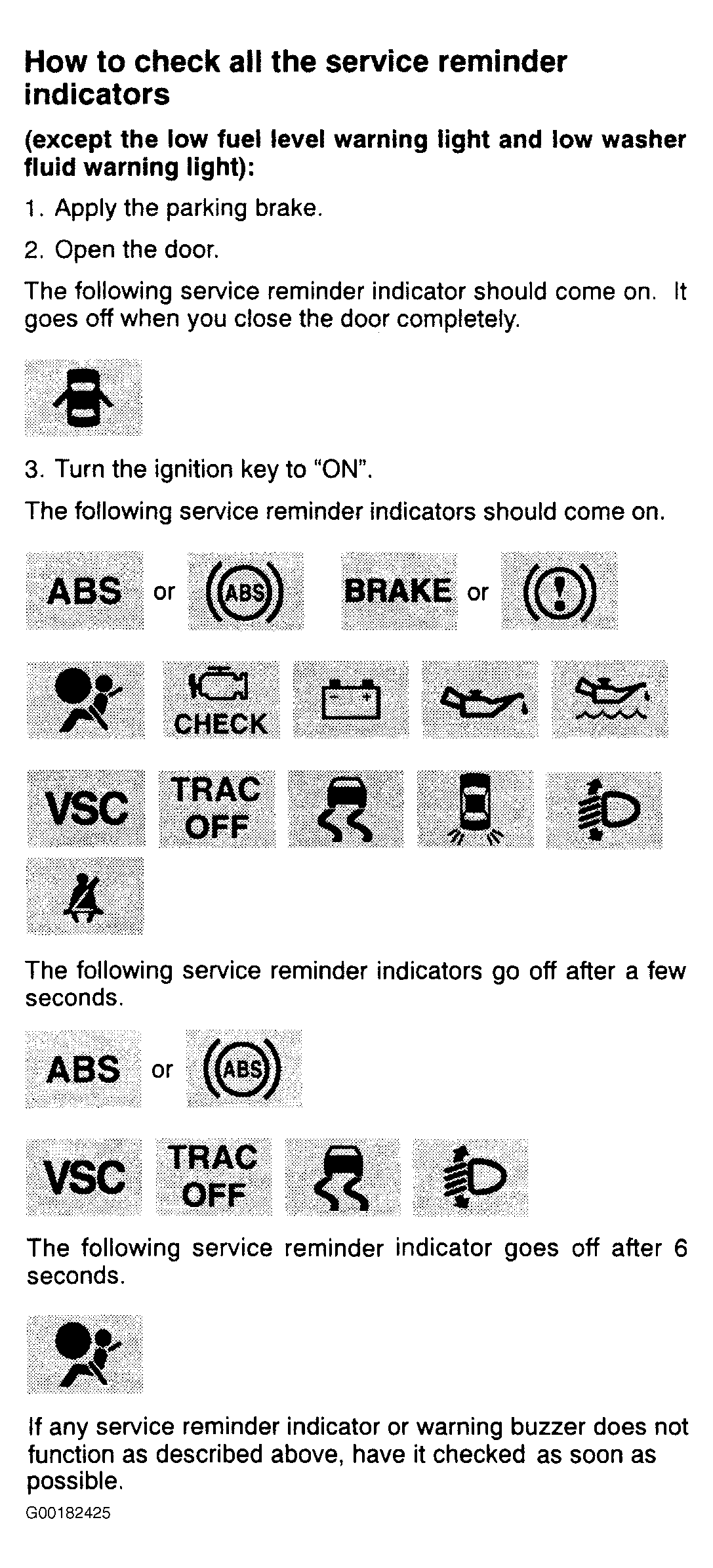

Fig 1: Inspecting Service Reminder Indicators
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
