Repair and Diagnosis
›
Engine Performance
›
Fuel Delivery
›
Fuel Pump ASSY
›
Components
Fuel Pump ASSY: Components

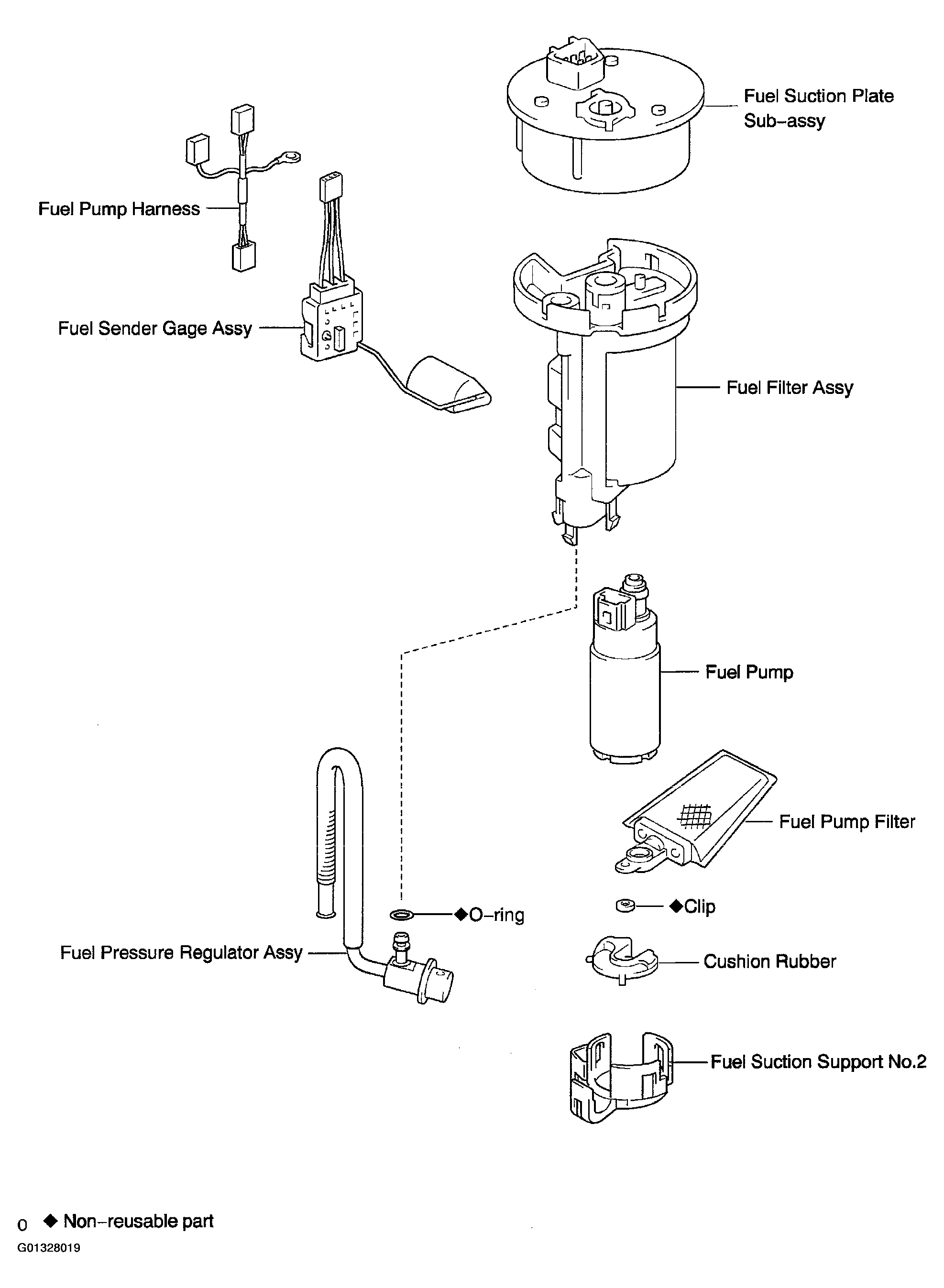

Fig 1: Identifying Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

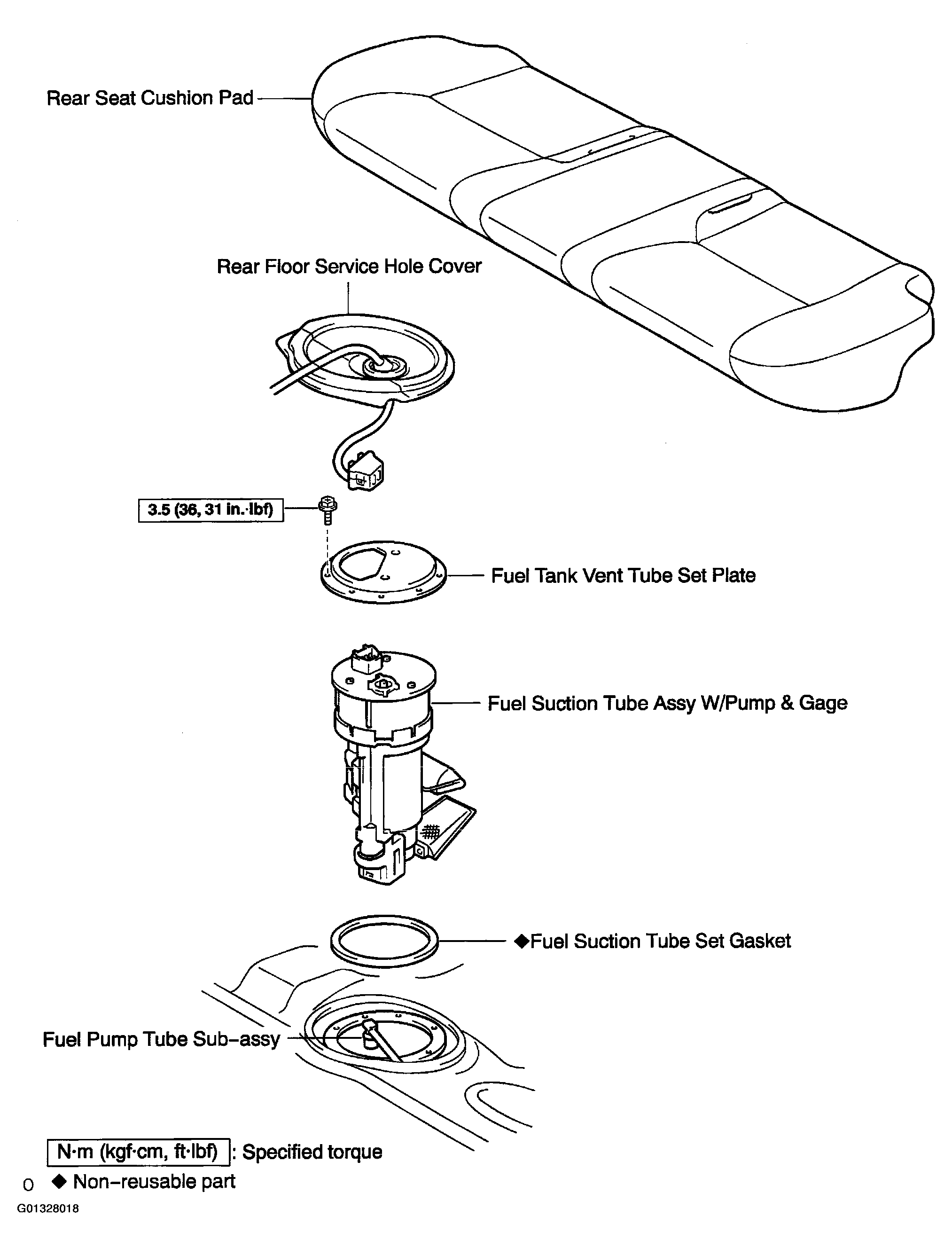

Fig 2: Identifying Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
