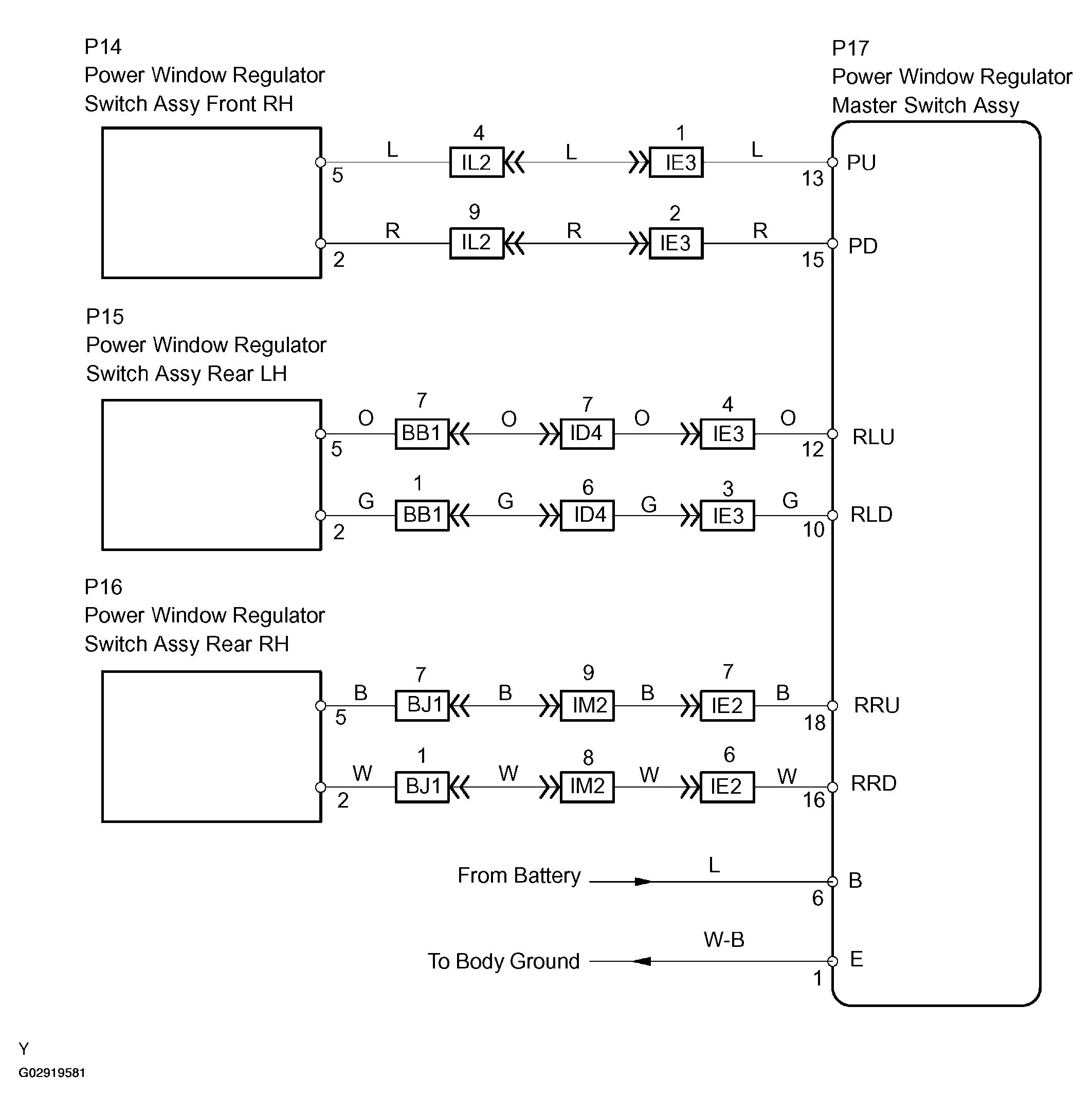

Remote Up/Down Function Does Not Operate: Wiring Diagram

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.
