Section 150 (Hybrid Control System): Location

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

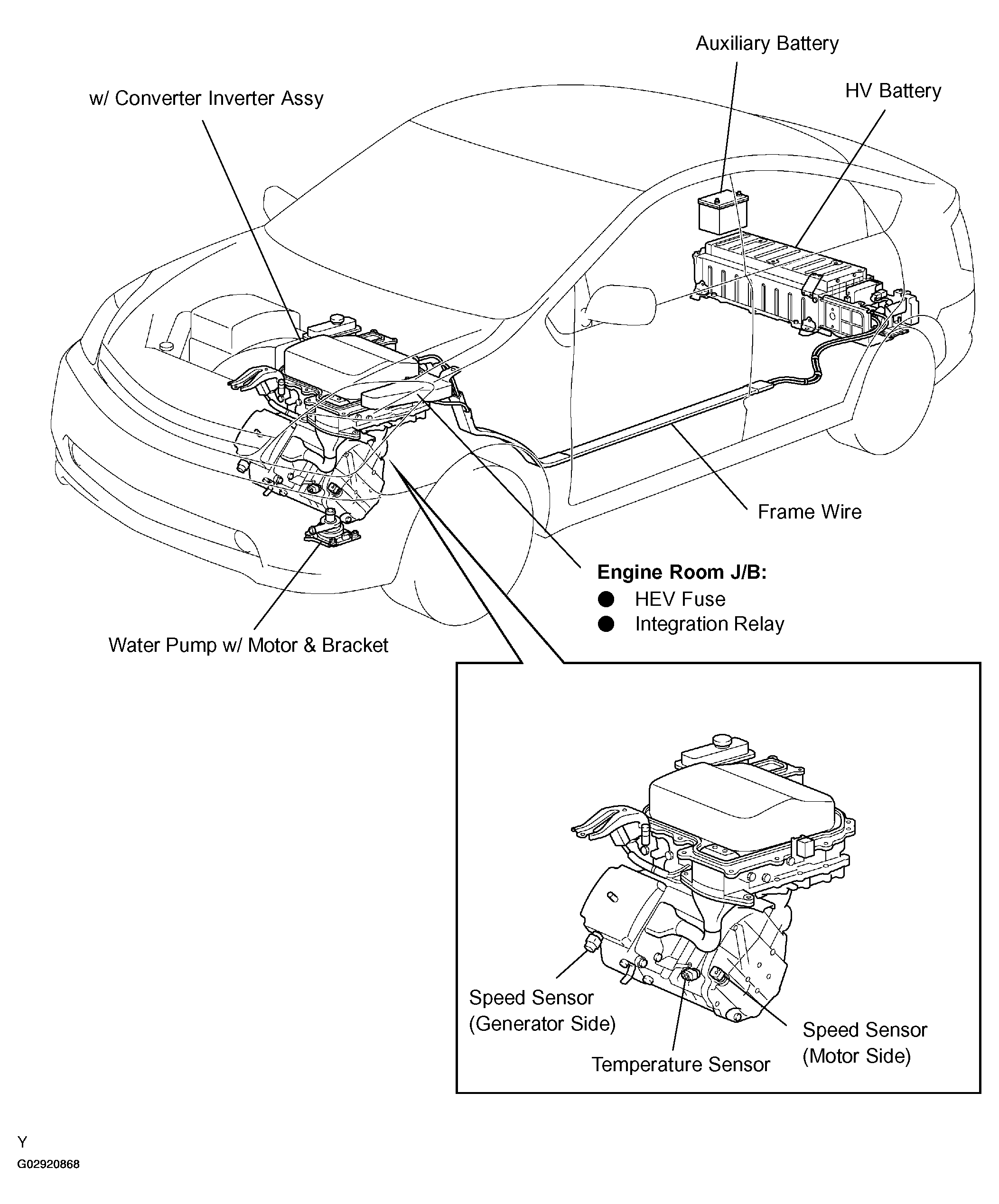

Fig 1: Identifying Hybrid Control System Component Locations

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

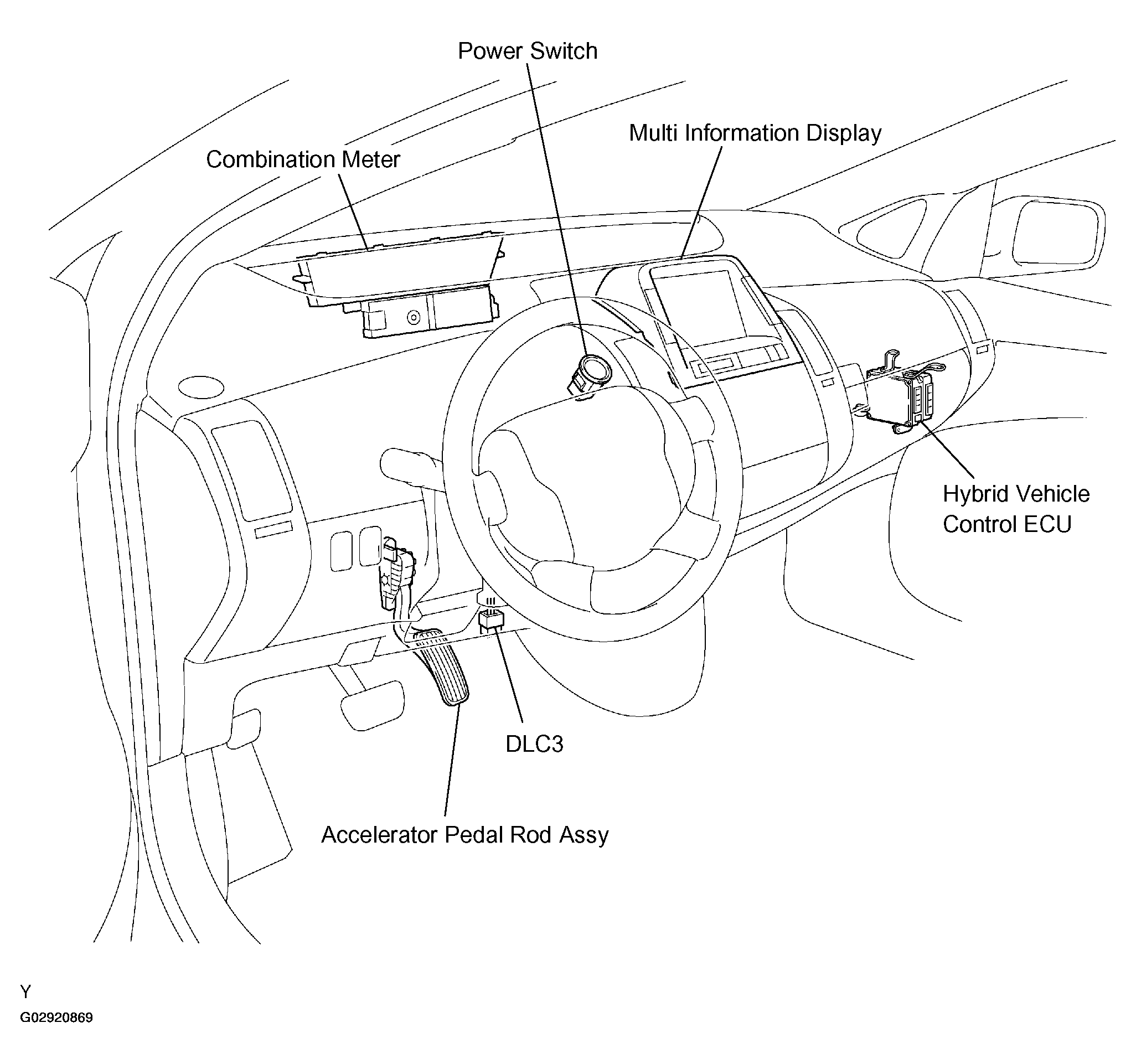

Fig 2: Identifying Hybrid Vehicle Control ECU Component Locations

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

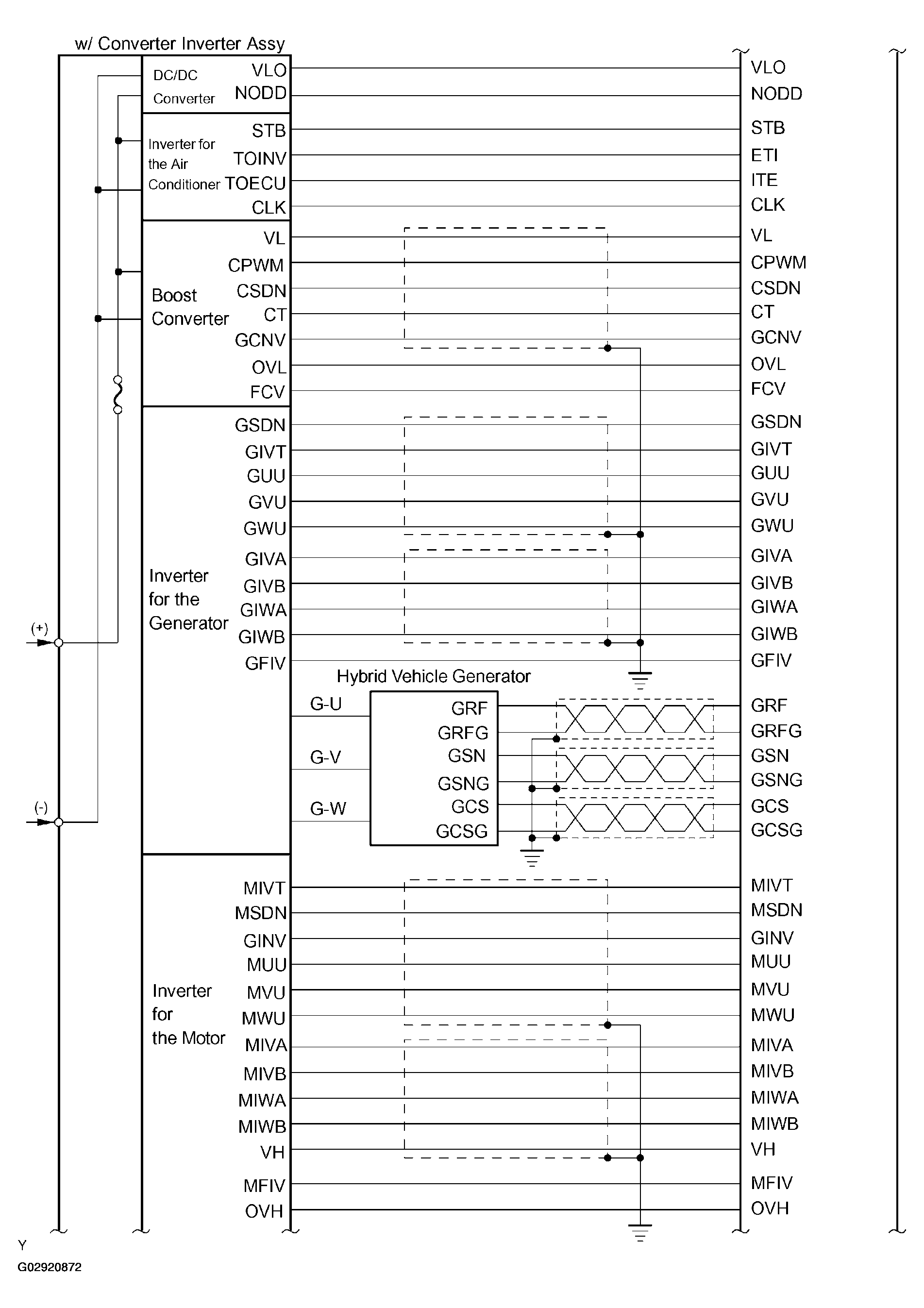

Fig 3: Wiring Diagram - Hybrid Vehicle Control ECU (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

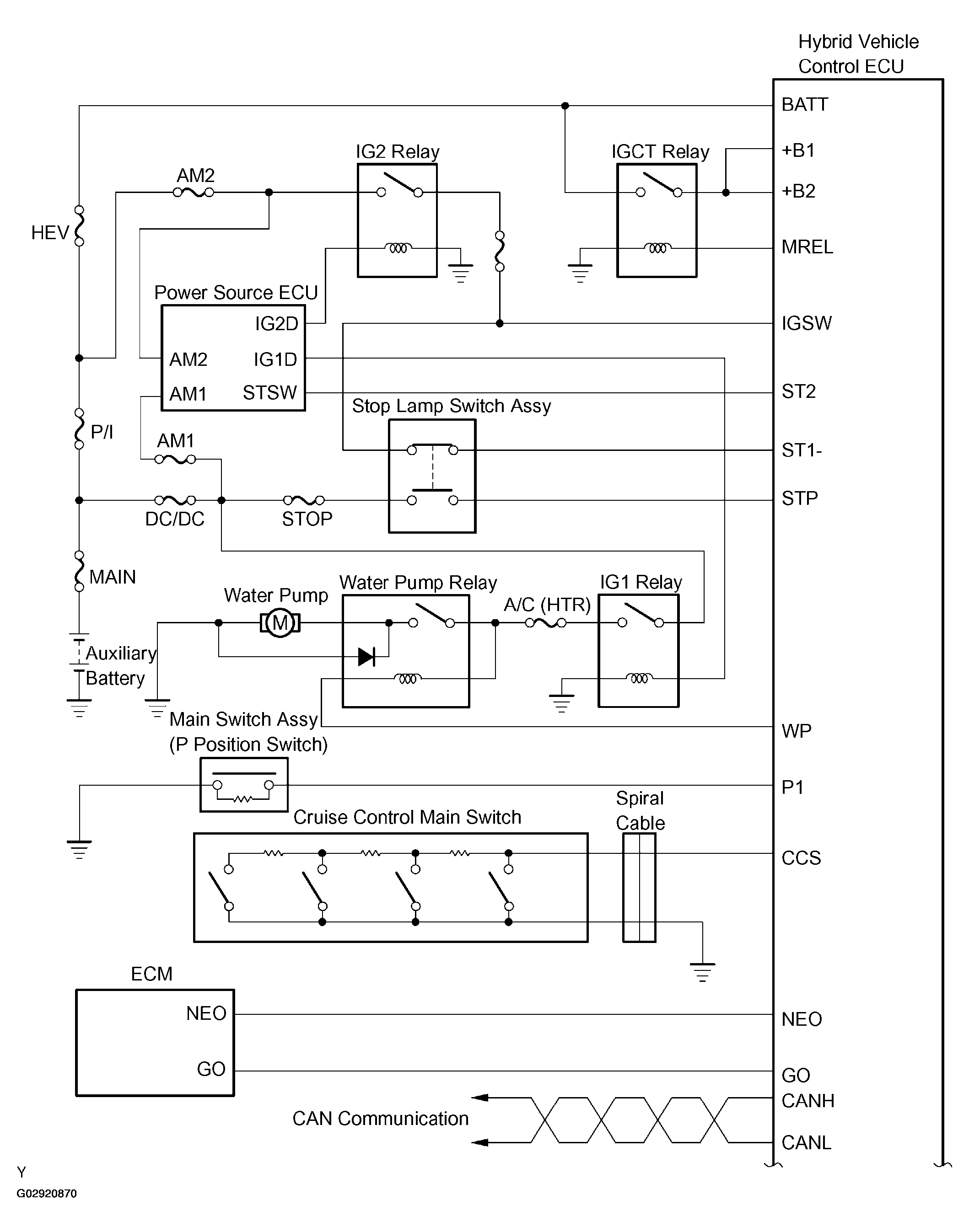

Fig 4: Wiring Diagram - Hybrid Vehicle Control ECU (2 Of 4)

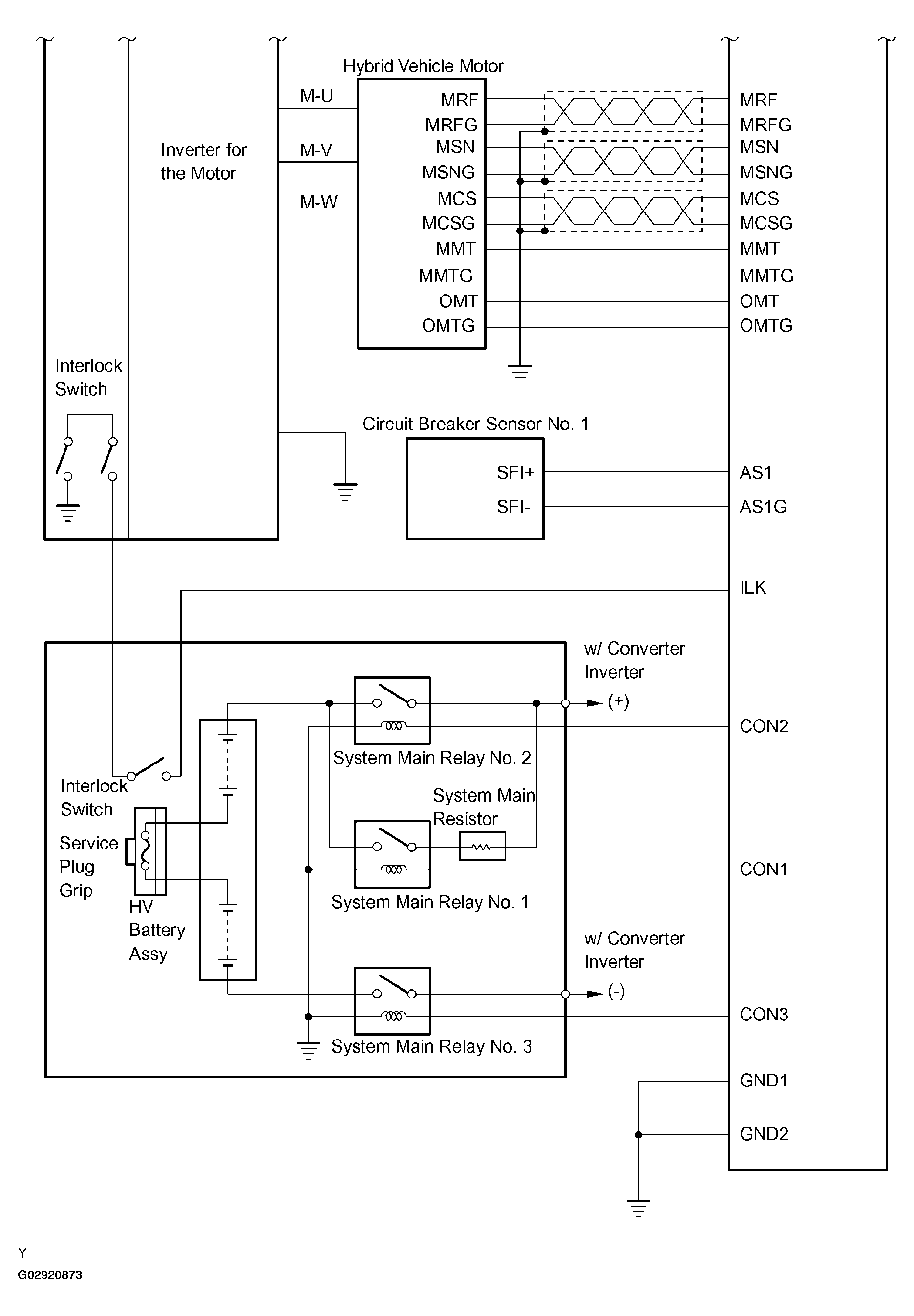

Fig 5: Wiring Diagram - Hybrid Vehicle Control ECU (3 Of 4)

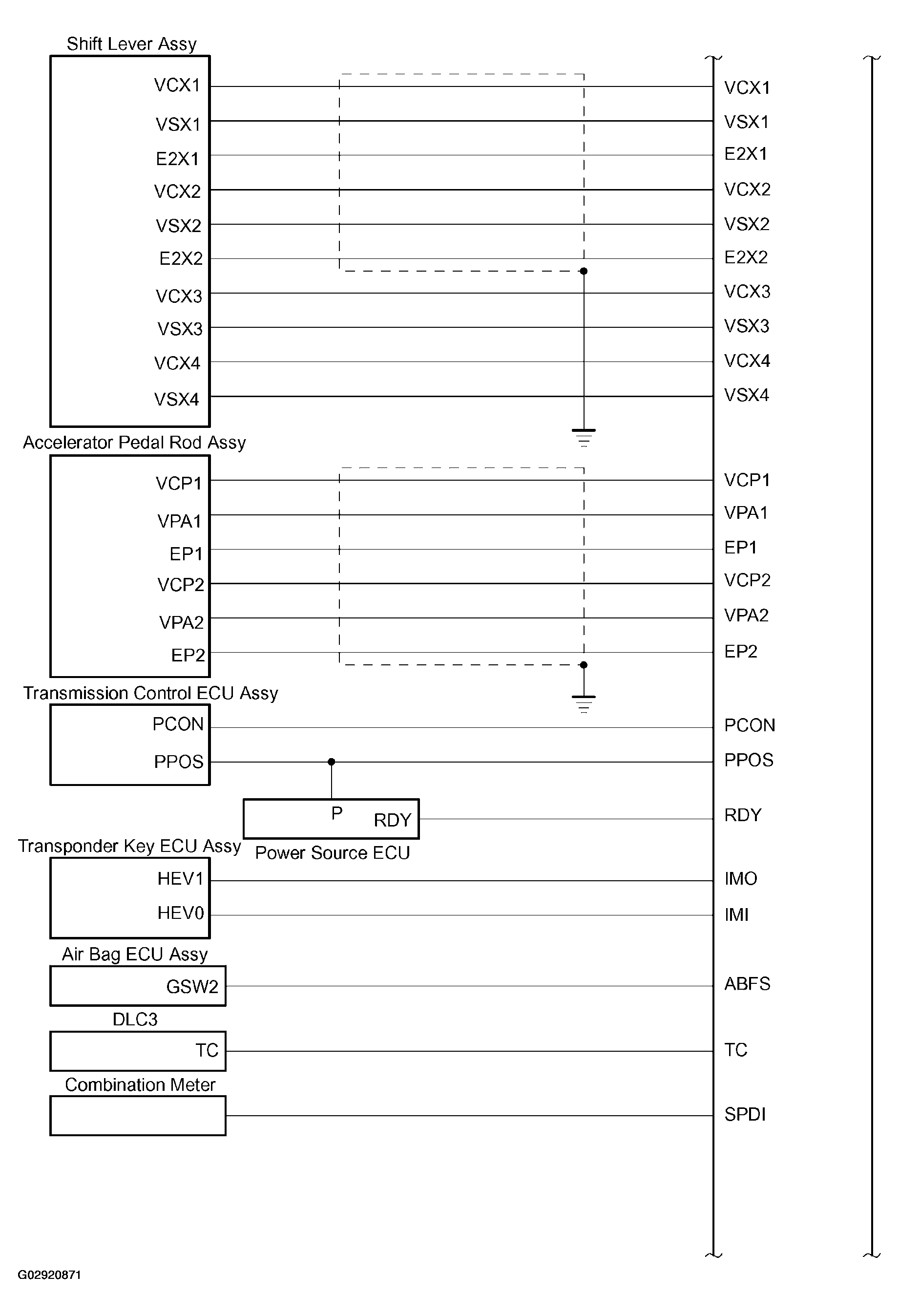

Fig 6: Wiring Diagram - Hybrid Vehicle Control ECU (4 Of 4)
