Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

COMBINATION METER ASSY

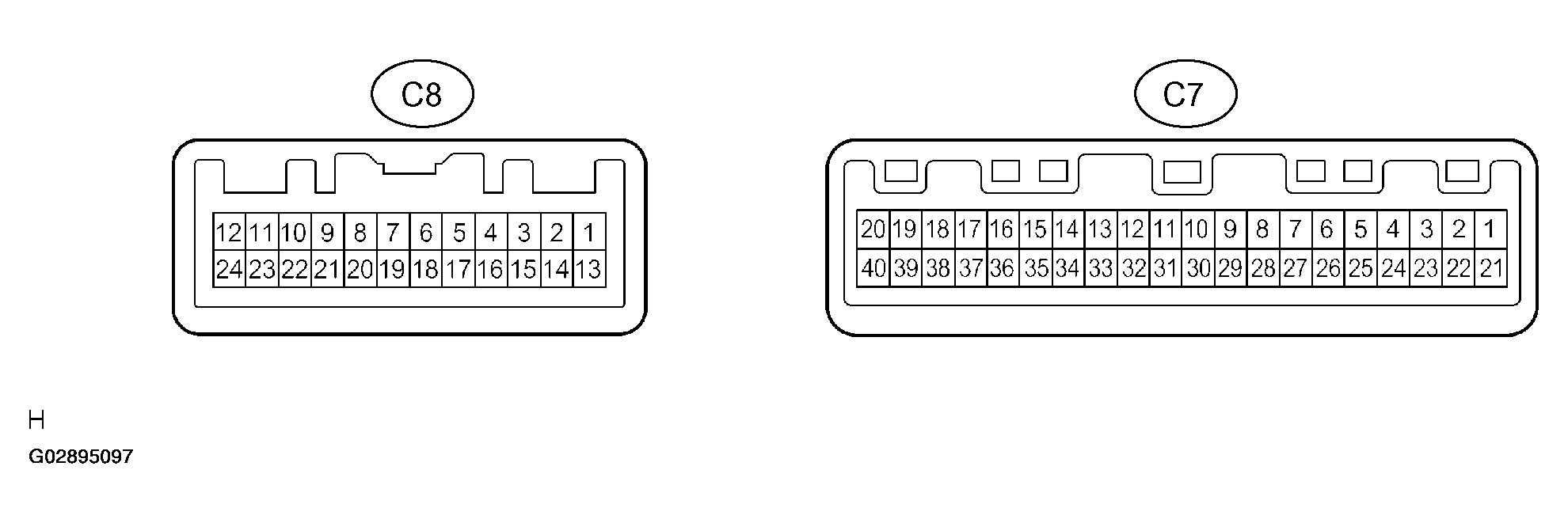

Fig 1: Identifying Combination Meter Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

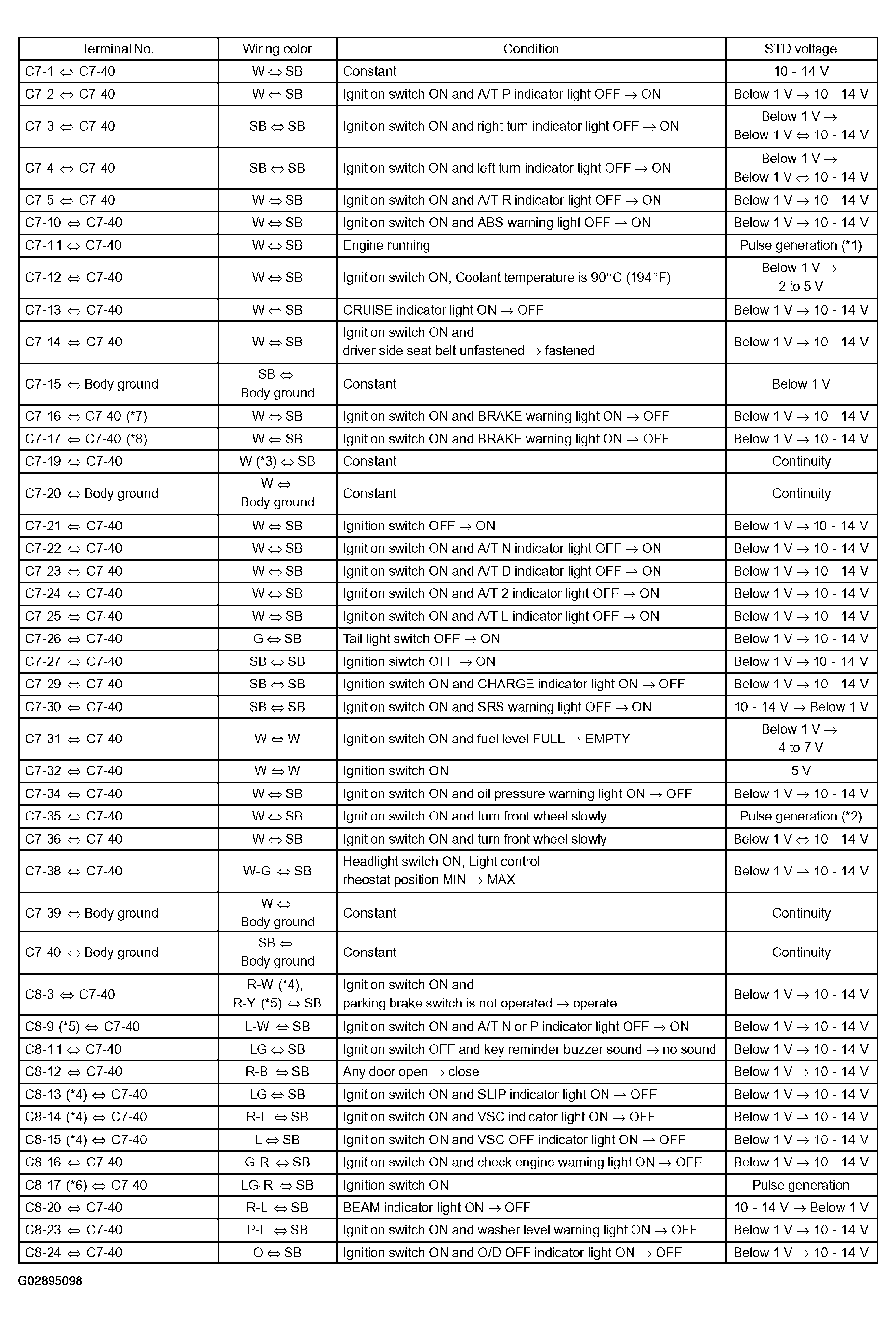

Fig 2: Terminal STD Voltage Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: For (*) information, see tables and footnotes below.

(*1): Reference: Using oscilloscope: Refer to REFERENCE: USING OSCILLOSCOPE .

Fig 3: Wave Form (Engine Idle Speed)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REFERENCE: USING OSCILLOSCOPE (ENGINE IDLE SPEED)

Item	Contents
Tool setting	5 V/DIV, 10 ms/DIV
Vehicle condition	Engine idle speed

(*2): Reference: Using oscilloscope: Refer to REFERENCE: USING OSCILLOSCOPE .

Fig 4: Wave From (Driving At Approx. 20 Km/H)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REFERENCE: USING OSCILLOSCOPE (DRIVING AT APPROX. 20 Km/H)

Item	Contents
Tool setting	5 V/DIV, 20 ms/DIV
Vehicle condition	Driving at approx. 20Km/h

(*3): 2AZ-FE Engine

(*4): w/ VSC

(*5): w/o VSC, w/ ABS

(*6): Automatic A/C

(*7): w/o VSC

(*8): w/o ABS

CLOCK ASSY

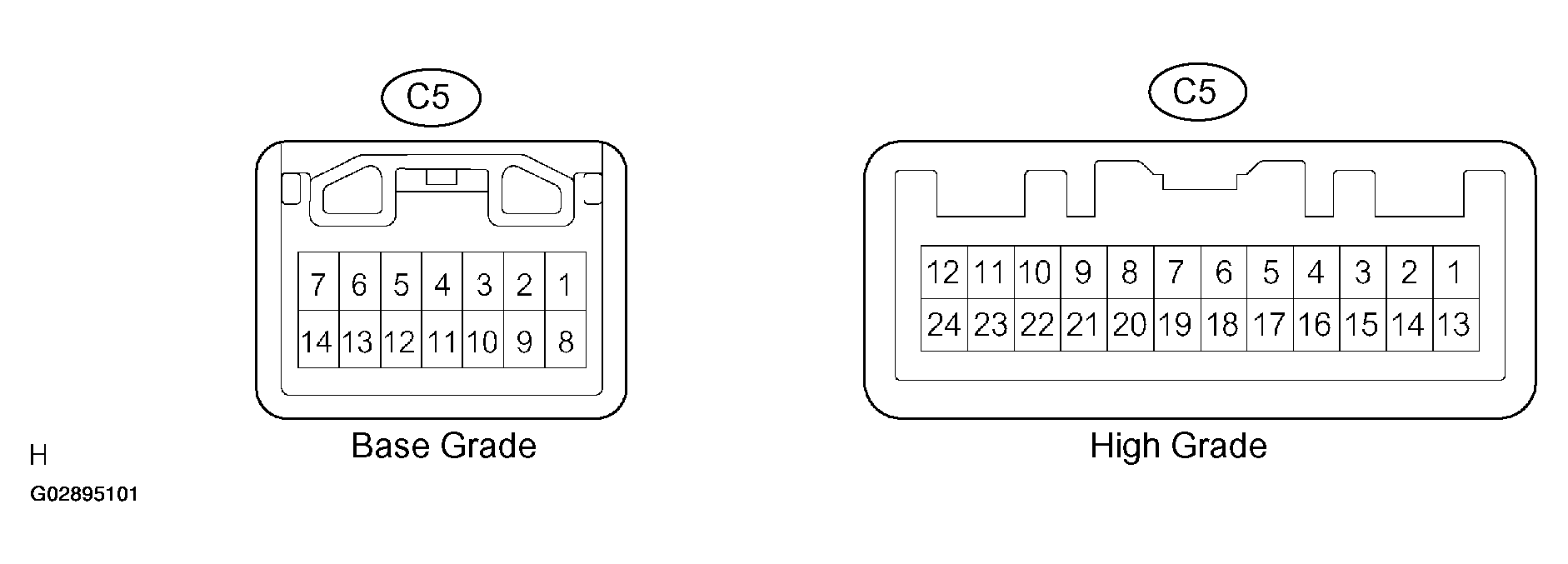

Fig 5: Identifying Clock Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. BASE GRADE

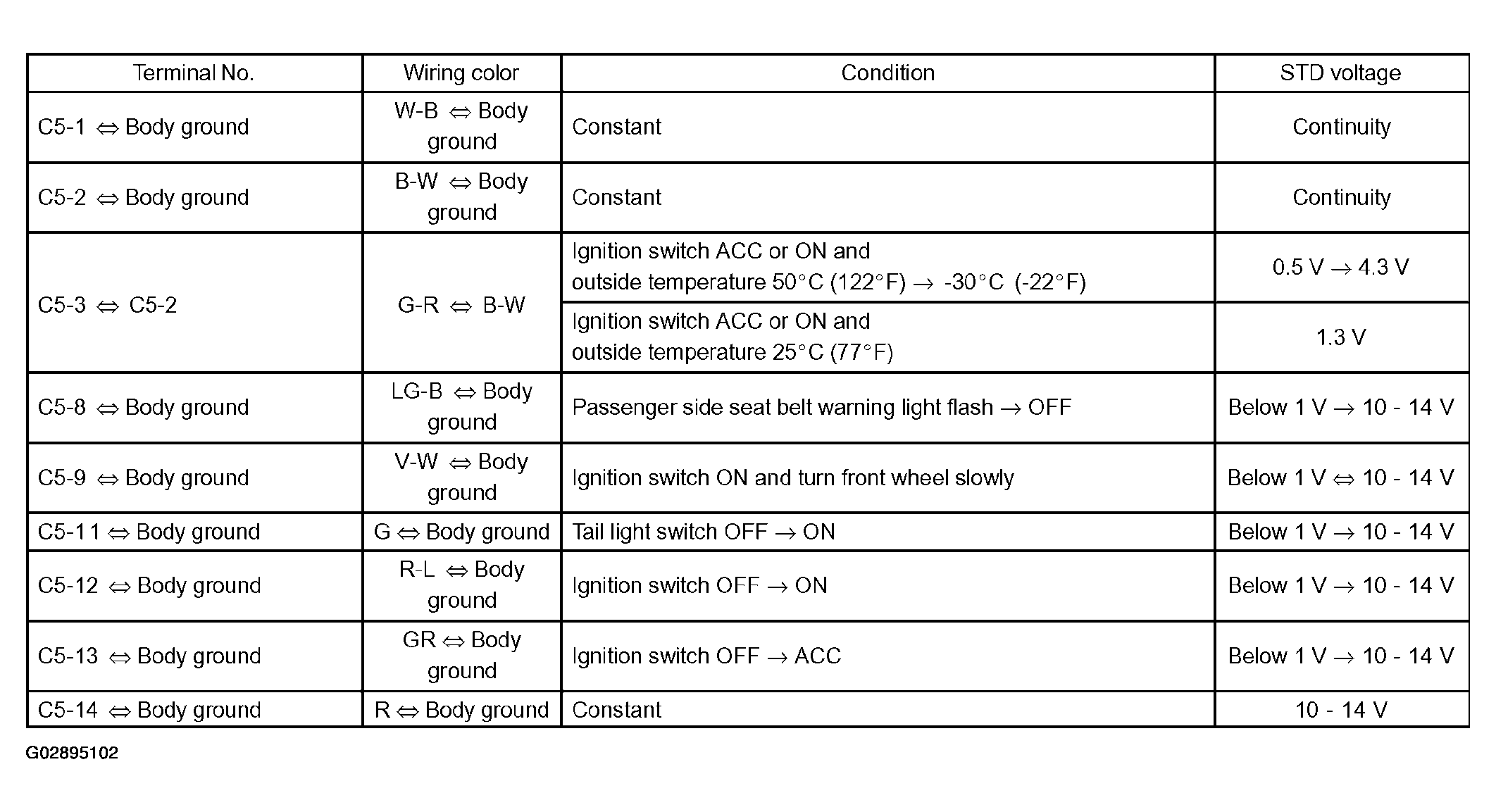

  Fig 6: Base Grade Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. HIGH GRADE

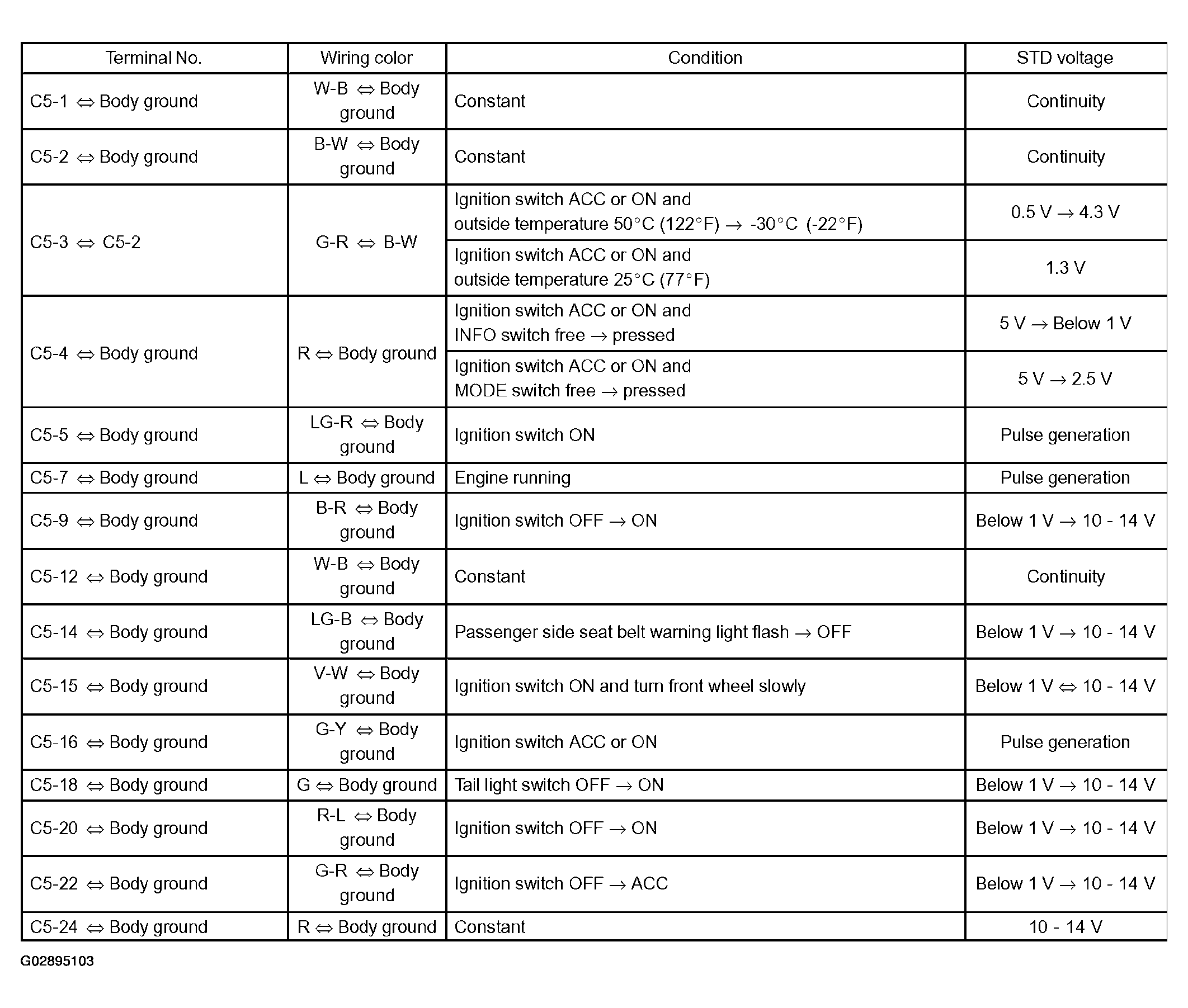

  Fig 7: High Grade Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
