Terminals Of ECM

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

ECM

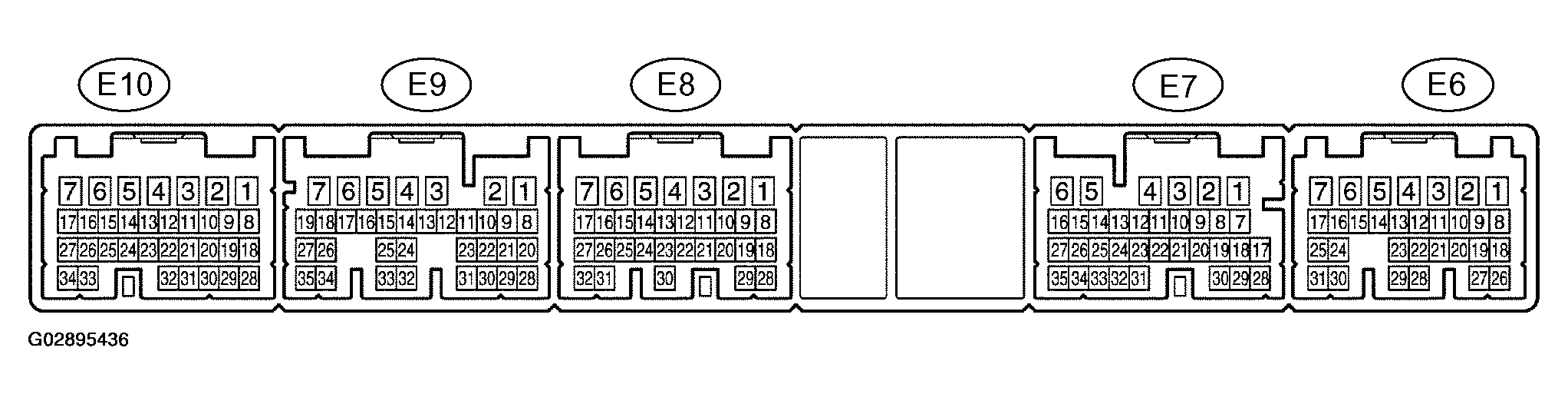

Fig 1: Identifying Terminals Of ECM Connector

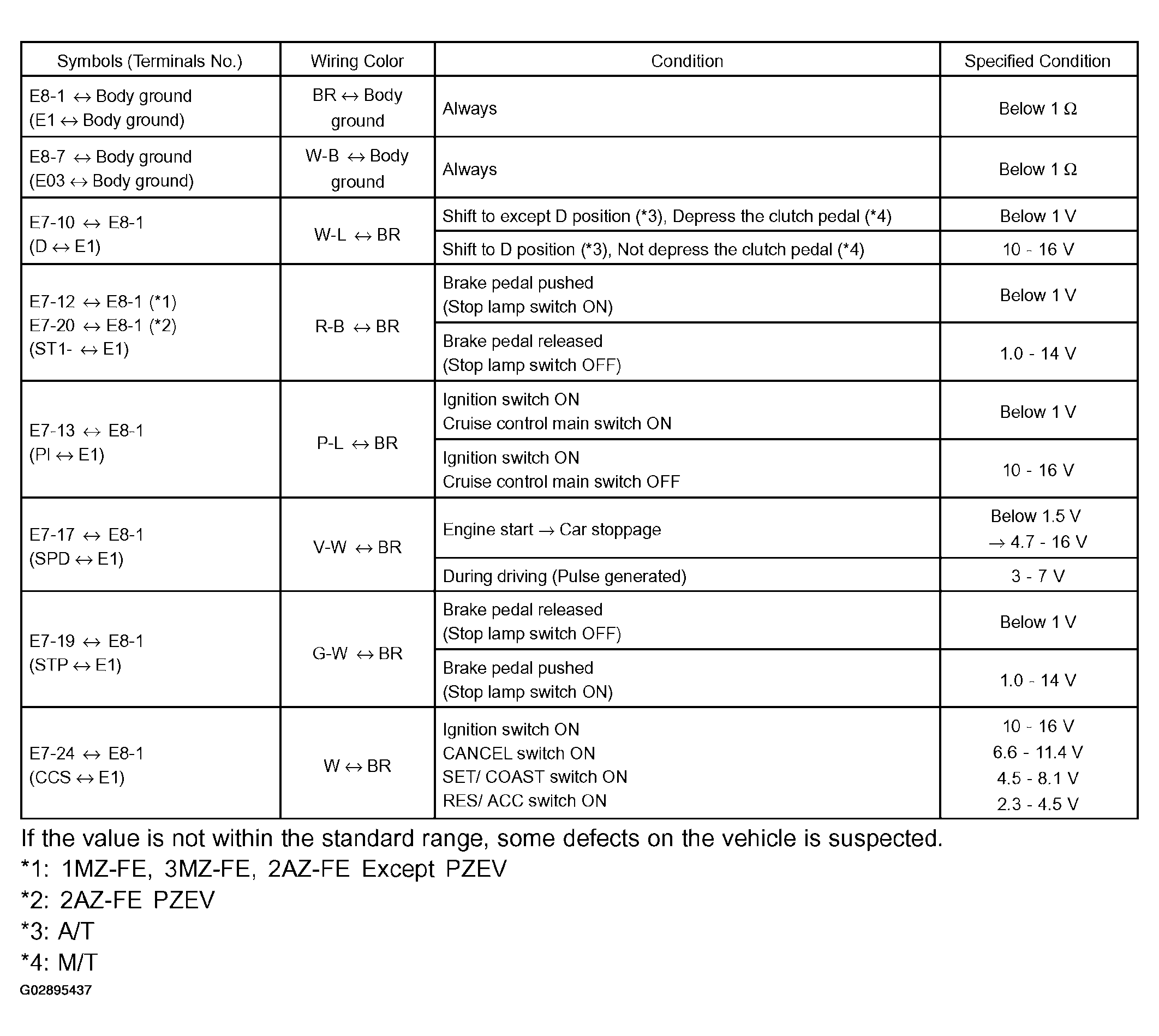

Fig 2: Specification Wiring Color Condition
