DATA LIST
HINT:

According to the DATA LIST displayed on the hand-held tester, you can read the value and status of the switch, sensor, actuator and so on without parts removal. Reading the DATA LIST as the first step of troubleshooting is one of the methods to shorten labor time.
1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch to the ON position.
3. From the display on the tester, read the "DATA LIST".

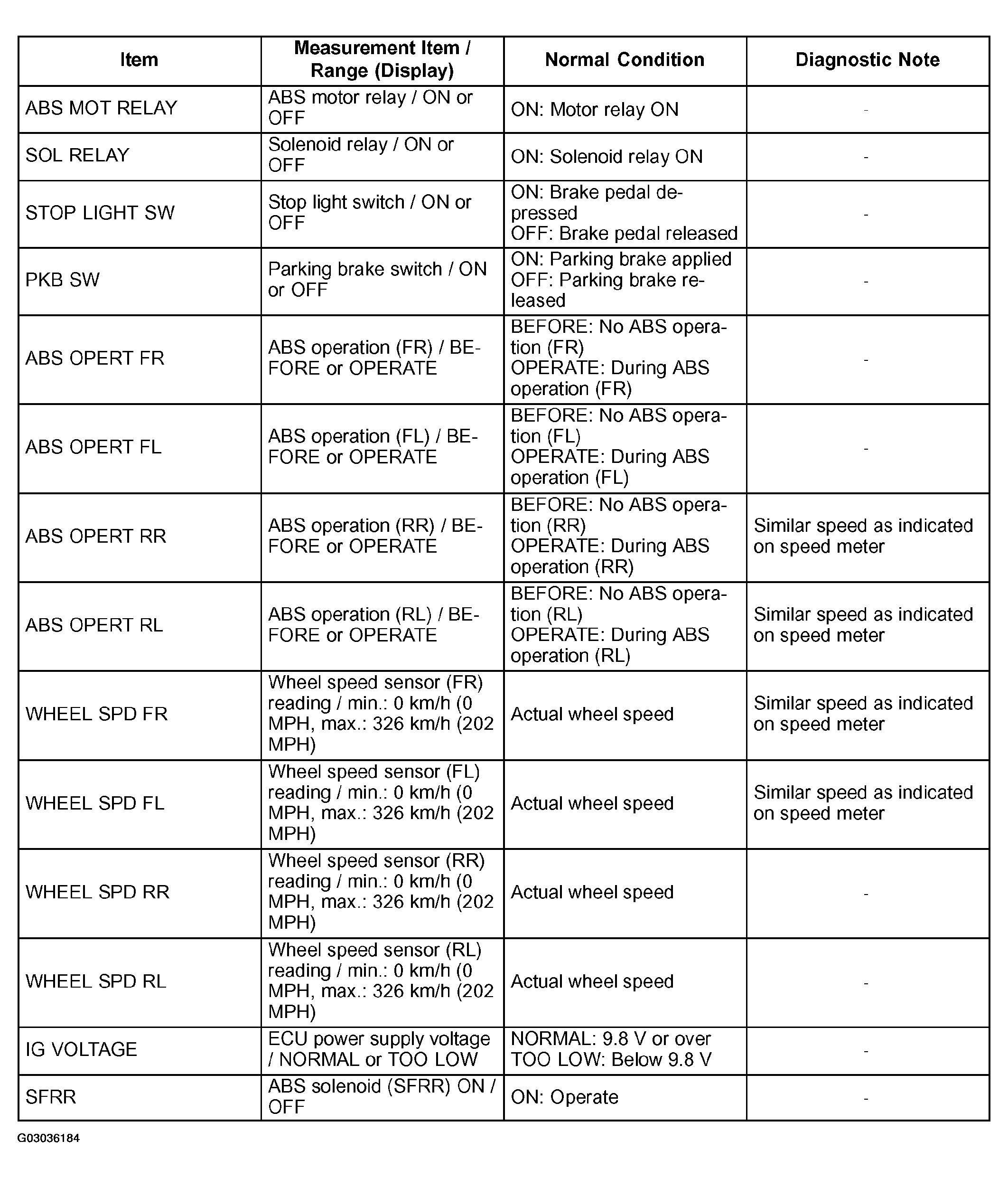

Fig 1: Identifying Data List (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

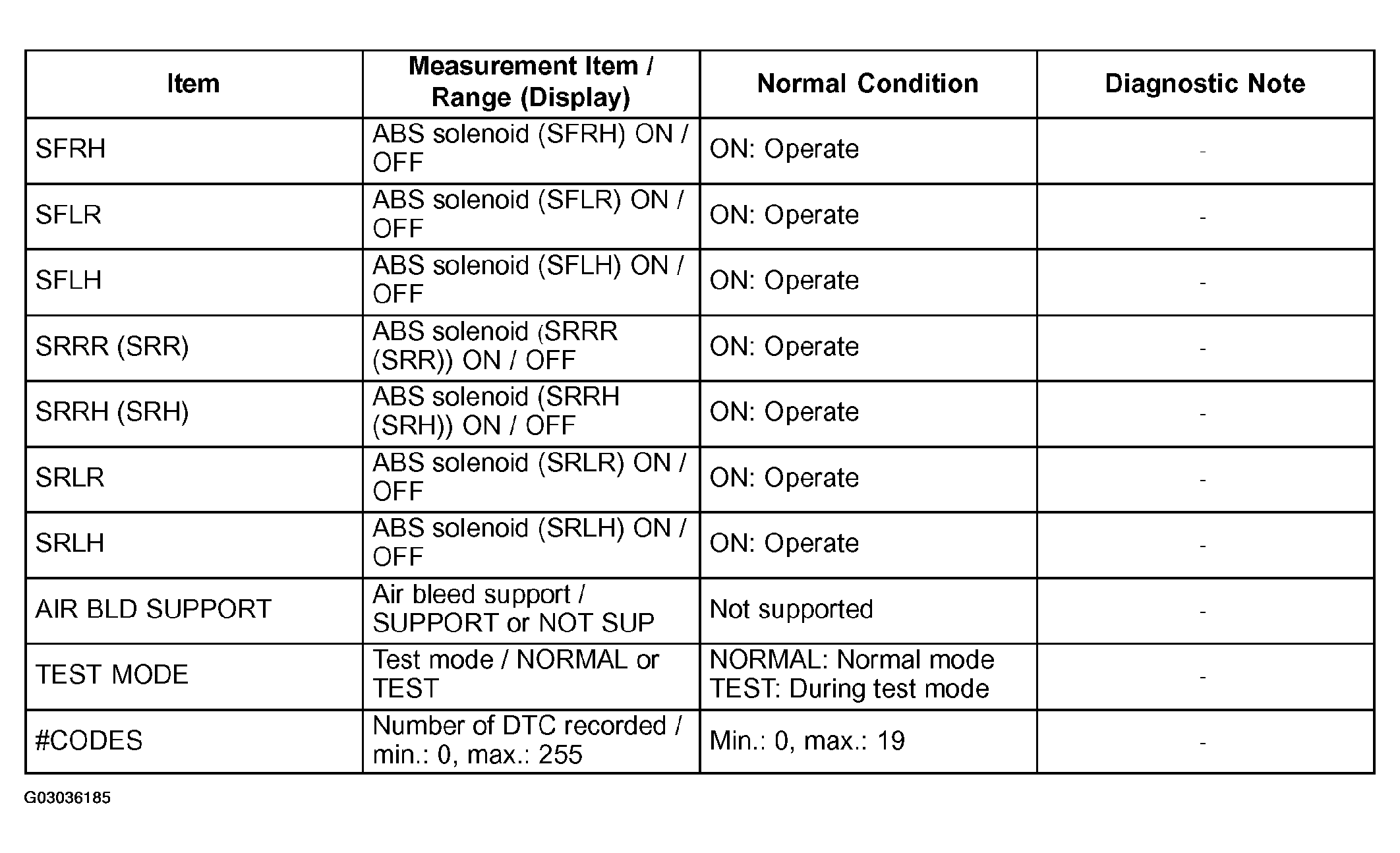

Fig 2: Identifying Data List (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ACTIVE TEST
HINT:

Performing the ACTIVE TEST using the hand-held tester allows the relay, actuator and so on to operate without parts removal. Performing the ACTIVE TEST as the first step of troubleshooting is one of the methods to shorten labor time.

It is possible to display the DATA LIST during the ACTIVE TEST.
1. Connect the Hand-held tester to the DLC3.
2. Turn the ignition switch to the ON position.
3. According to the display on the tester, perform the "ACTIVE TEST".
HINT:

Ignition switch must be turned to the ON position to proceed to the ACTIVE TEST using the hand-held tester.

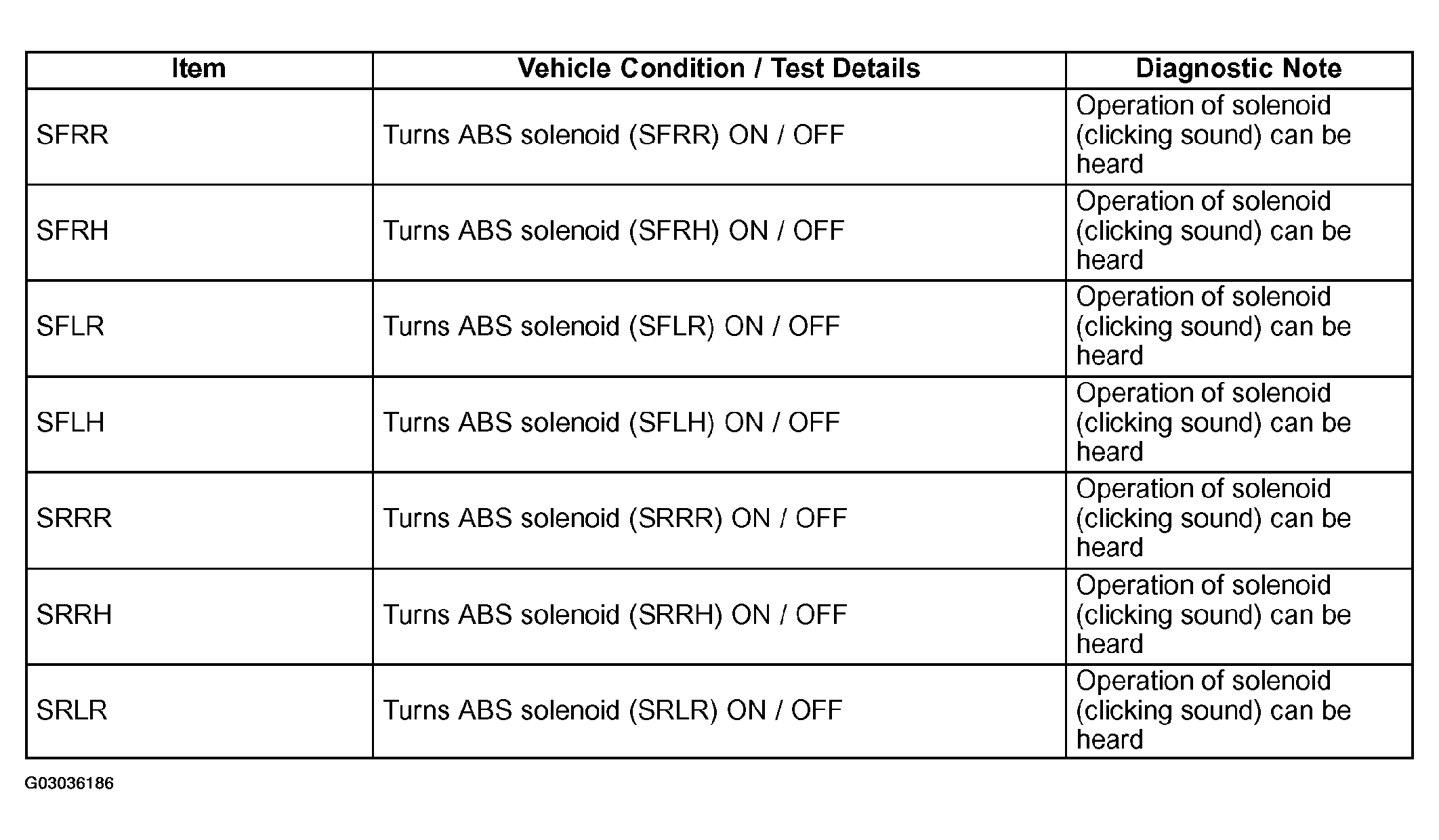

Fig 3: Identifying Active Test Reference Table (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

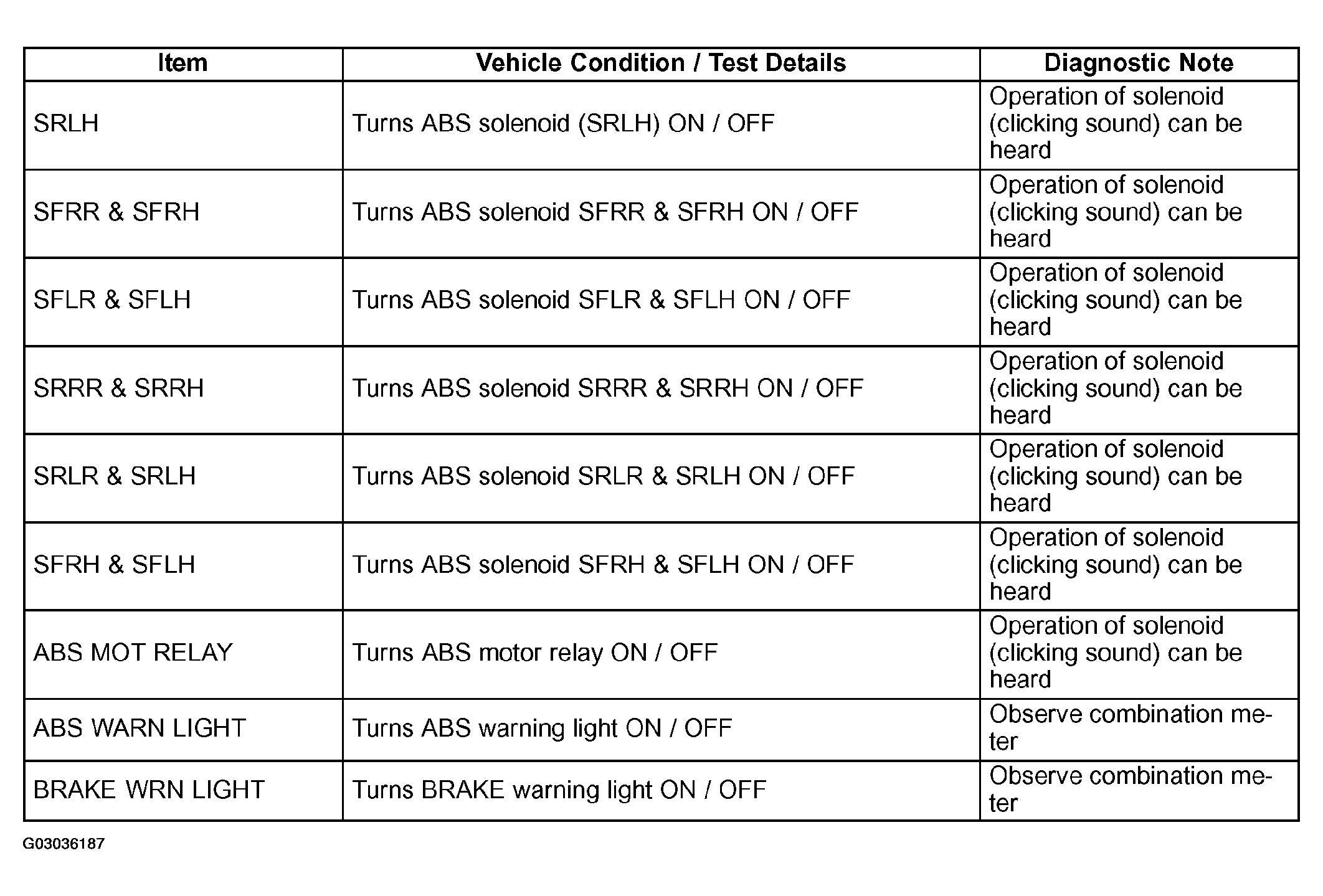

Fig 4: Identifying Active Test Reference Table (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
