Section 395 (Headlamp Dimmer Switch Assembly): Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Installation is in the reverse order of removal.

  1. REMOVE STEERING COLUMN COVER LWR (SEE  OVERHAUL  )
  2. REMOVE STEERING COLUMN COVER (SEE  OVERHAUL  )
  3. REMOVE HEADLAMP DIMMER SWITCH ASSY
    1. Disconnect the connector.
    2. Remove the 2 screws and the headlamp dimmer switch assy.

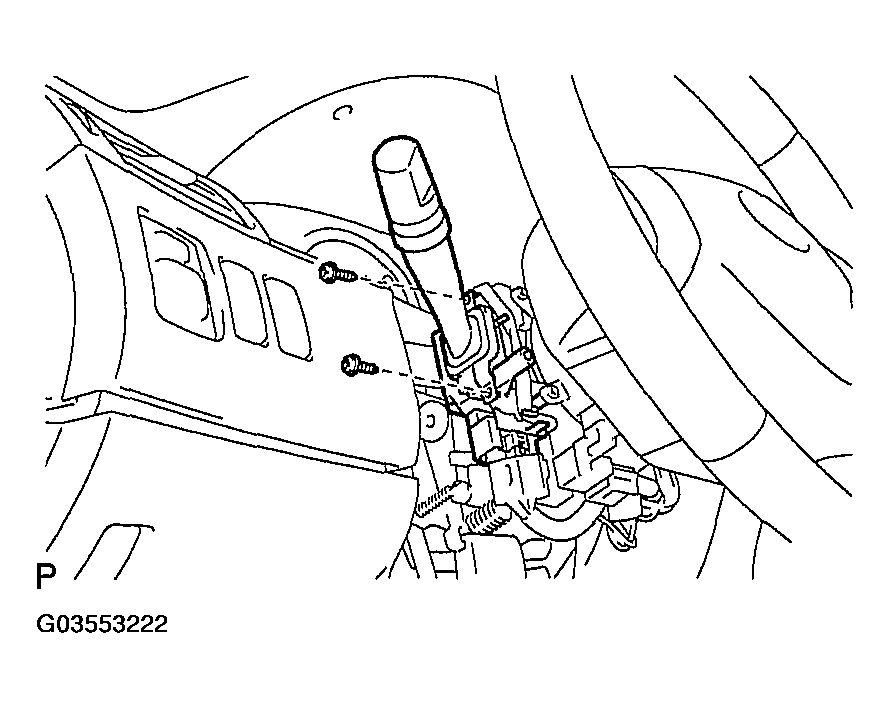

      Fig 1: Removing Headlamp Dimmer Switch Assy
      G03553222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
