Door Module-Driver C2 - Black 12 Way Connector End View

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

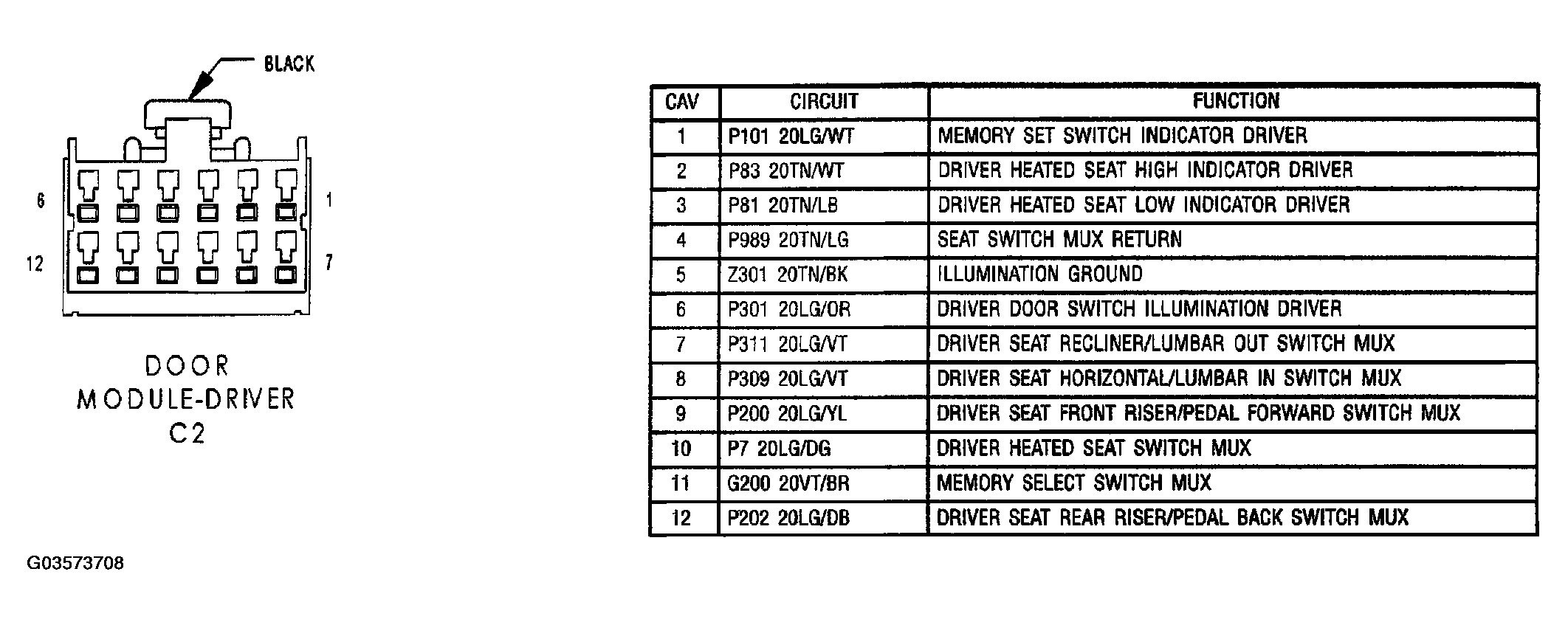

Fig 1: Driver Door Module Connector End View (C2)

Courtesy of DAIMLERCHRYSLER CORP.
