Section 485 (Audio & Visual System): Components

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

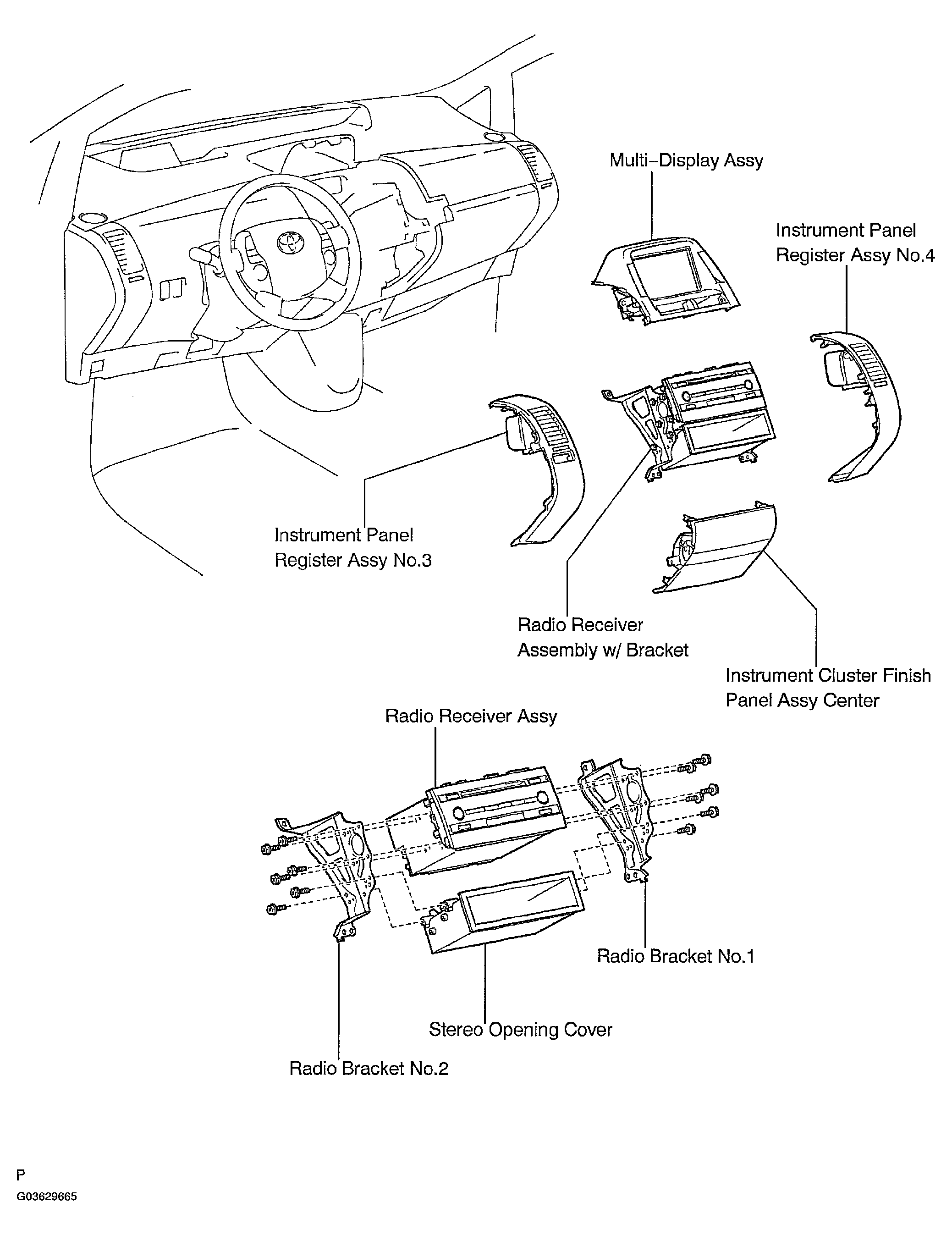

Fig 1: Audio & Visual System Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

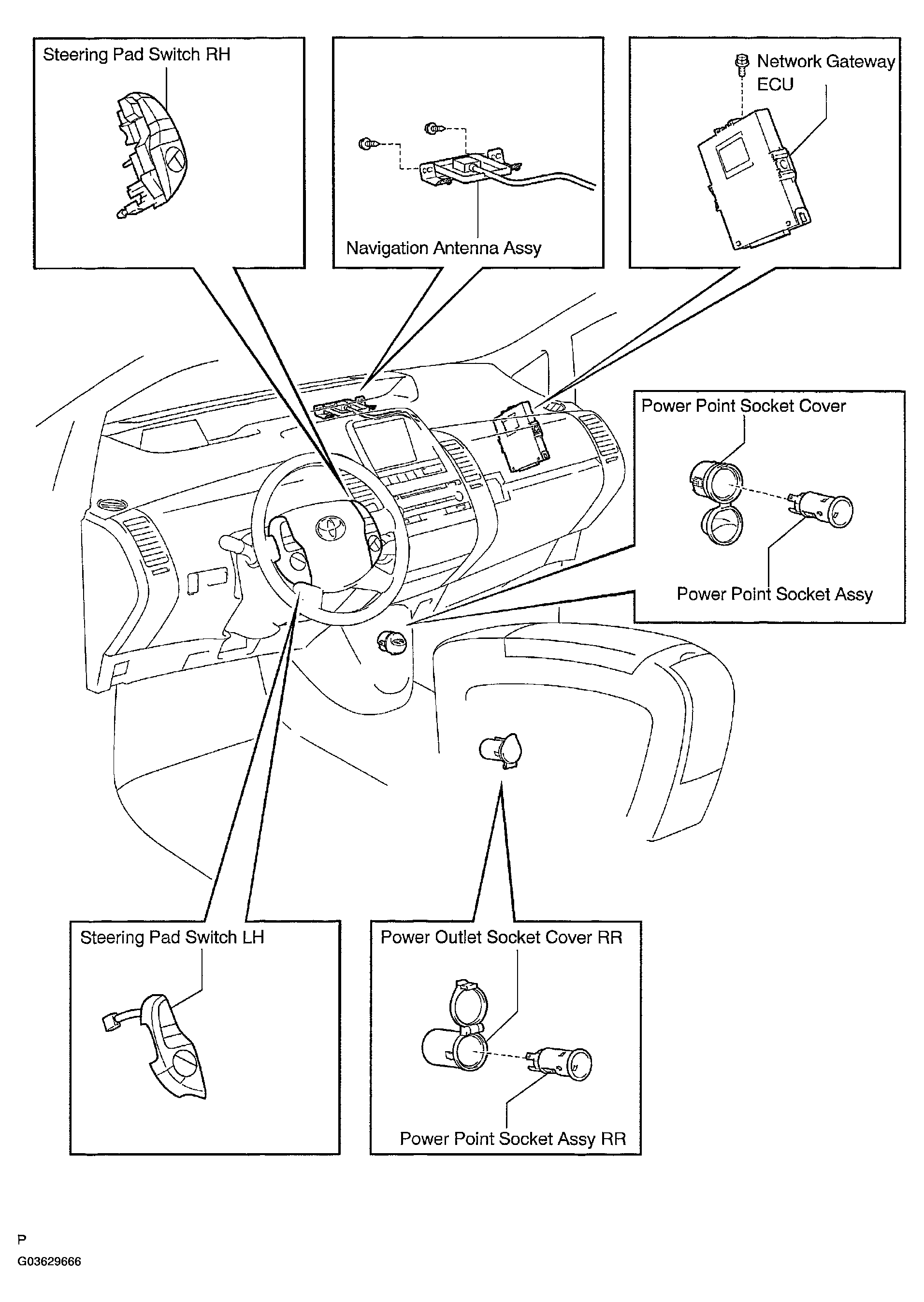

Fig 2: Audio & Visual System Components (2 Of 3)

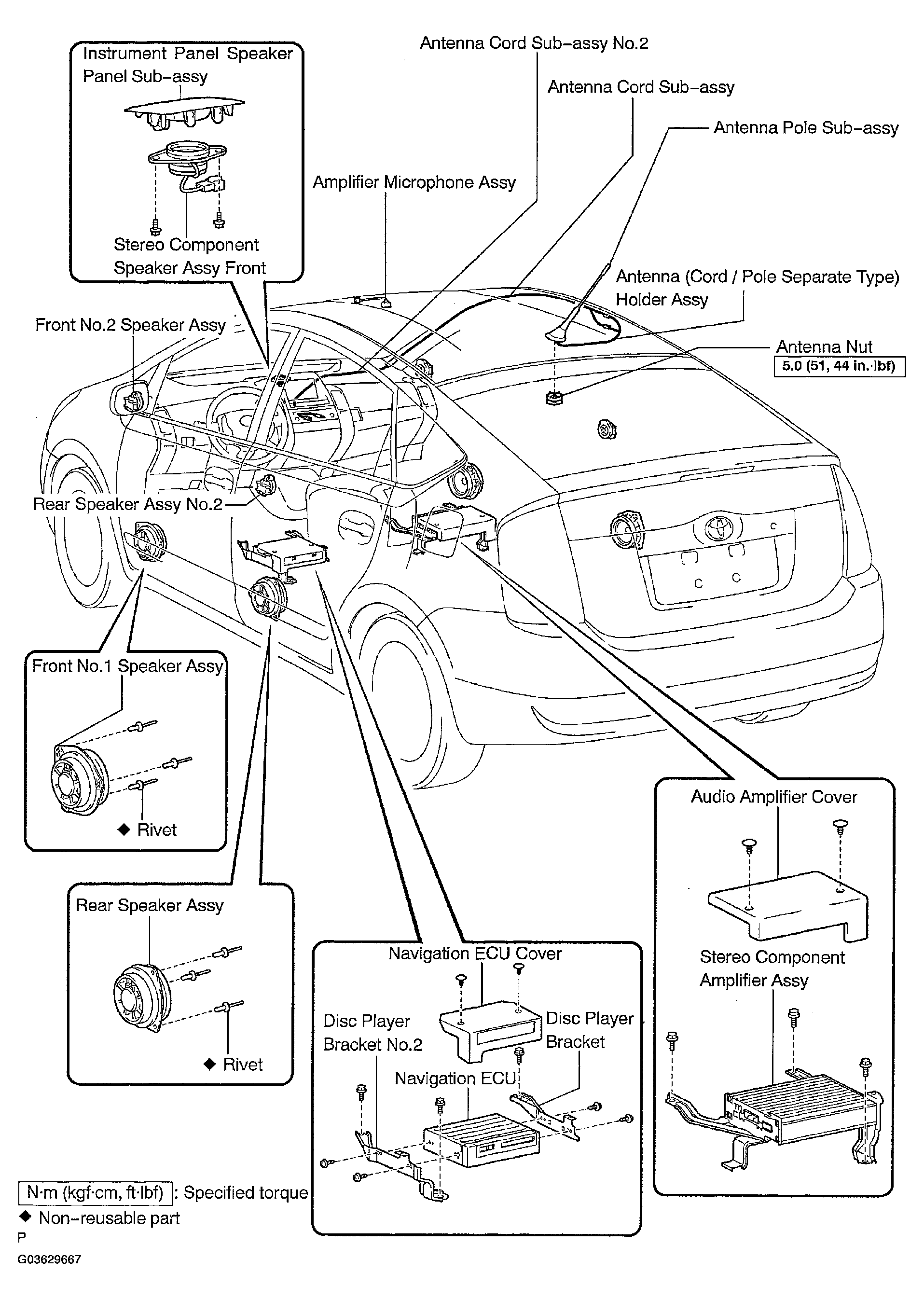

Fig 3: Audio & Visual System Components (3 Of 3)
