Section 76 (Engine Mechanical): Adjustments: Notes

WARNING: This page is about a different car, the 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

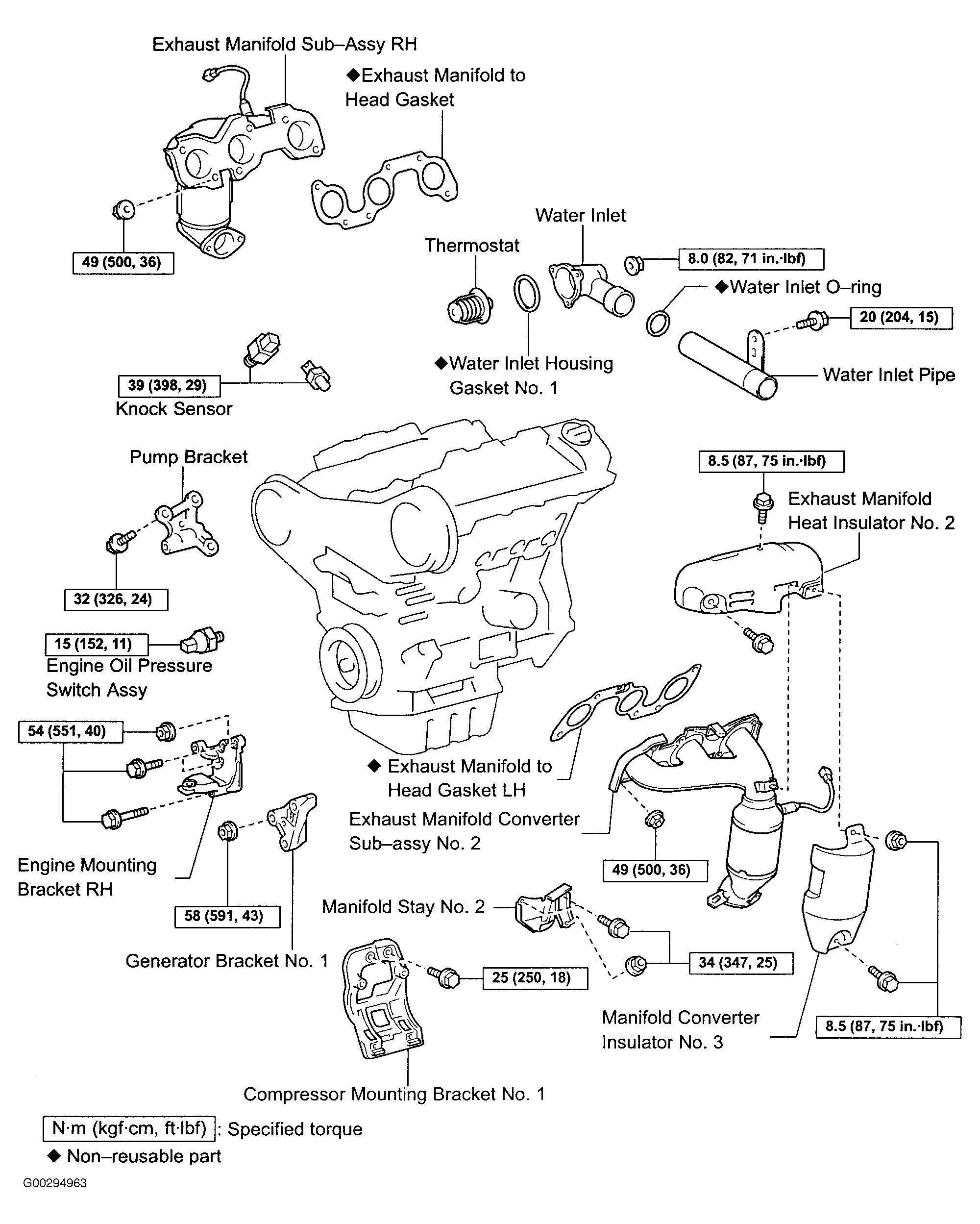

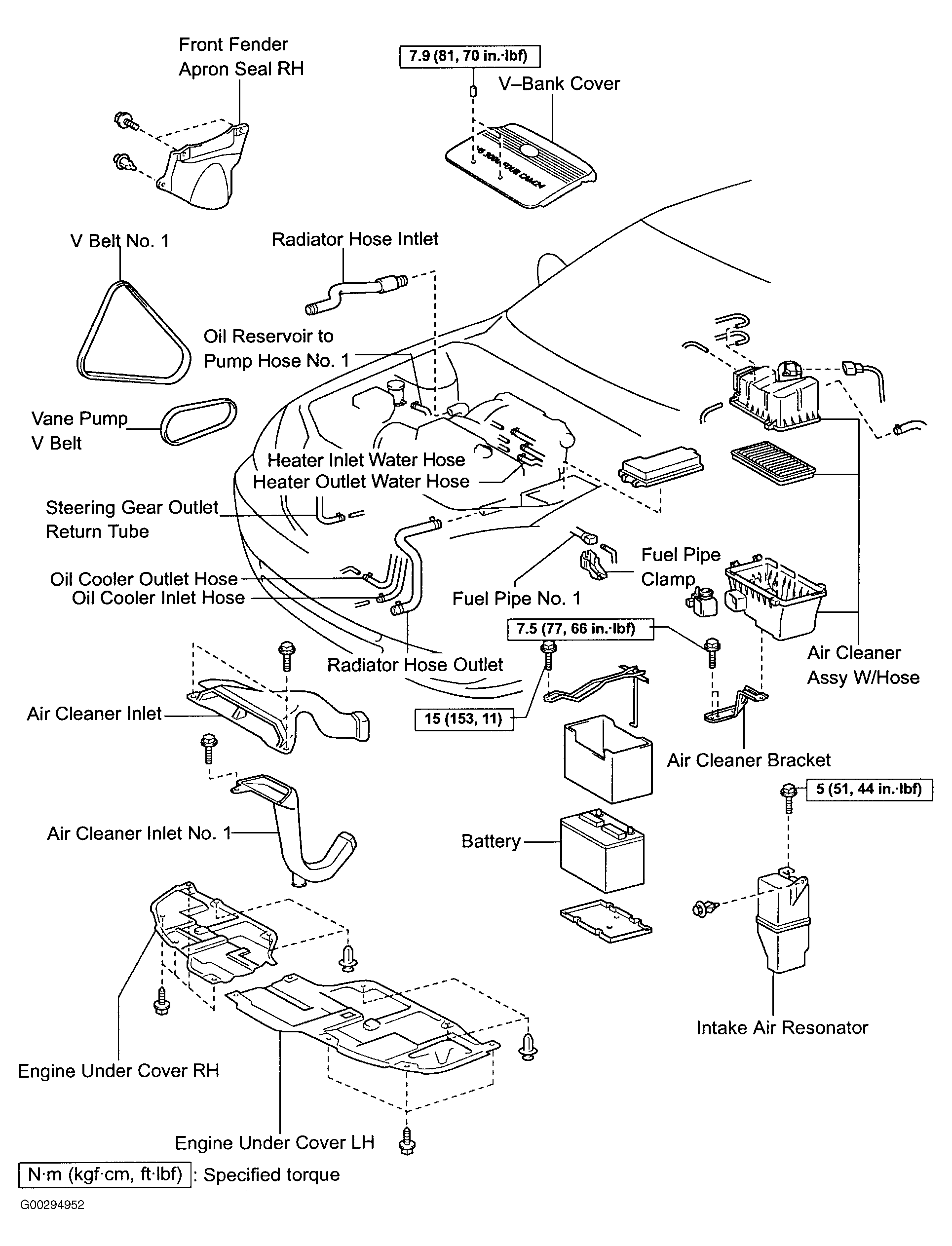

Refer to these figures throughout procedure. See Figure-Figure .
