Vane Pump ASSY: Components

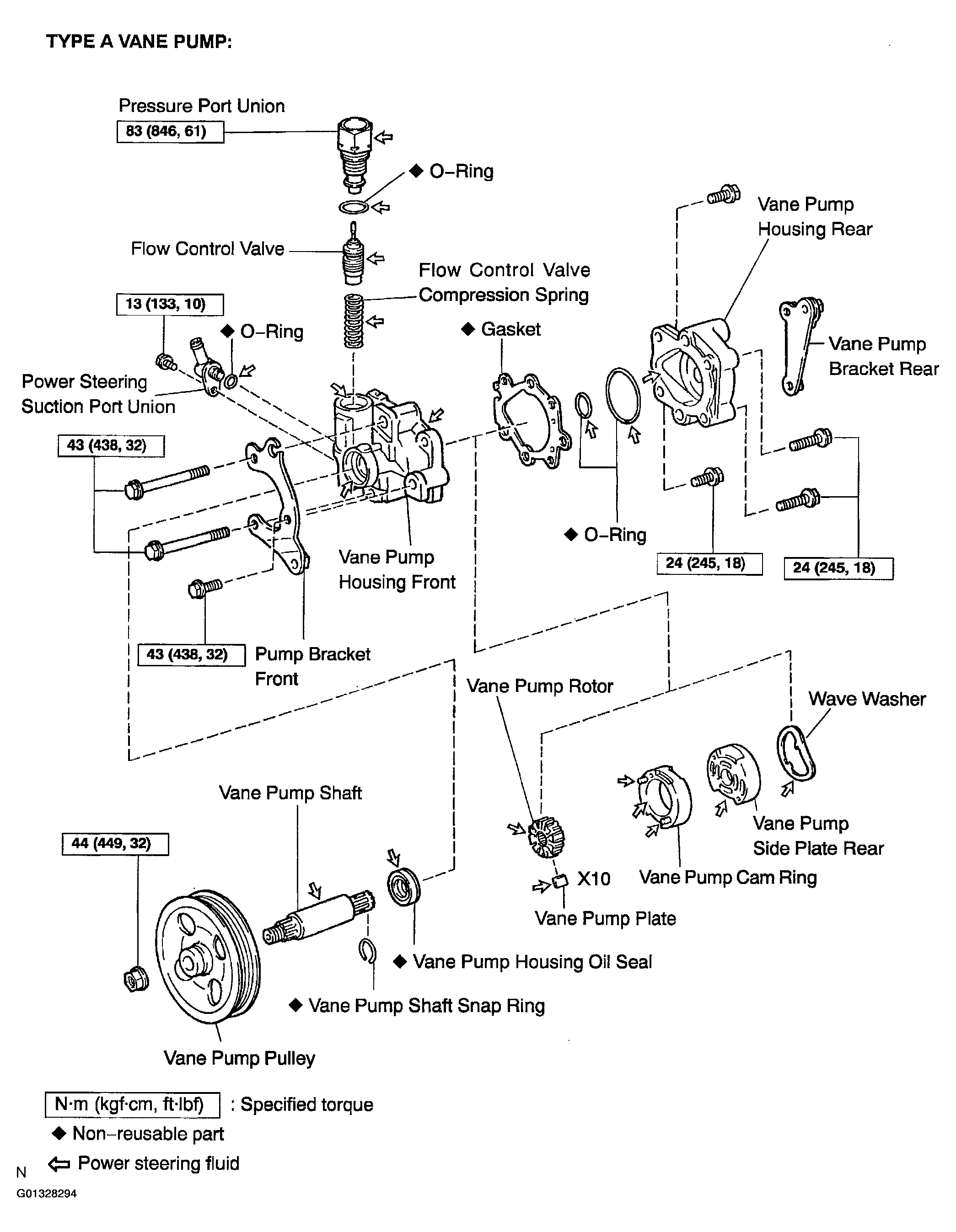

Fig 1: Identifying Vane Pump Assembly Components (1 Of 2)
G01328294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

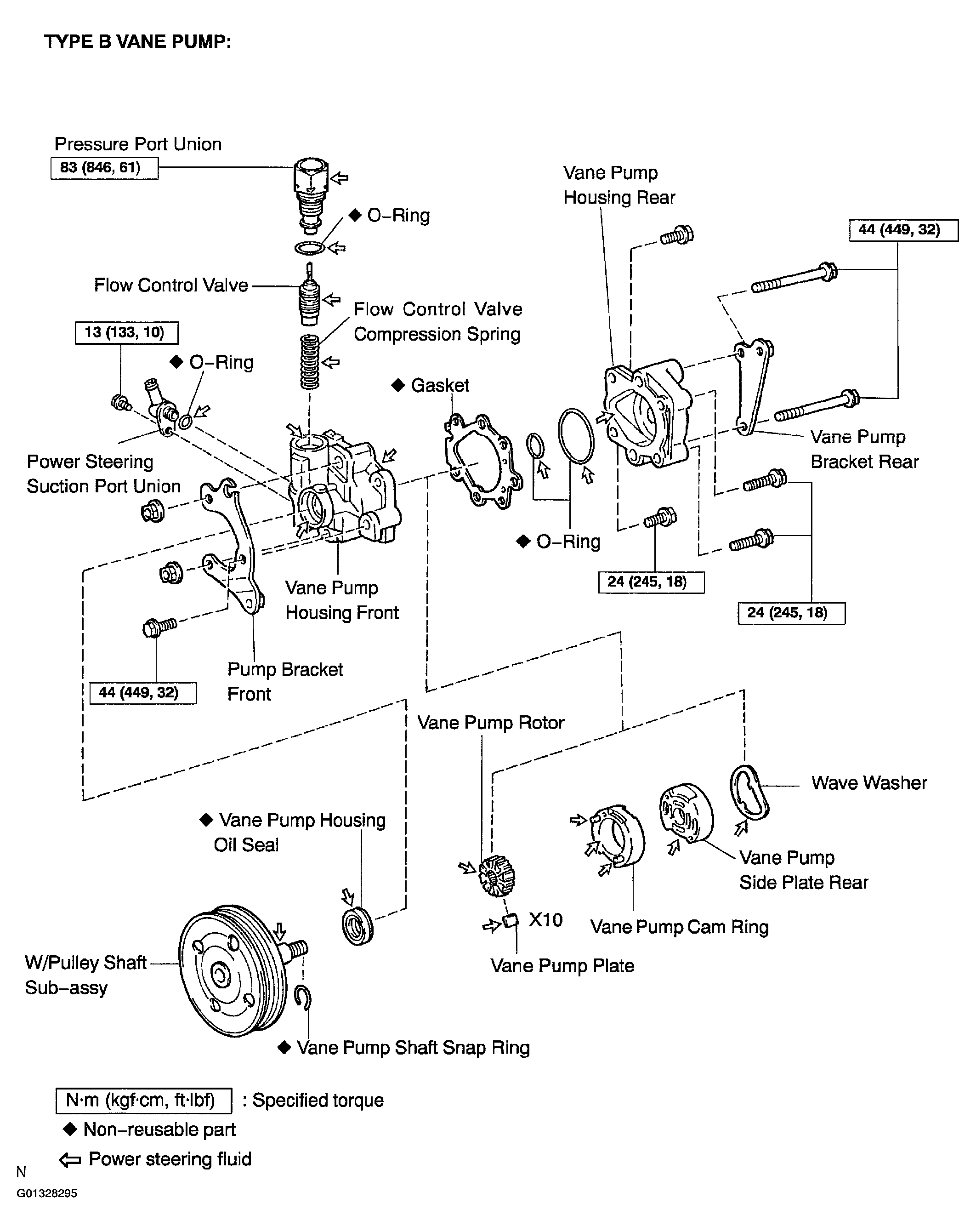

Fig 2: Identifying Vane Pump Assembly Components (2 Of 2)
G01328295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
