Park/Neutral Position Switch ASSY: Replacement

REMOVE BATTERY
REMOVE AIR CLEANER ASSY
REMOVE AIR CLEANER HOSE NO.1
REMOVE INTAKE AIR RESONATOR SUB-ASSY
REMOVE ENGINE UNDER COVER NO.2
DISCONNECT FLOOR SHIFT TRANSMISSION CONTROL CABLE ASSY
1. Remove the nut from the control shaft lever.
2. Disconnect the control cable from the control shaft lever.

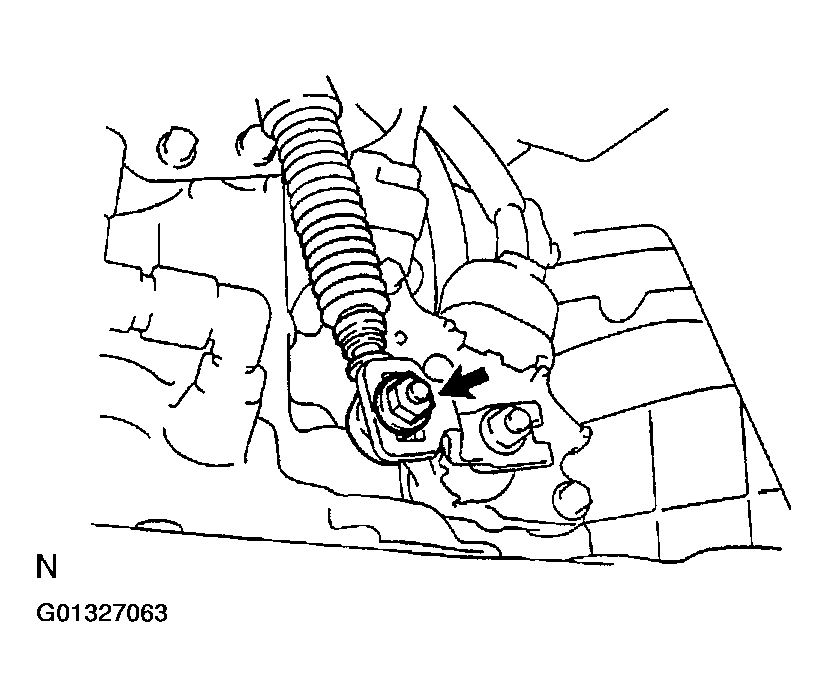

  Fig 1: Removing Control Shaft Lever Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the clip and disconnect the control cable from the control cable bracket.

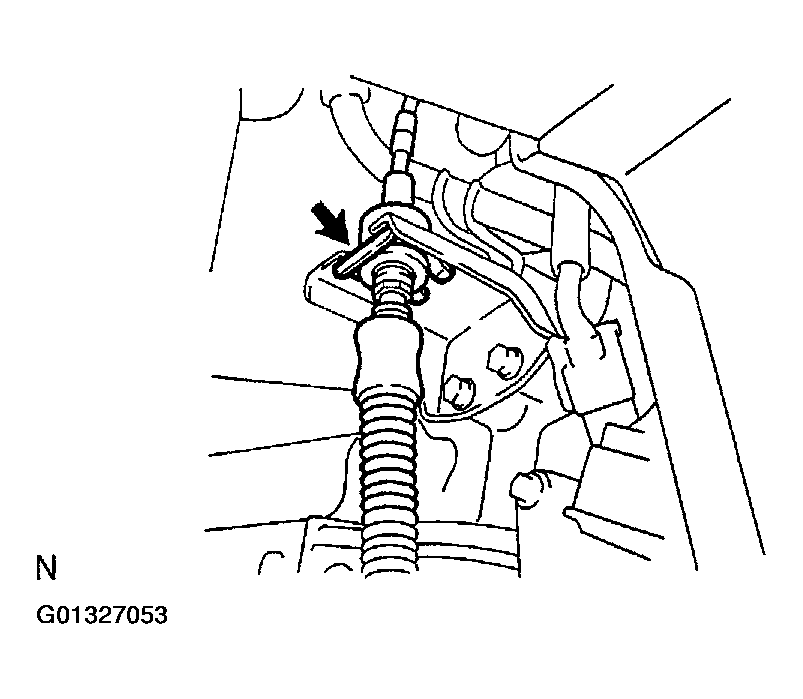

  Fig 2: Disconnecting Control Cable From Control Cable Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PARK/NEUTRAL POSITION SWITCH ASSY
1. Disconnect the park/neutral position switch connector.
2. Remove the nut, washer and control shaft lever.

  Fig 3: Removing Nut, Washer And Control Shaft Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Pry out the lock plate.

  Fig 4: Prying Out Lock Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the lock nut and lock plate.

  Fig 5: Removing Lock Nut And Lock Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 2 bolts and pull out the park/neutral position switch.

  Fig 6: Removing Park/Neutral Position Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL PARK/NEUTRAL POSITION SWITCH ASSY
1. Install the park/neutral position switch to the manual valve shaft.
2. Temporarily install the 2 bolts.
3. Place the lock plate and tighten the nut.
  1. Torque: 6.9 N.m (70 kgf.cm, 61 in..lbf)
4. Temporarily install the control shaft lever.

  Fig 7: Installing Park/Neutral Position Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Turn the lever counterclockwise until it stops, then turn it clockwise 2 notches.
6. Remove the control shaft lever.

  Fig 8: Turning Control Shaft Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Align the groove with neutral basic line.
8. Hold the switch in position and tighten the 2 bolts.
  1. Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)
  Fig 9: Aligning Park/Neutral Position Switch Neutral Basic Line With Groove
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Using a screwdriver, stake the nut with the lock plate.

  Fig 10: Staking Nut With Lock Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. Install the control shaft lever, washer and nut.
  1. Torque: 12.7 N.m (130 kgf.cm, 9 ft.lbf)
11. Connect the park/neutral position switch connector.

  Fig 11: Installing Control Shaft Lever, Washer And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FLOOR SHIFT TRANSMISSION CONTROL CABLE ASSY
1. Temporarily install the control cable to the control shaft lever with the nut.

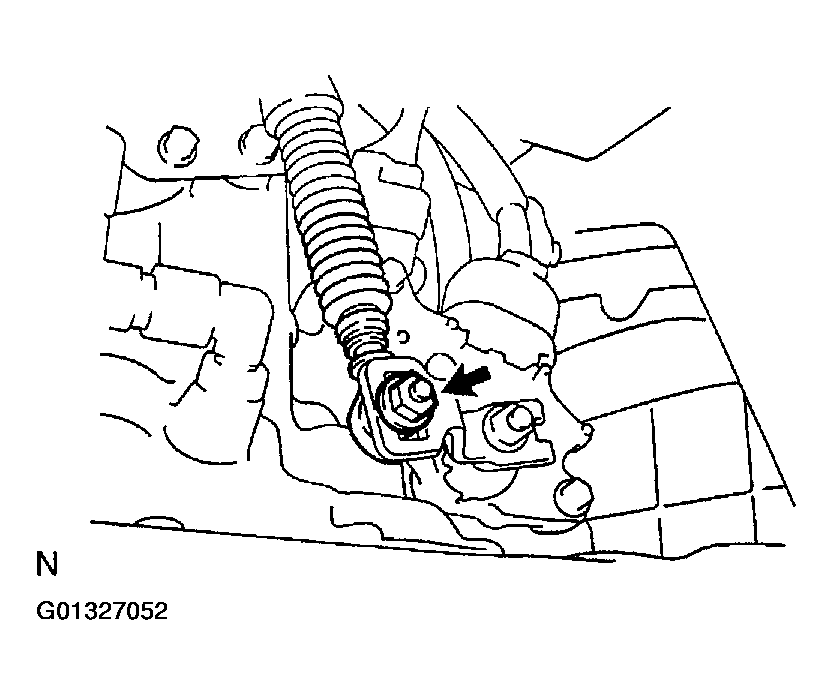

  Fig 12: Installing Control Cable To Control Shaft Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the control cable and a new clip to the bracket.

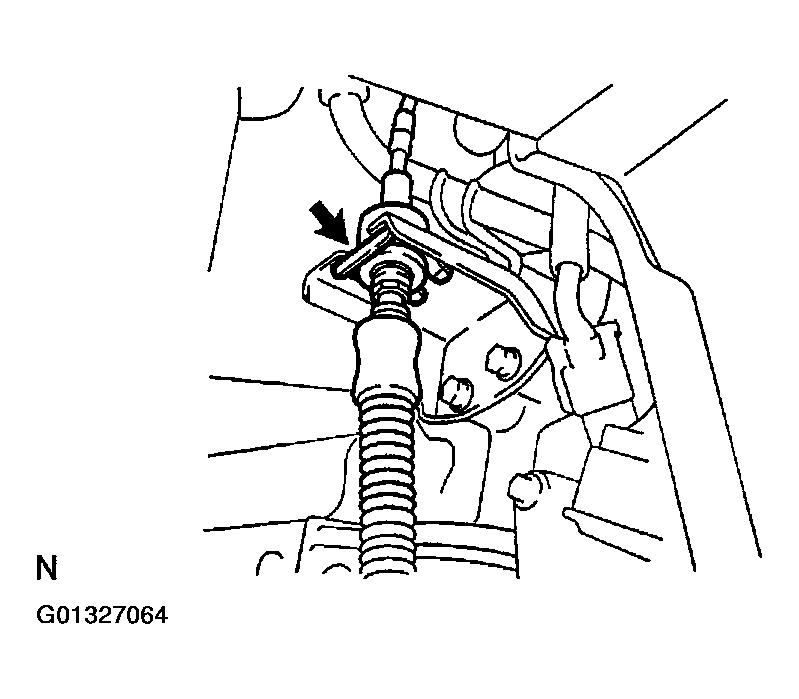

  Fig 13: Installing Control Cable And Clip To Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST SHIFT LEVER POSITION (See ON-VEHICLE INSPECTION )
INSPECT SHIFT LEVER POSITION (See ON-VEHICLE INSPECTION )
INSPECT PARK/NEUTRAL POSITION SWITCH ASSY (See ON-VEHICLE INSPECTION )
INSTALL ENGINE UNDER COVER NO.2
INSTALL INTAKE AIR RESONATOR SUB-ASSY
INSTALL AIR CLEANER HOSE NO.1
INSTALL AIR CLEANER ASSY
INSTALL BATTERY
