Engine Unit: Components

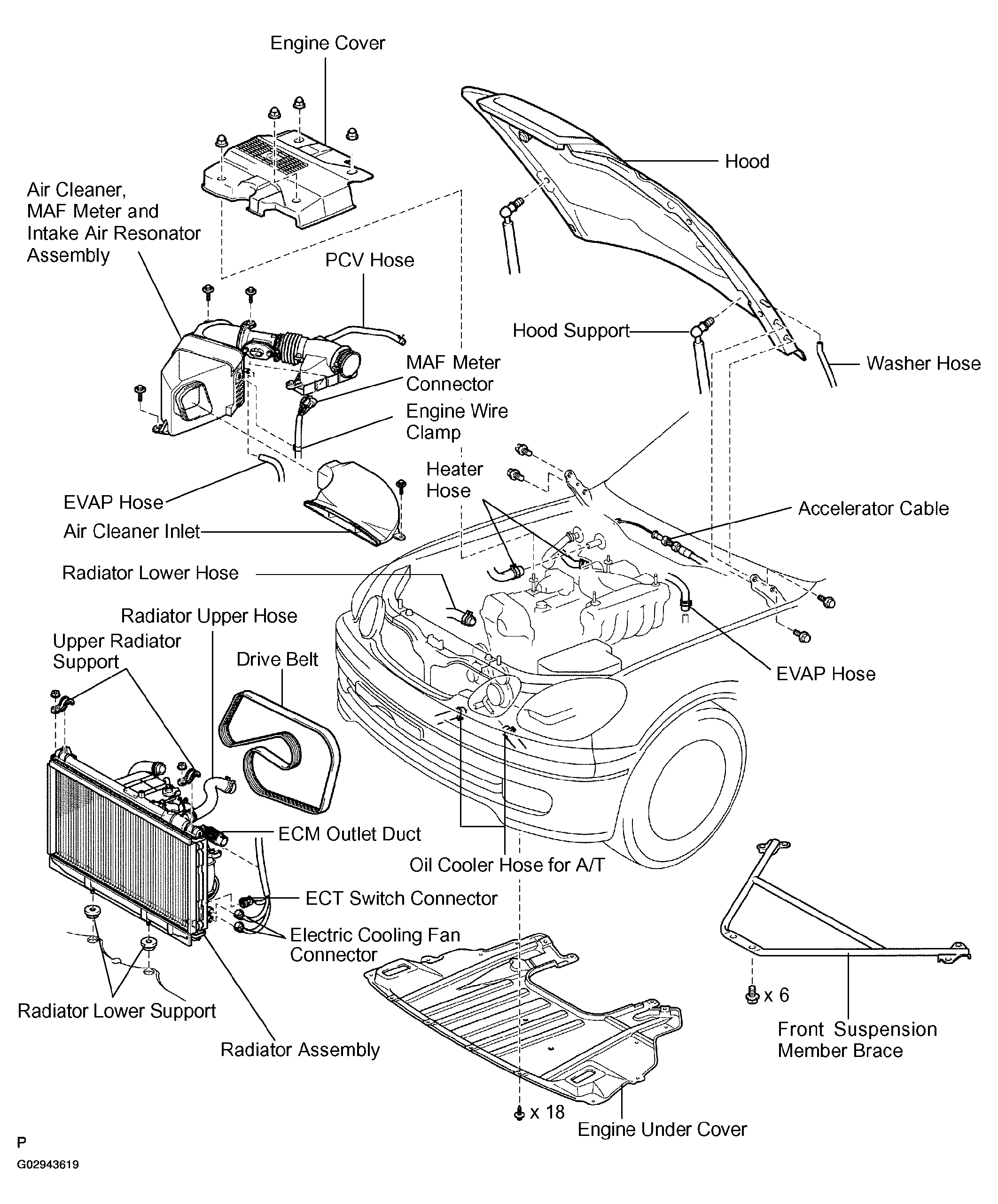

Fig 1: Identifying Removal & Installation Components For Engine Unit Servicing Procedure (1 Of 3)
G02943619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

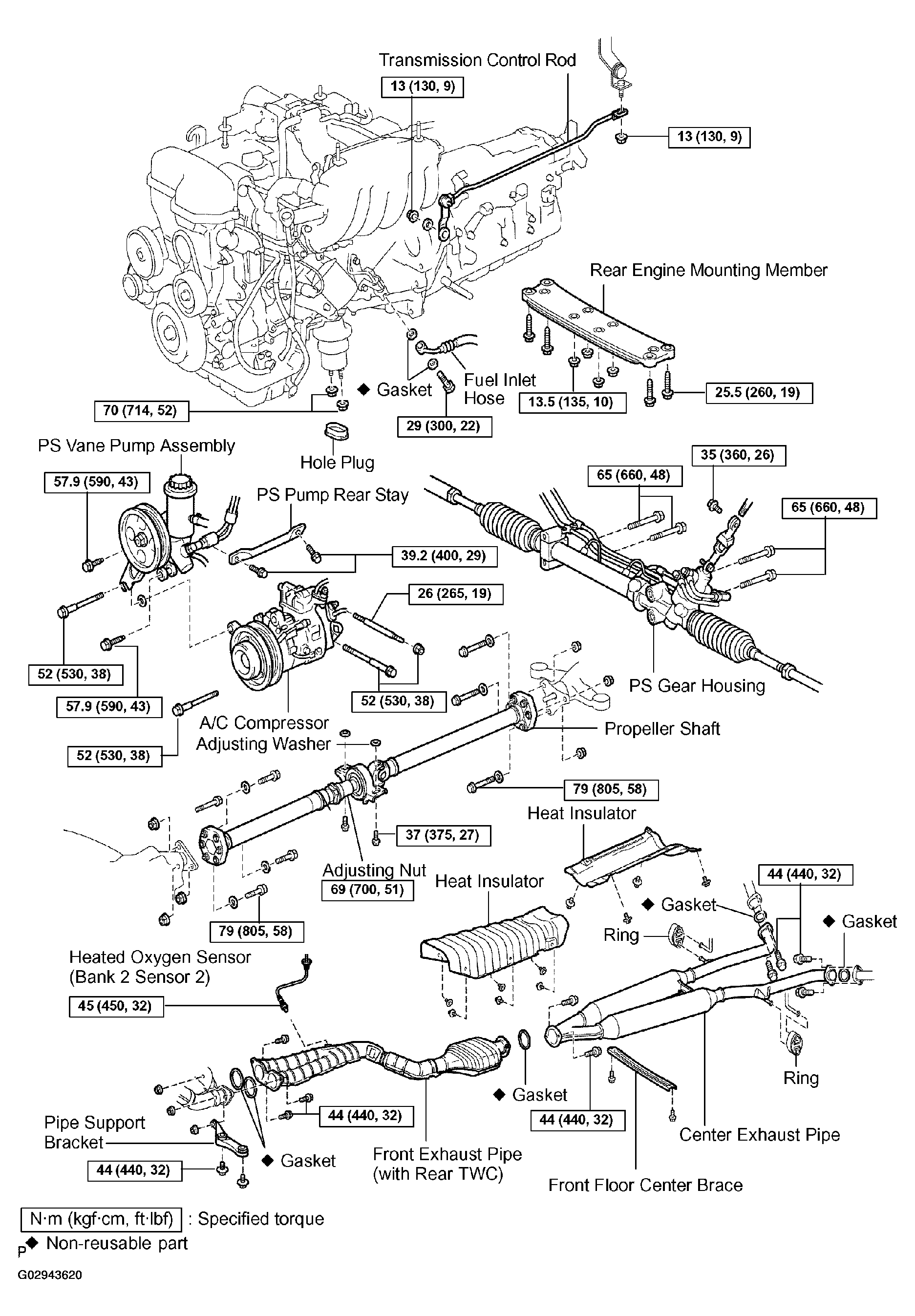

Fig 2: Identifying Removal & Installation Components For Engine Unit Servicing Procedure (2 Of 3)
G02943620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

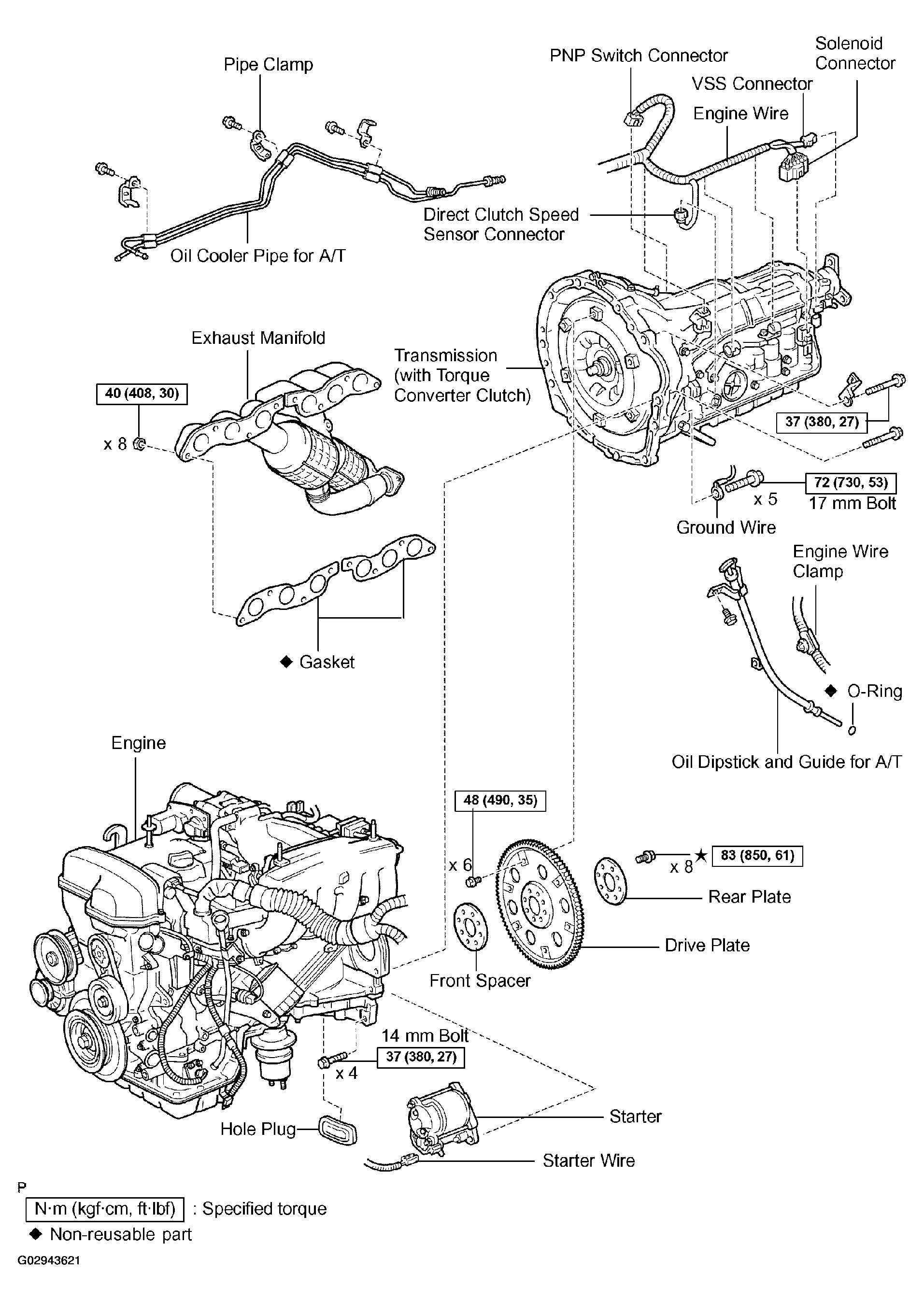

Fig 3: Identifying Removal & Installation Components For Engine Unit Servicing Procedure (3 Of 3)
G02943621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
