Outside Rear View Mirror: Removal

Using a screwdriver, pry upward the door inside handle bezel cover.

HINT:

Tape the screwdriver tip before use.

Fig 1: Removing Door Inside Handle Bezel Cover

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 8 screws.
2. Using a screwdriver, remove the door trim by pulling the whole trim up.

   HINT:

   Tape the screwdriver tip before use.

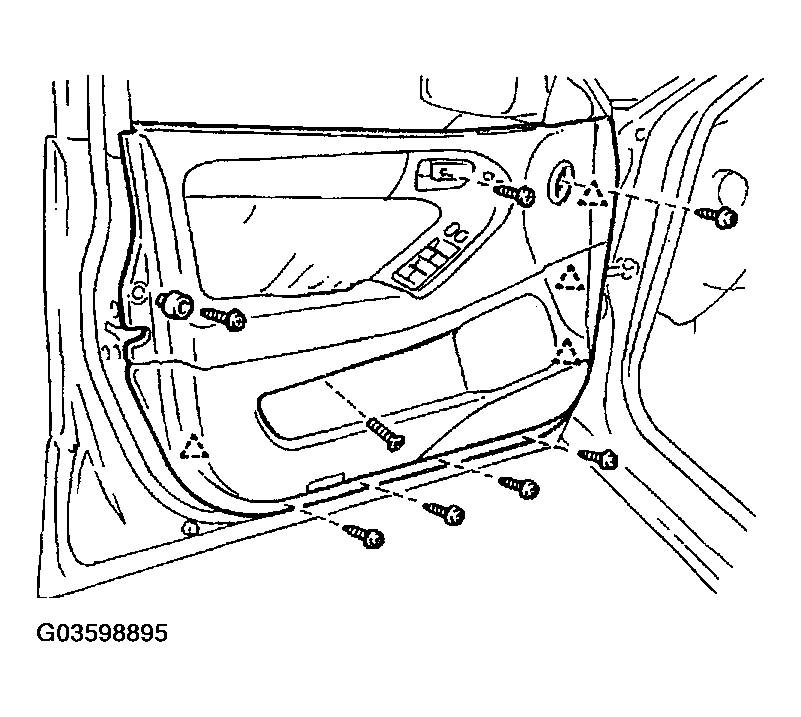

   Fig 2: Removing Door Trim Panel

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 cables from the door inside handle.
4. Disconnect the connector.

Fig 3: Removing Cables From Door Inside Handle

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the nut and door frame garnish.

Disconnect the connector and remove the tweeter speaker.

Disconnect the connector, then remove the 3 bolts and outside rear view mirror.

Fig 4: Removing Outside Rear View Mirror

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
