Front Seat: Components

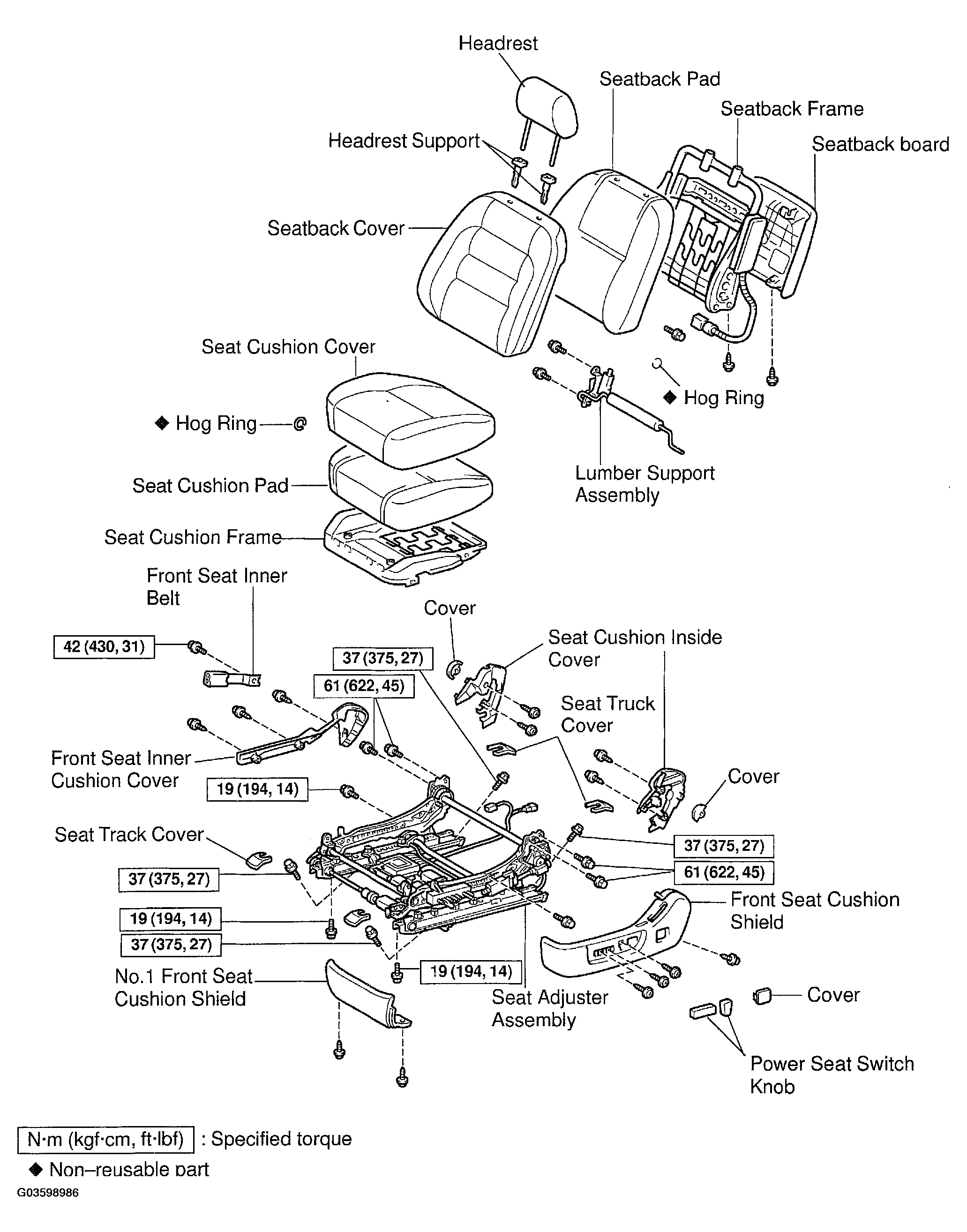

Fig 1: Exploded View Of Front Seat Components (1 Of 2)
G03598986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

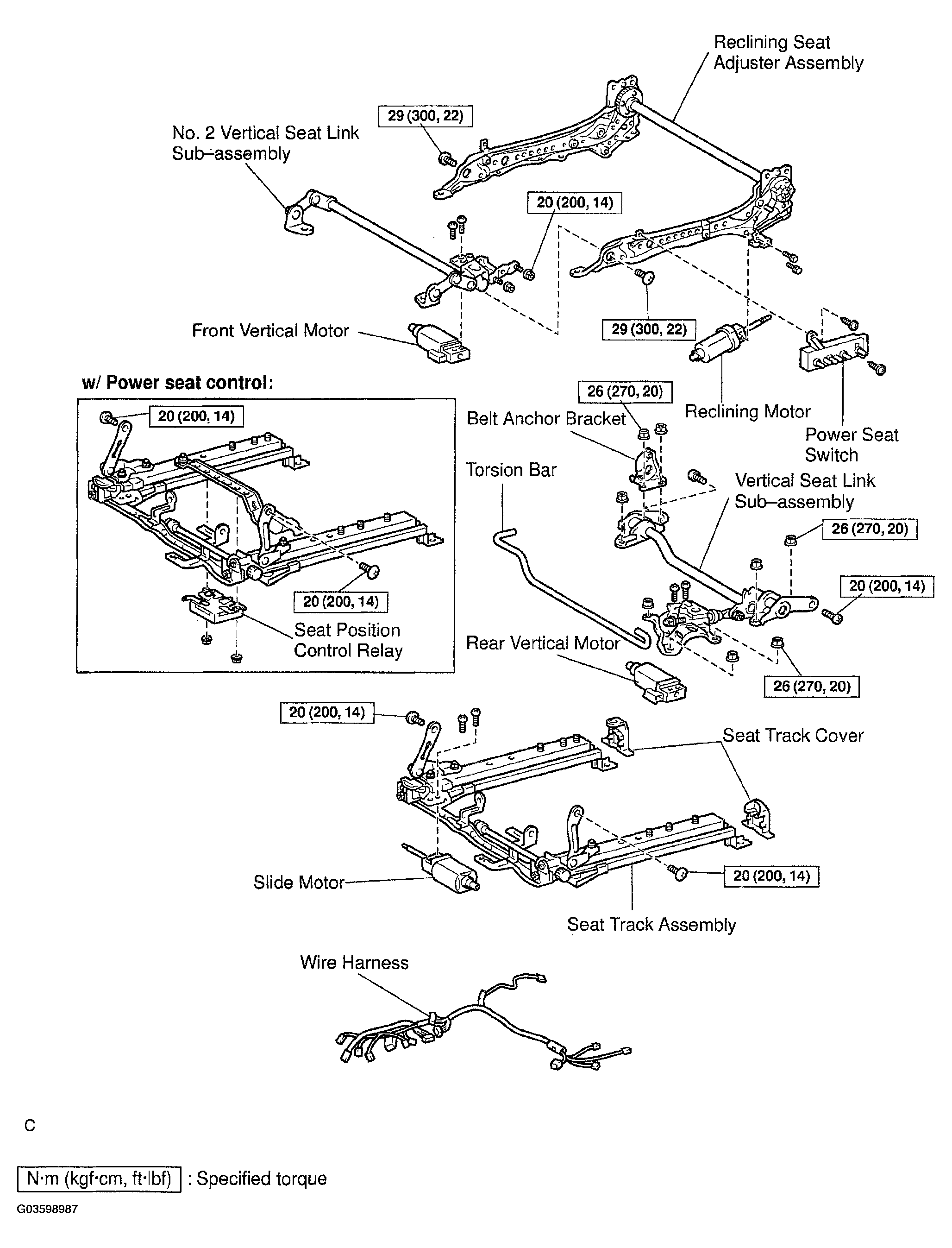

Fig 2: Exploded View Of Front Seat Components (2 Of 2)
G03598987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
