Cylinder Block: Components

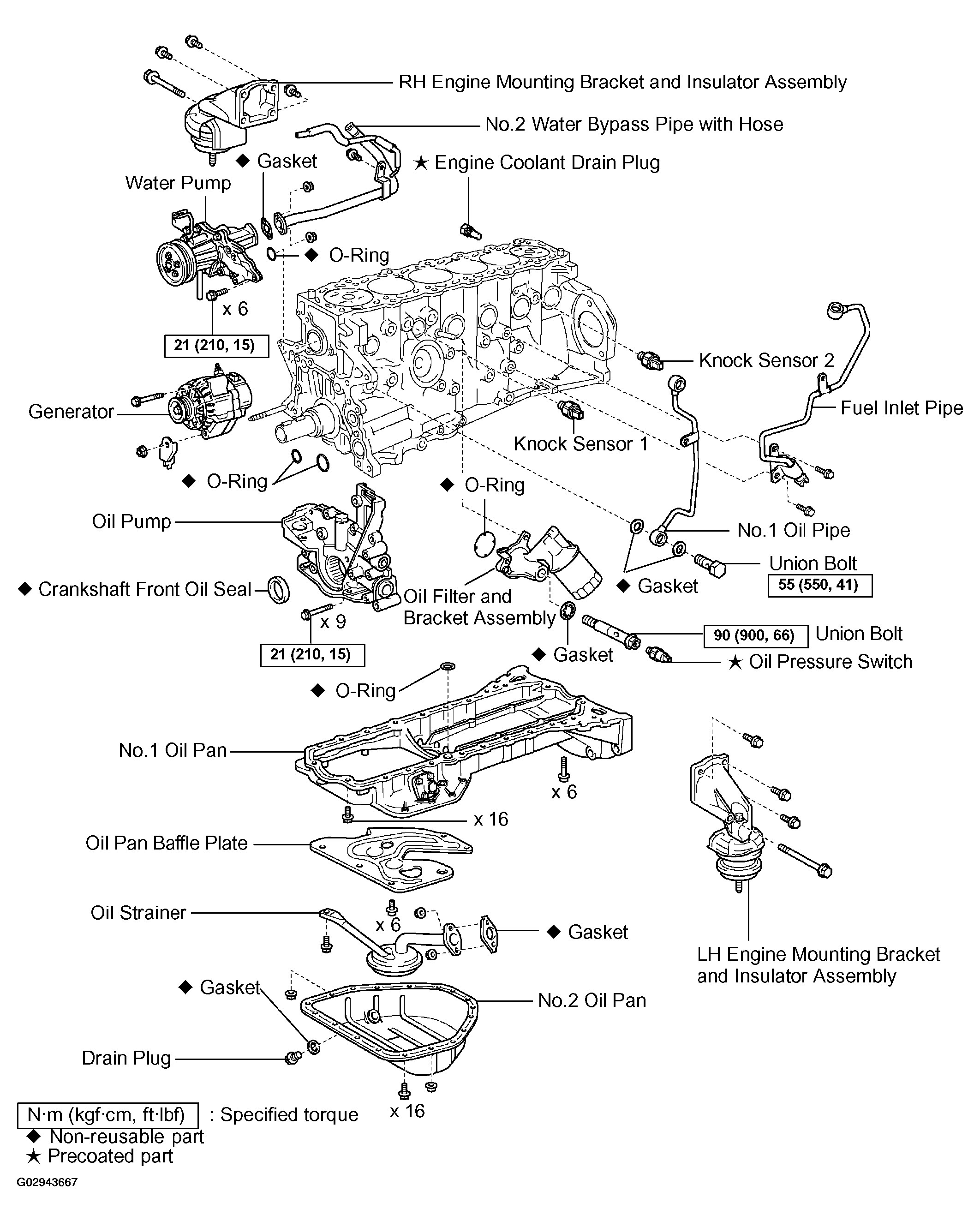

Fig 1: Identifying Removal & Installation Components For Cylinder Block Servicing Procedure (1 Of 2)
G02943667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

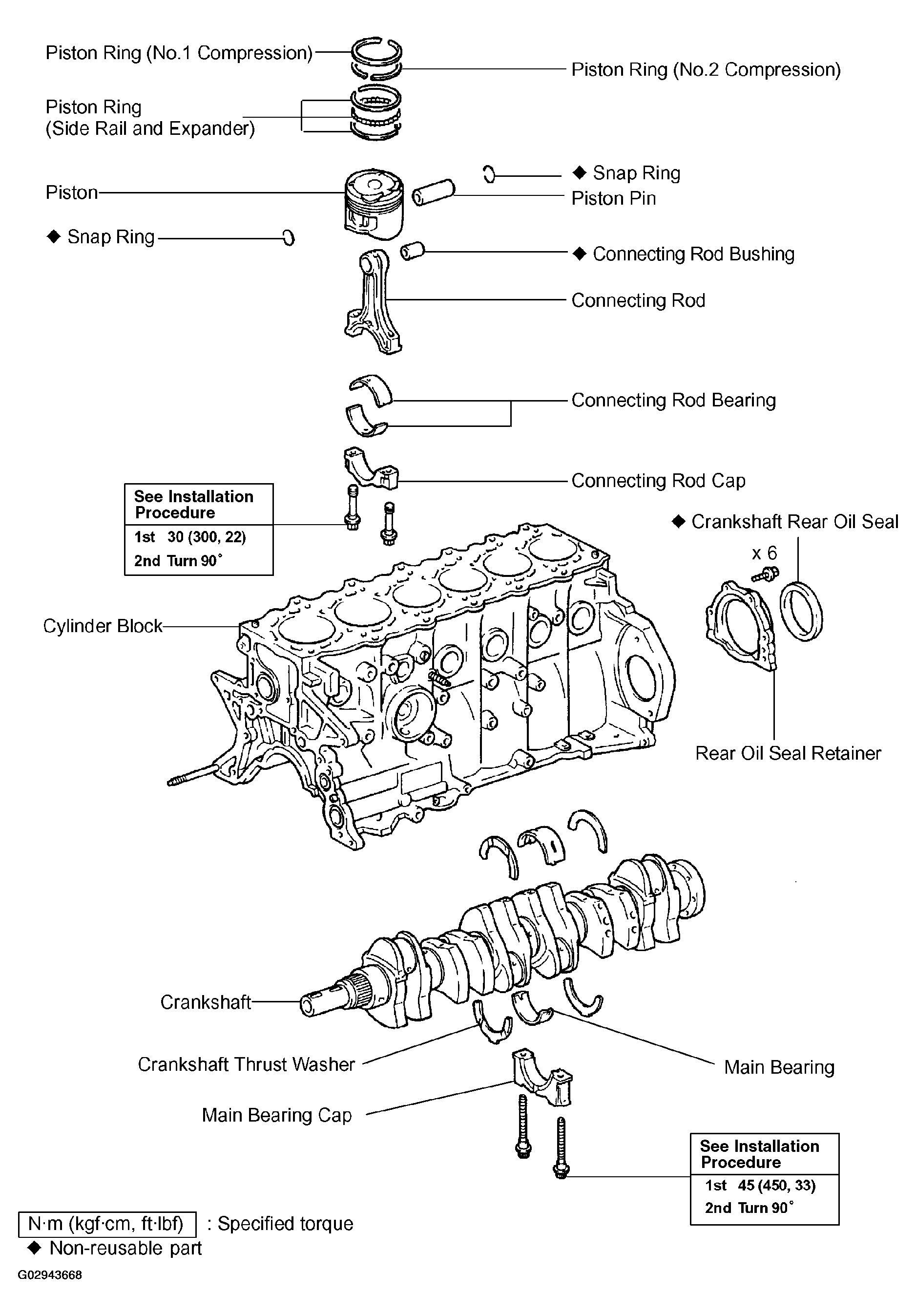

Fig 2: Identifying Removal & Installation Components For Cylinder Block Servicing Procedure (2 Of 2)
G02943668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
