Ignition Timing: Inspection

Allow the engine to warm up to normal operating temperature.

1. Connect the LEXUS hand-held tester or OBDII scan tool to the DLC3.
2. Please refer to the hand-held tester or OBDII scan tool operator's manual for further details.

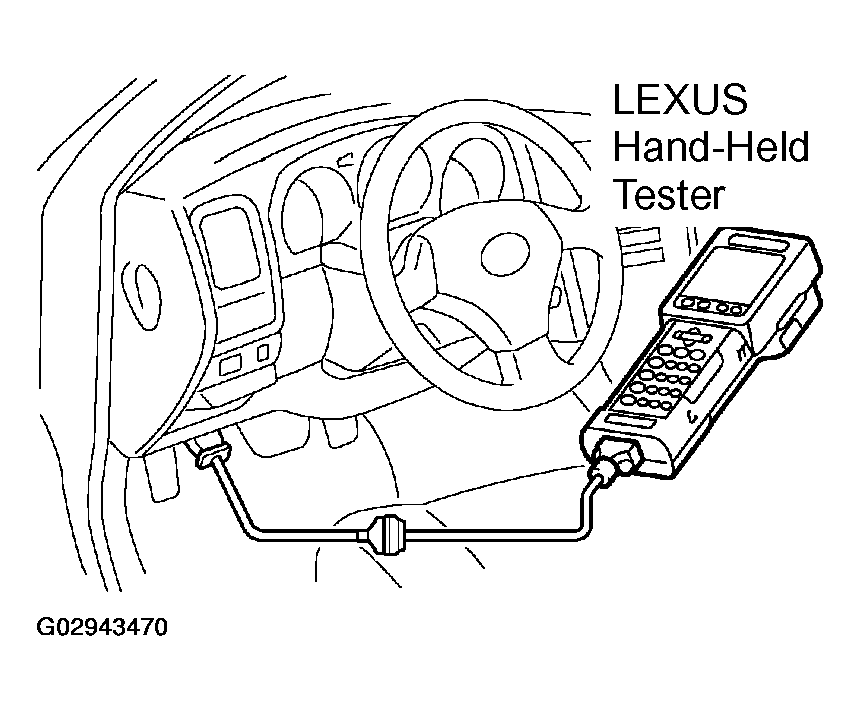

   Fig 1: Connecting LEXUS Hand Held Tester To DLC3 Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST, connect terminals TC and E1 of the DLC1.

   SST 09843-18020

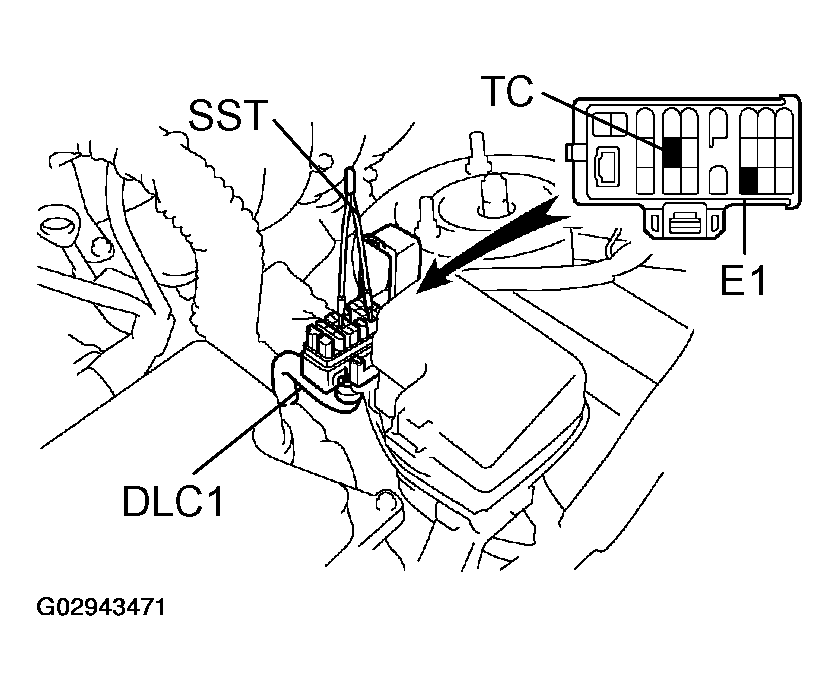

   Fig 2: Locating TC And E1 Terminals Of DLC1 Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the timing light clip to the white lead wire.
   NOTE: Use a timing light that can detect the primary signal.

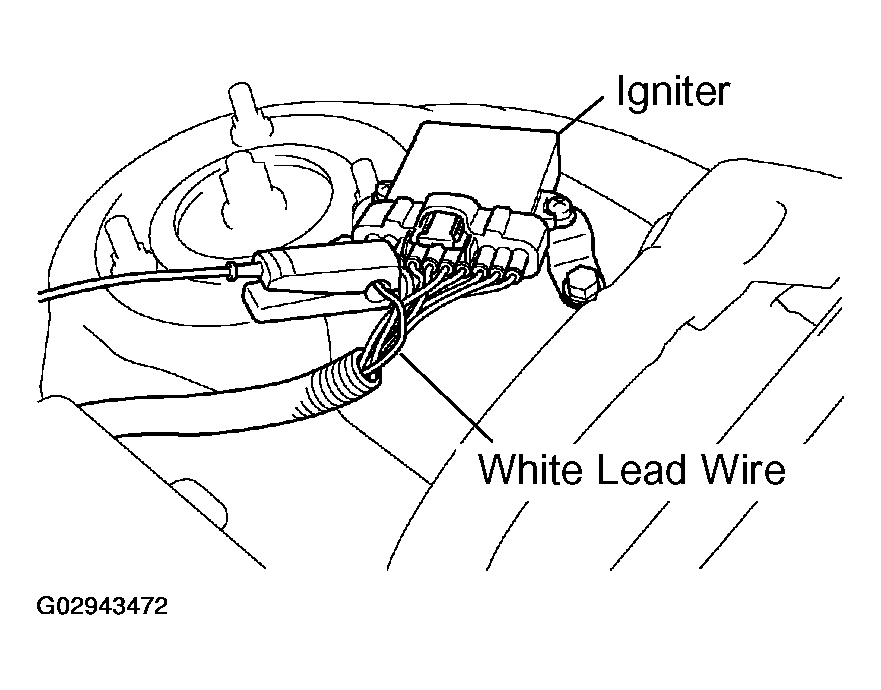

   Fig 3: Locating Igniter And White Lead Wire

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a timing light, check the ignition timing.

   Ignition timing: 10 +/- 2° BTDC @ idle

   (Transmission in neutral position)

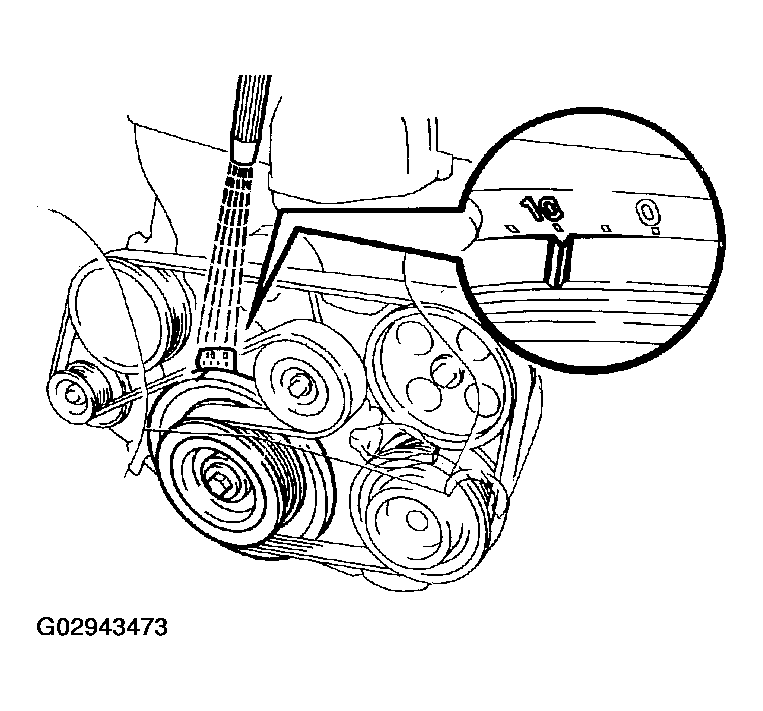

Fig 4: Locating Ignition Timing Idle Timing Mark
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the SST from the DLC1.

Ignition timing: 6 - 16° BTDC @ idle

(Transmission in neutral position)

HINT:

The timing mark moves in a range between 6° and 16°.
