Timing Belt: Components

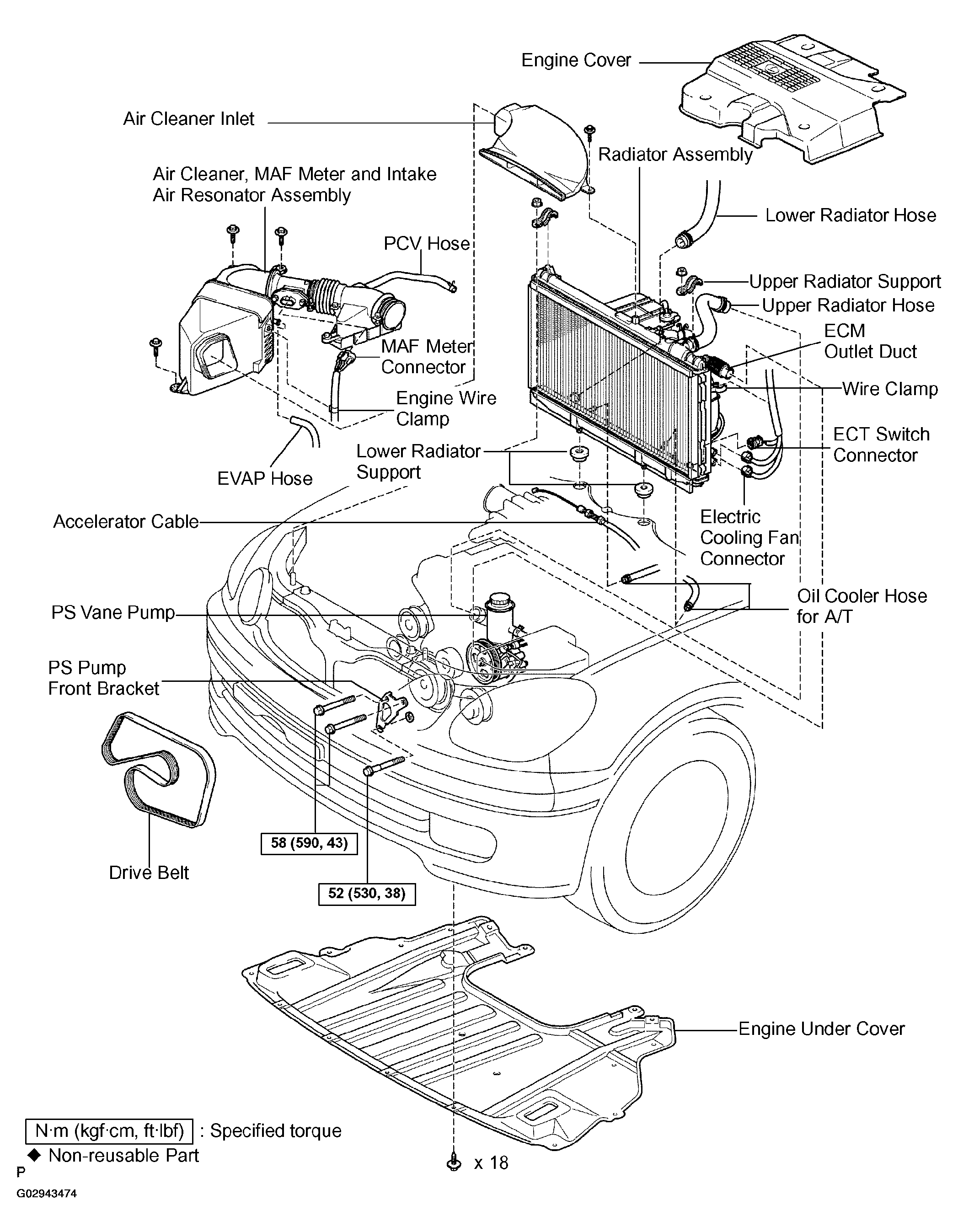

Fig 1: Identifying Removal & Installation Components For Timing Belt Servicing Procedure (1 Of 2)
G02943474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

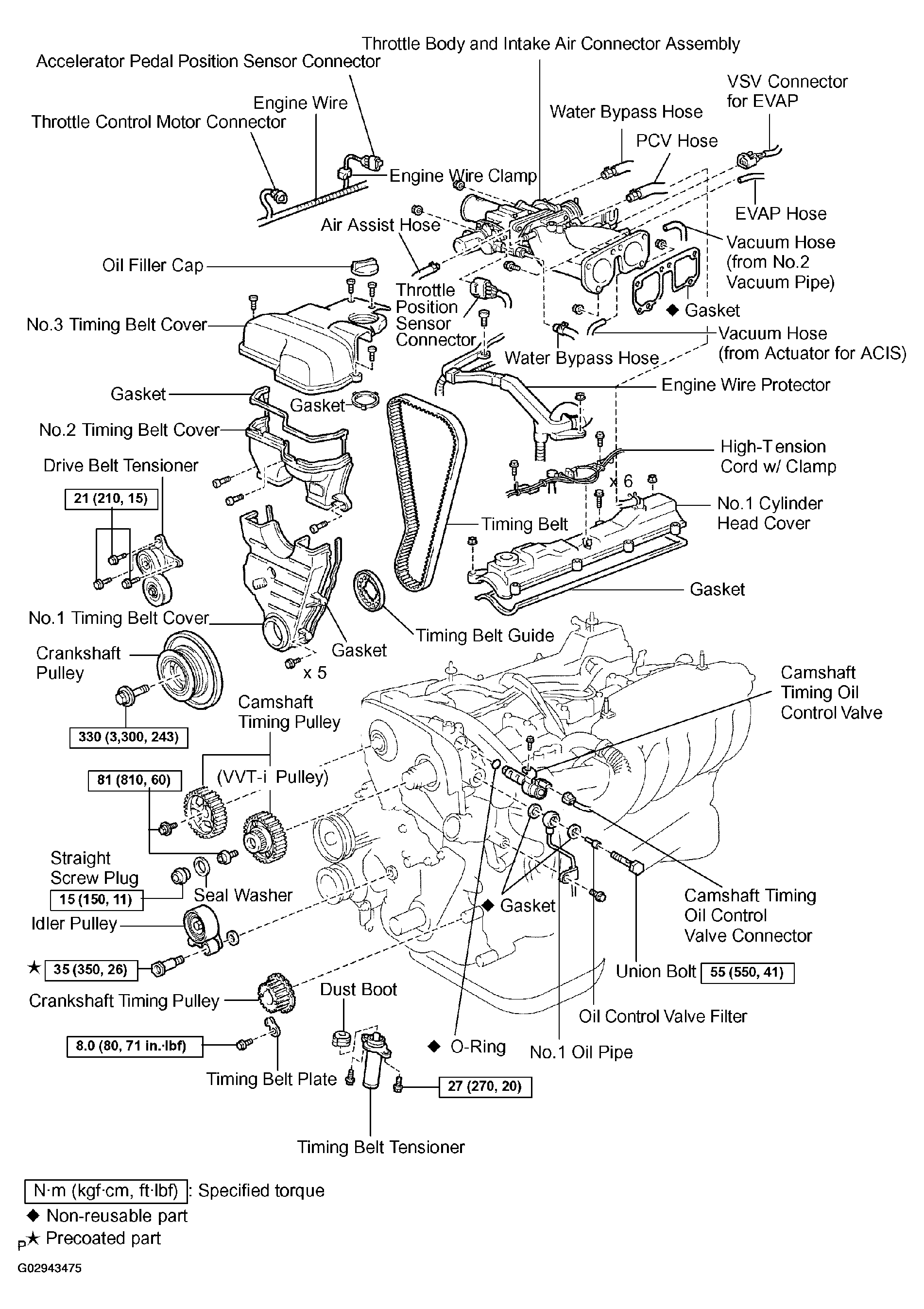

Fig 2: Identifying Removal & Installation Components For Timing Belt Servicing Procedure (2 Of 2)
G02943475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
