Check Transmission Shift Switch
PREPARATION:
- Remove the steering wheel pad.
- Disconnect the transmission shift switch connector.
CHECK:

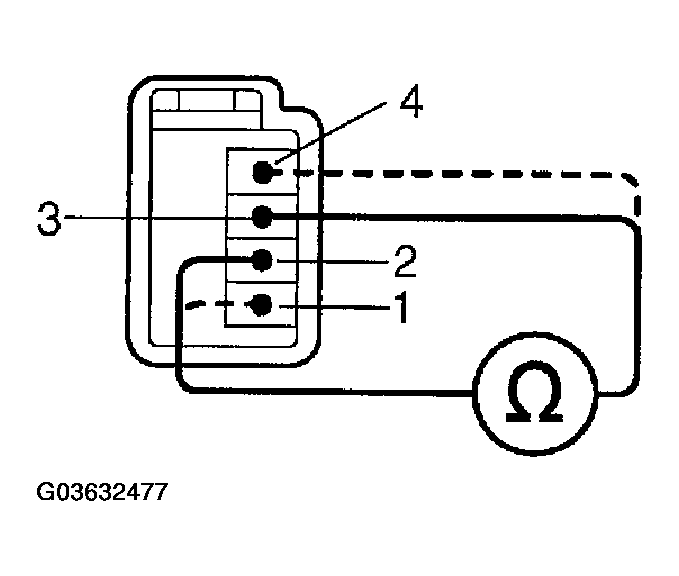

Check continuity between each terminal of transmission shift switch connector.
OK:
SWITCH CONDITION SPECIFIED VALUE CHART
| Switch condition | Tester connection | Specified value |
|---|---|---|
| "Up" switch pressed | 1-4 | No continuity |
| "Up" switch released | Continuity | |
| "Down" switch pressed | 2-3 | No continuity |
| "Down" switch released | Continuity |
- NG: Replace the steering wheel.
- OK: Go To CHECK VOLTAGE BETWEEN EACH OF TERMINALS SFTU, SFTD AND E1 OF ECM
