Control Switch Circuit (Cruise Control Switch): Wiring Diagram

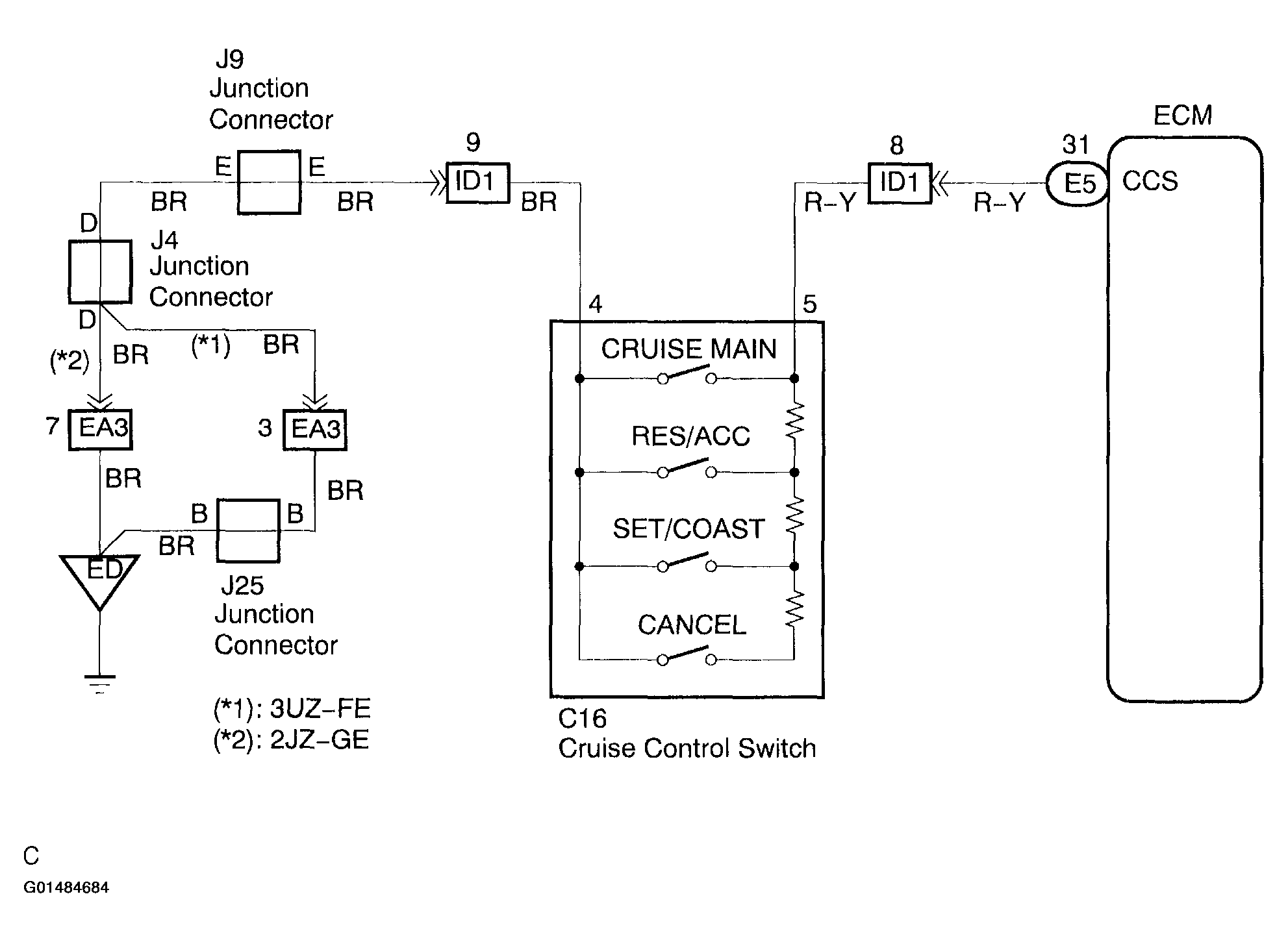

Fig 1: Circuit Diagram - Control Switch Circuit (Cruise Control Switch)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
