Audio System: Location
The vehicle shown in
Fig 1
is "GS430".
All components of "GS300" other than the ones used for engine are same as "GS430".

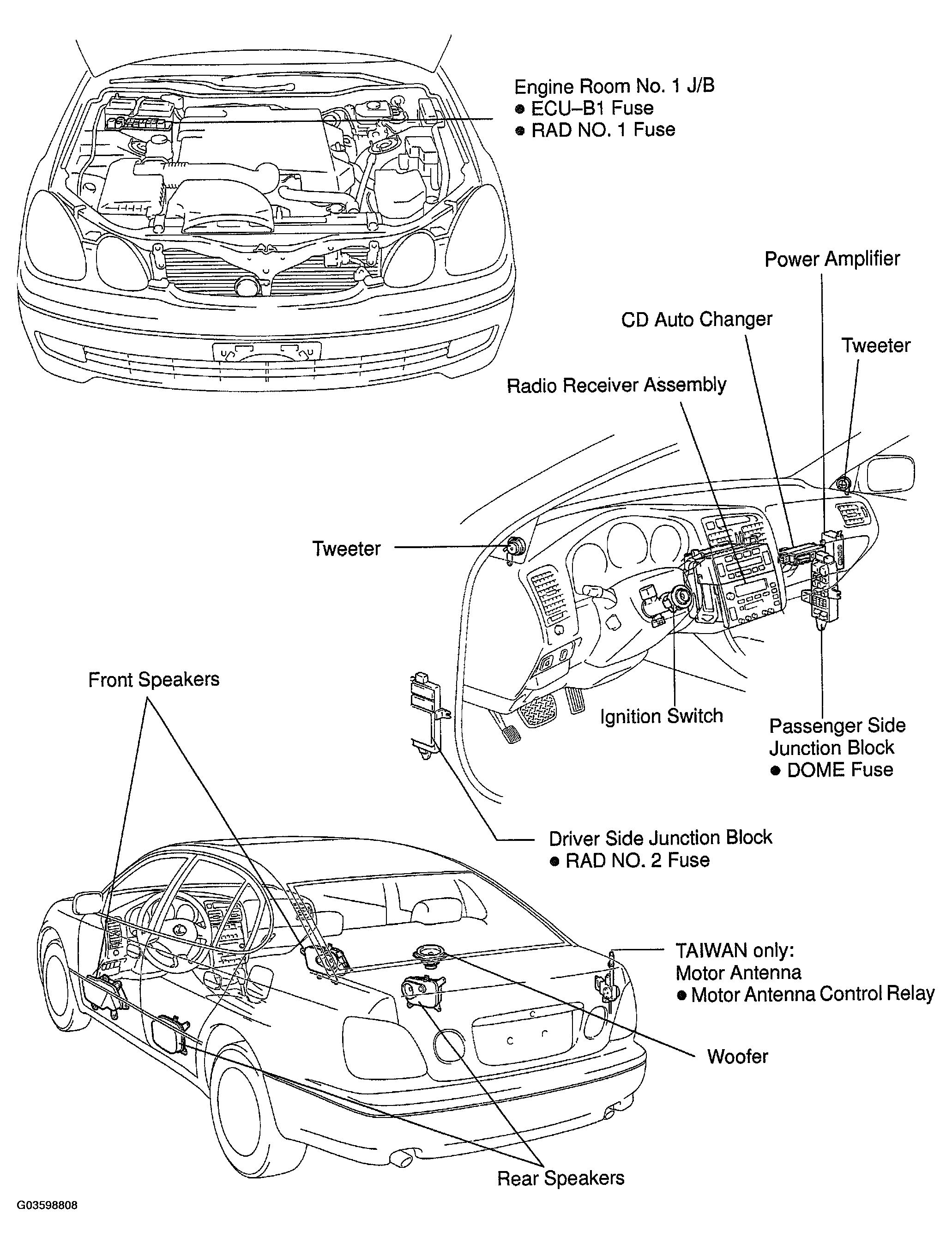

Fig 1: Locating Audio System Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
