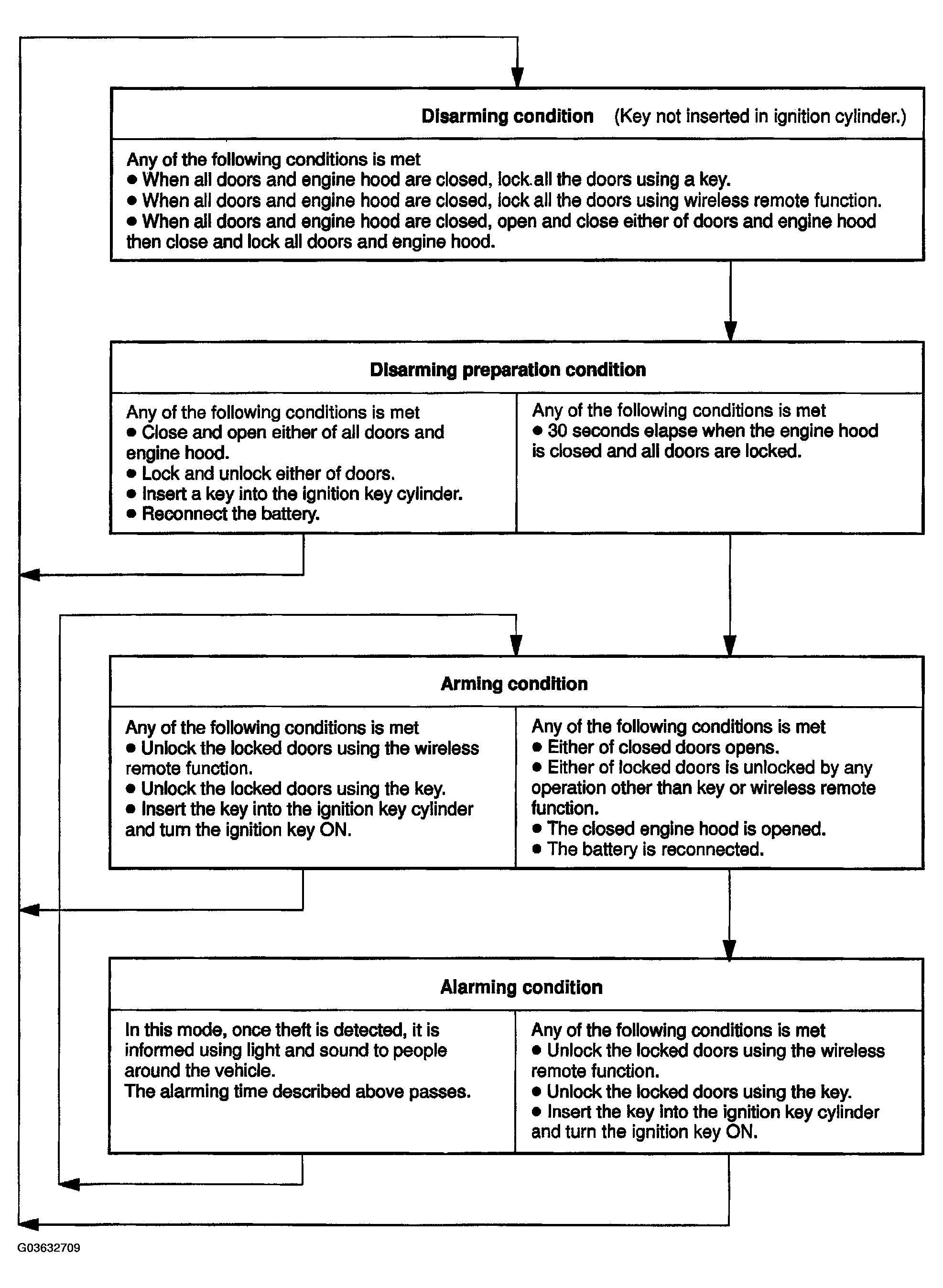

Active Arming Mode
Indicator light output:
INDICATOR LIGHT OUTPUT
| Condition | Indicator light |
|---|---|
| Disarming condition | OFF |
| Arming preparation condition | ON |
| Arming condition | OFF |
| Alarming condition | ON |
HINT:
Even in disarming condition, the indicator light flash. (Due to the signal output form immobilizer system). The indicator always flashes receiving the signal from the immobilizer system at any time in the arming condition.
Flashing frequency:
0.75 seconds (ON)
1.25 seconds (OFF)
