Torque Specification

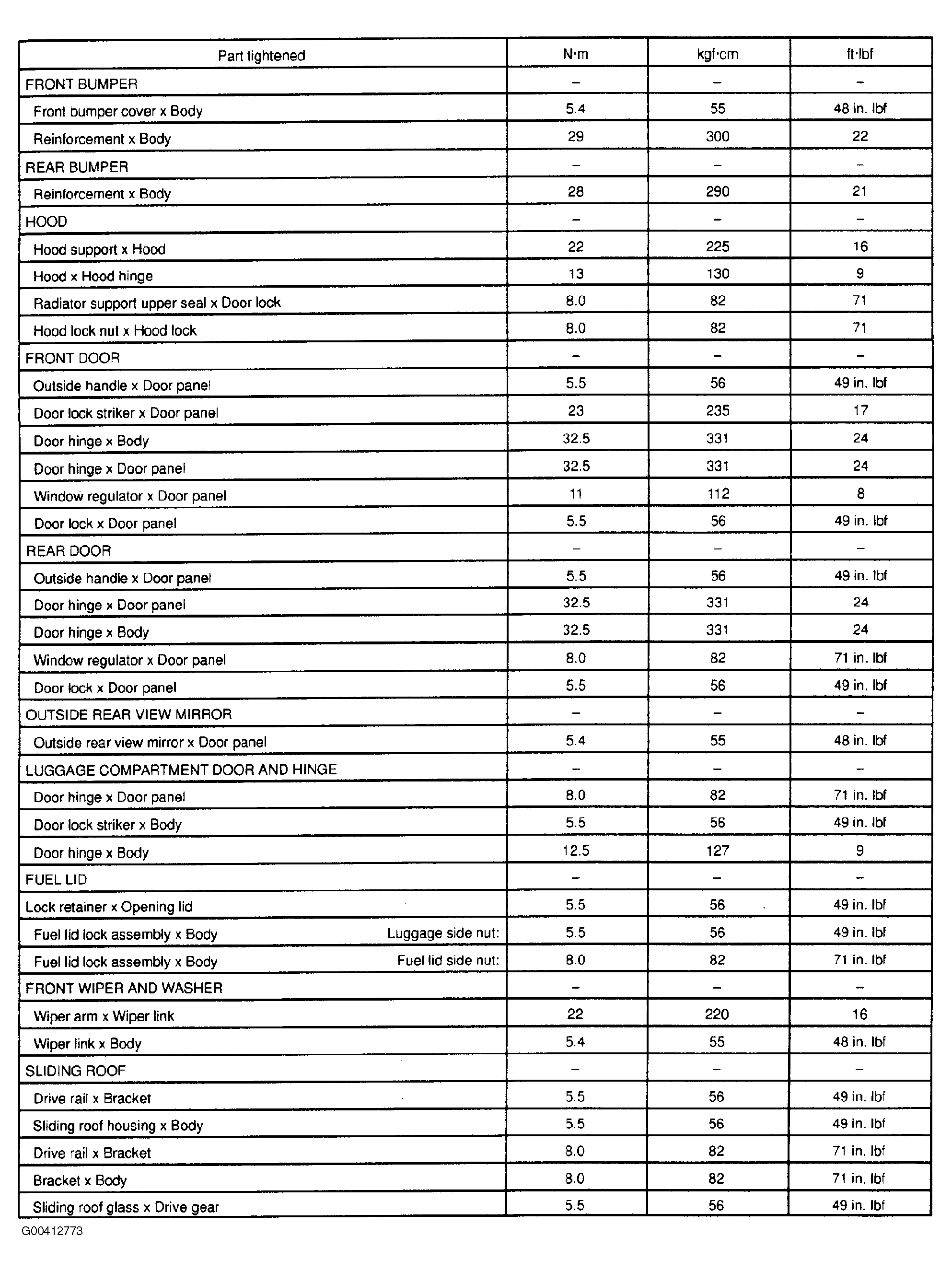

Fig 1: Body & Interior Components Tightening Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

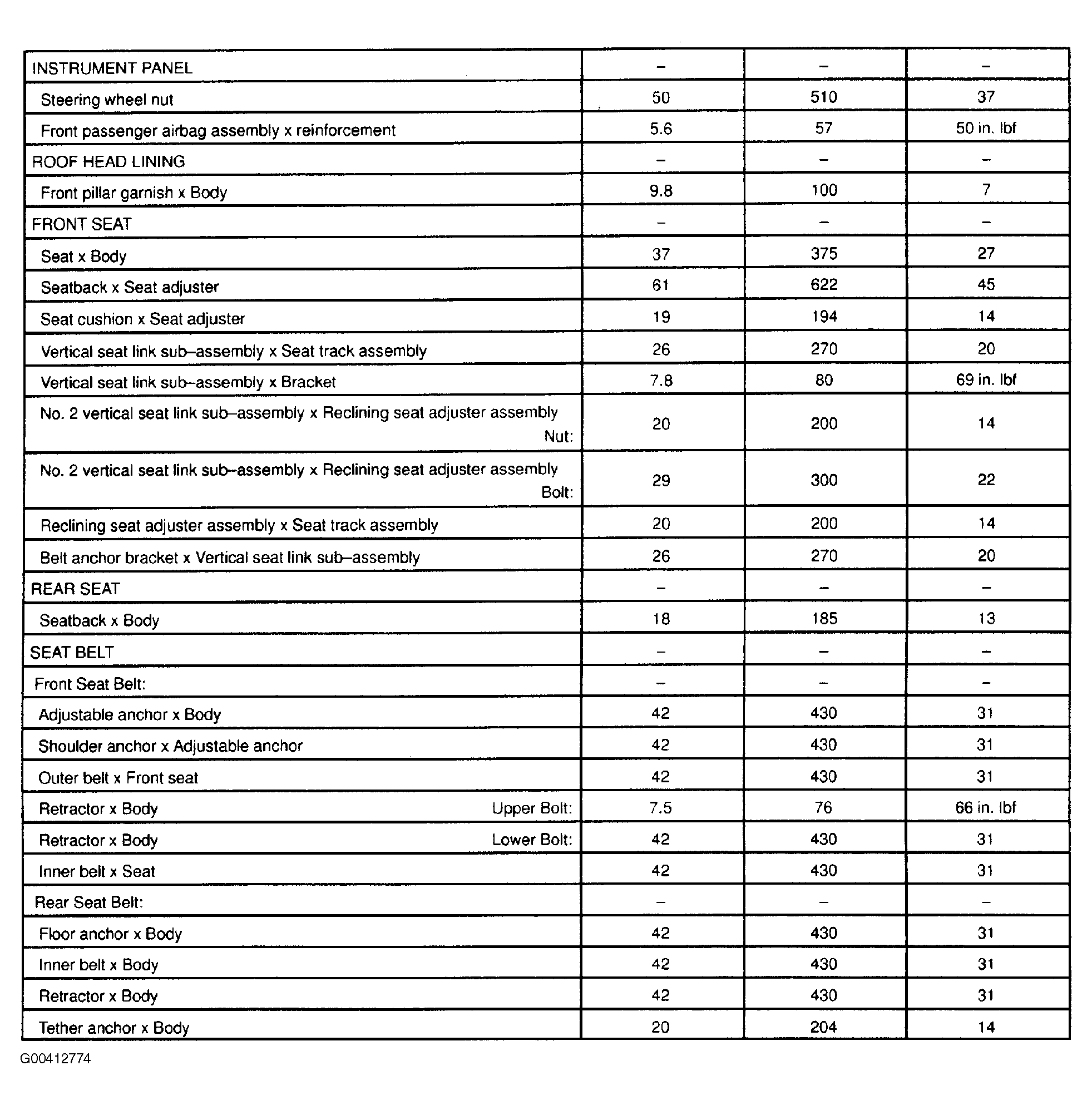

Fig 2: Body & Interior Components Tightening Torque Specifications (2 Of 2)
