Clip Replacement

The removal and installation methods of typical clips used in body parts are shown in Fig 1 and Fig 2 .

HINT:

If the clip is damaged during the operation, always replace it with a new clip.

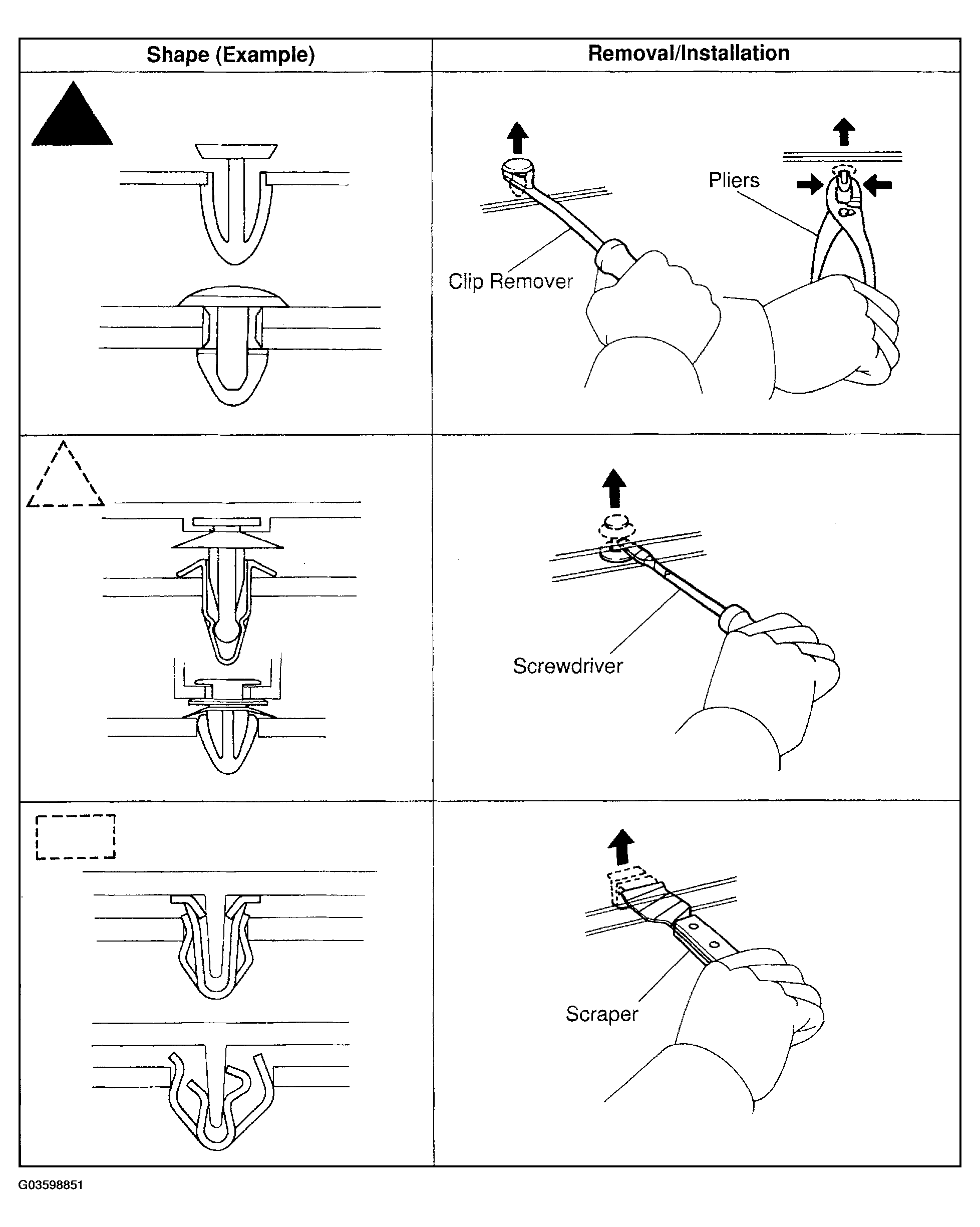

Fig 1: Replacing Clip (1 Of 2)

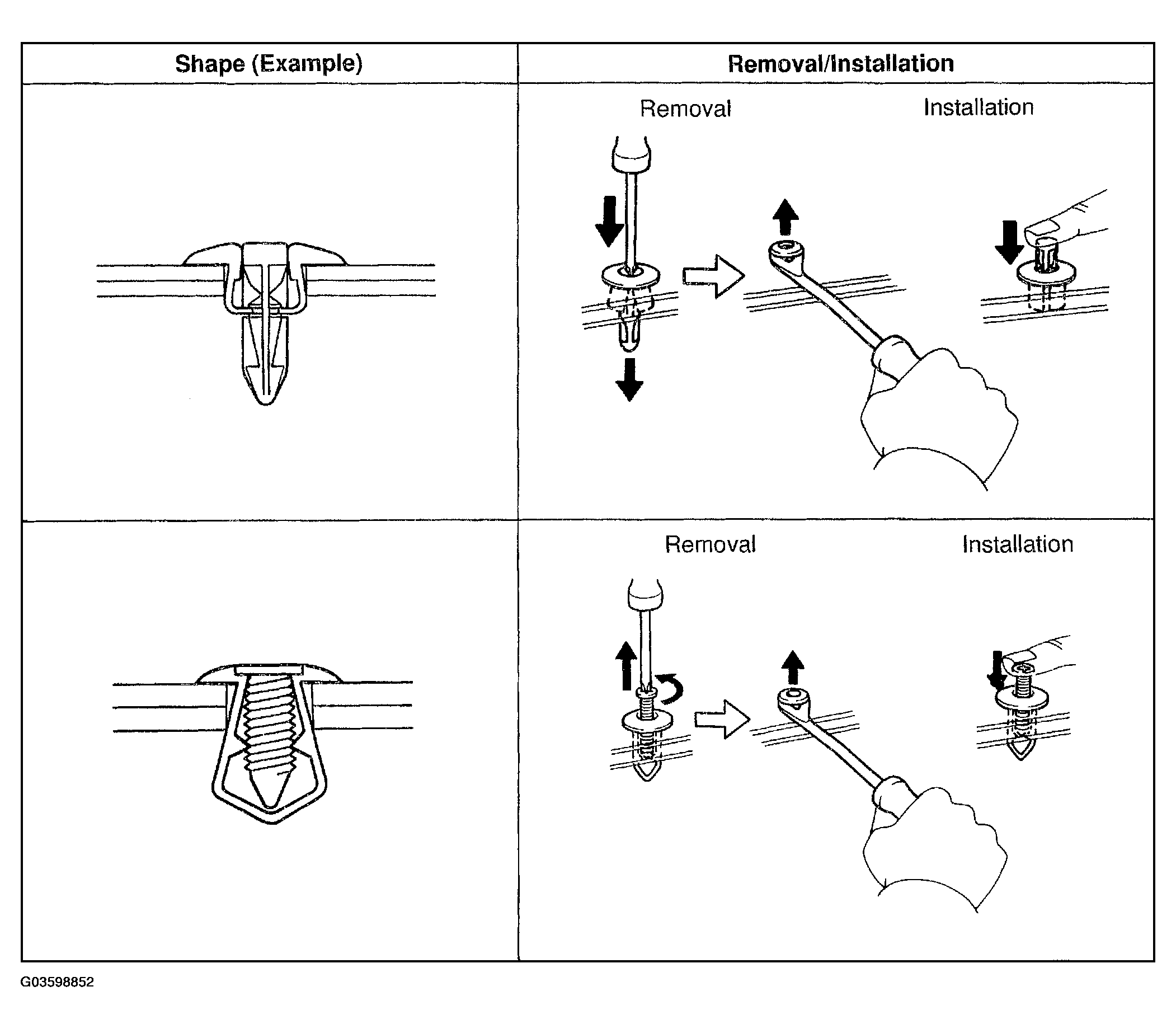

Fig 2: Replacing Clip (1 Of 2)
