Seat Heater System: Location

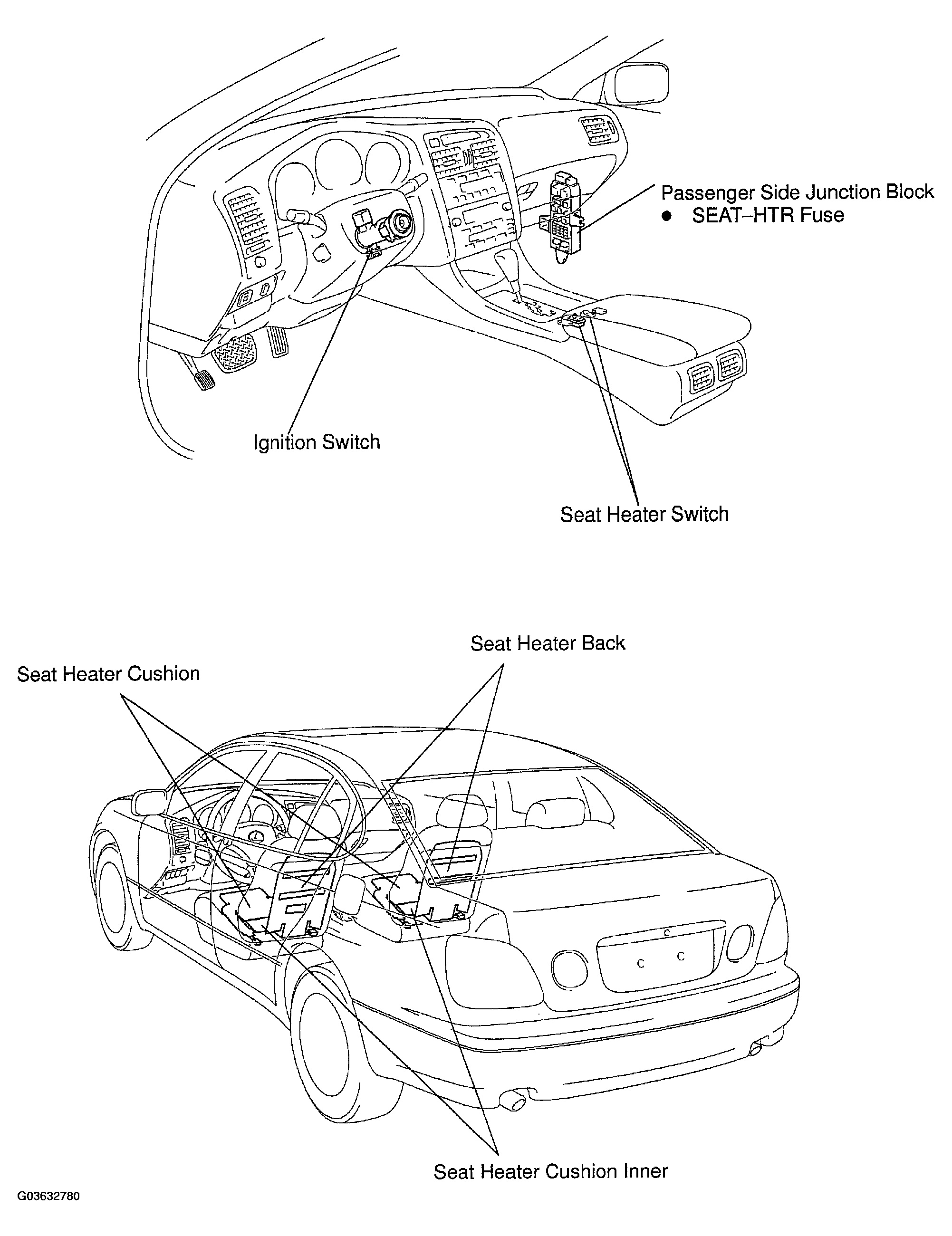

Fig 1: Identifying Seat Heater System Component Location
G03632780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
