Testing Procedure

For wiring diagram, see Fig 1. For testing procedure, see Fig 2 and Fig 3 .

Fig 1: Wiring Diagram Hydraulic Brake Booster Pump Motor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

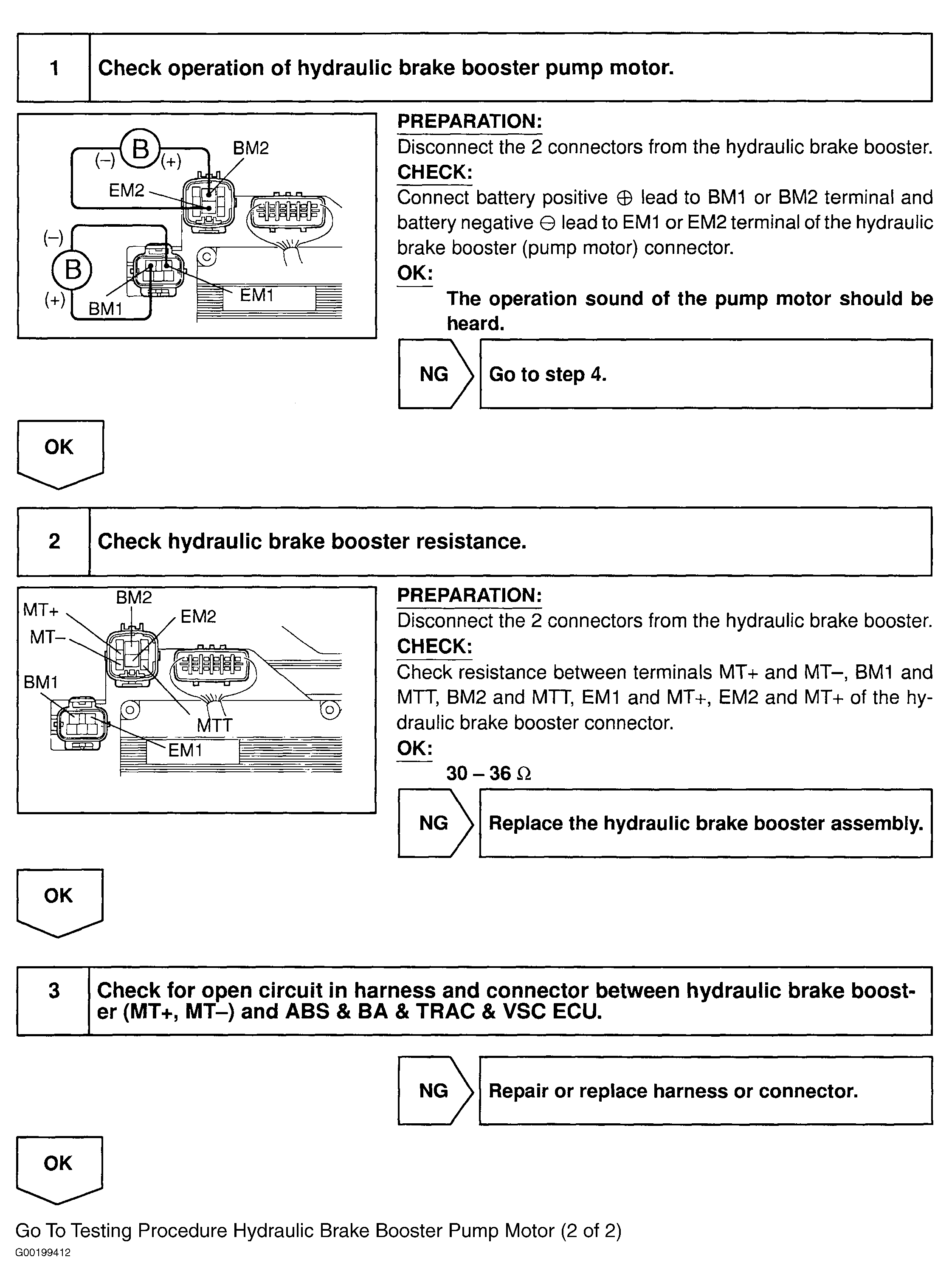

Fig 2: Testing Procedure Hydraulic Brake Booster Pump Motor (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

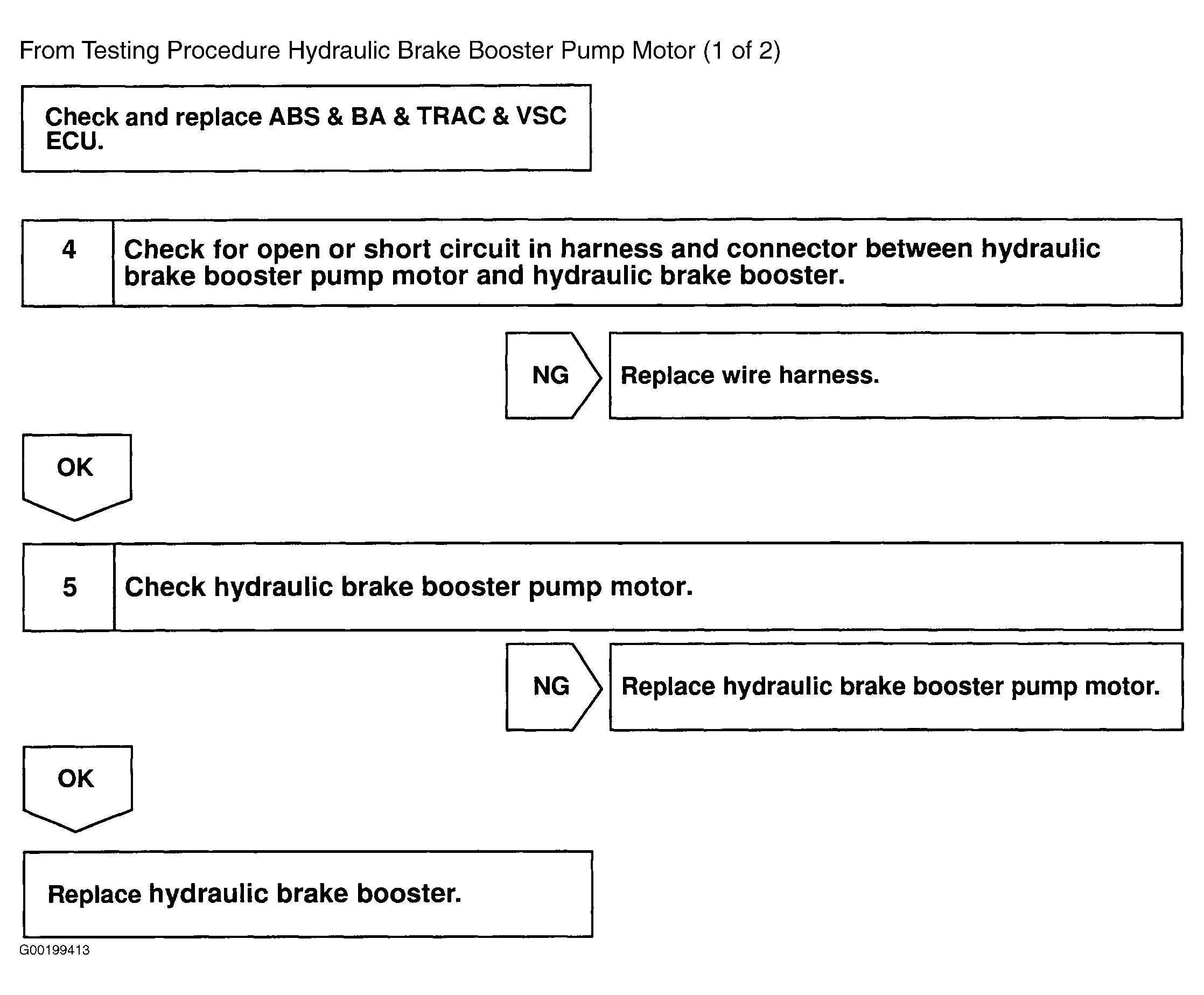

Fig 3: Testing Procedure Hydraulic Brake Booster Pump Motor (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
