Power Source: Location

The vehicle shown in this illustration is "GS430".
All components of "GS300" other than the ones used for engine are same as "GS430".

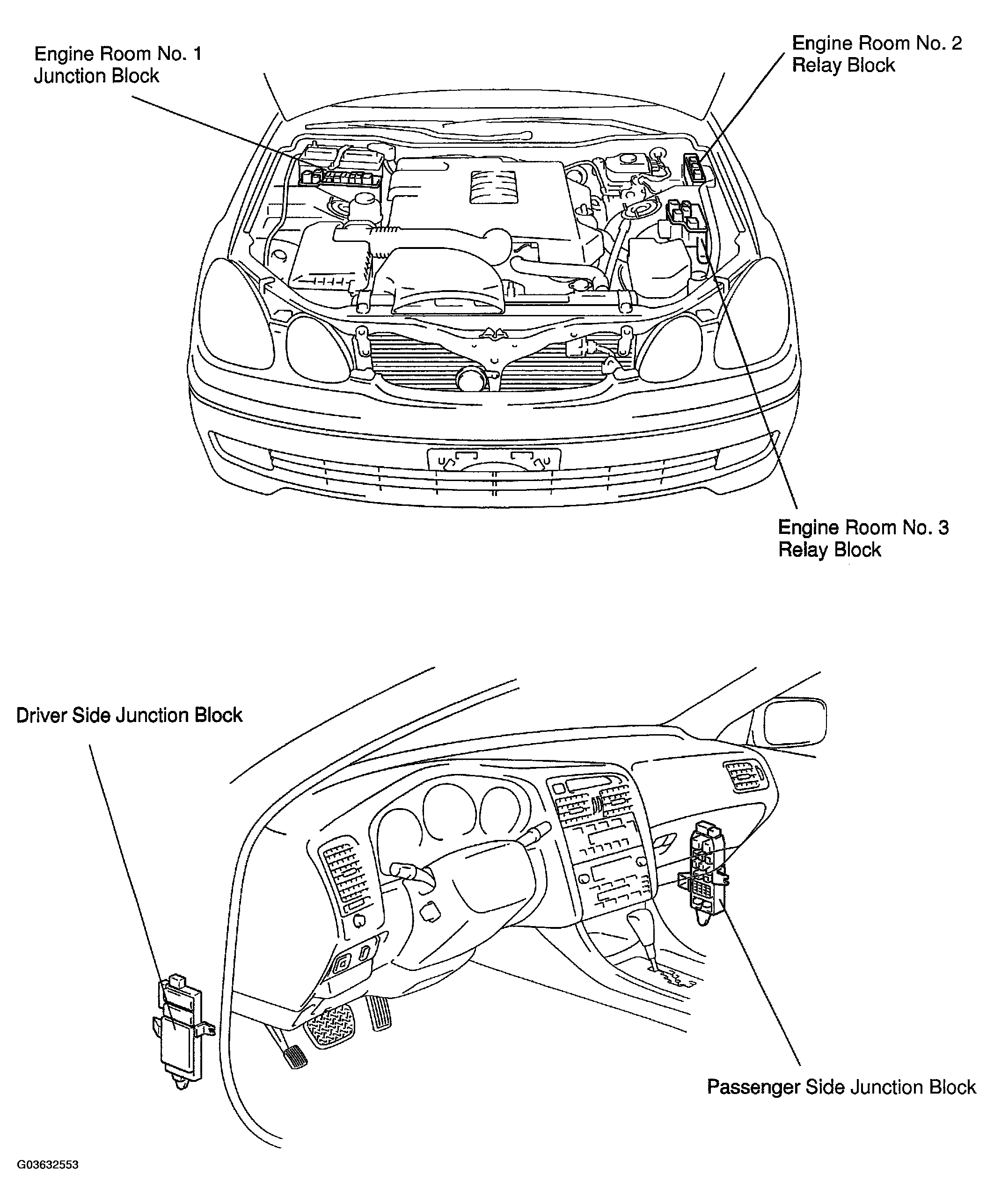

Fig 1: Identifying Power Source Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

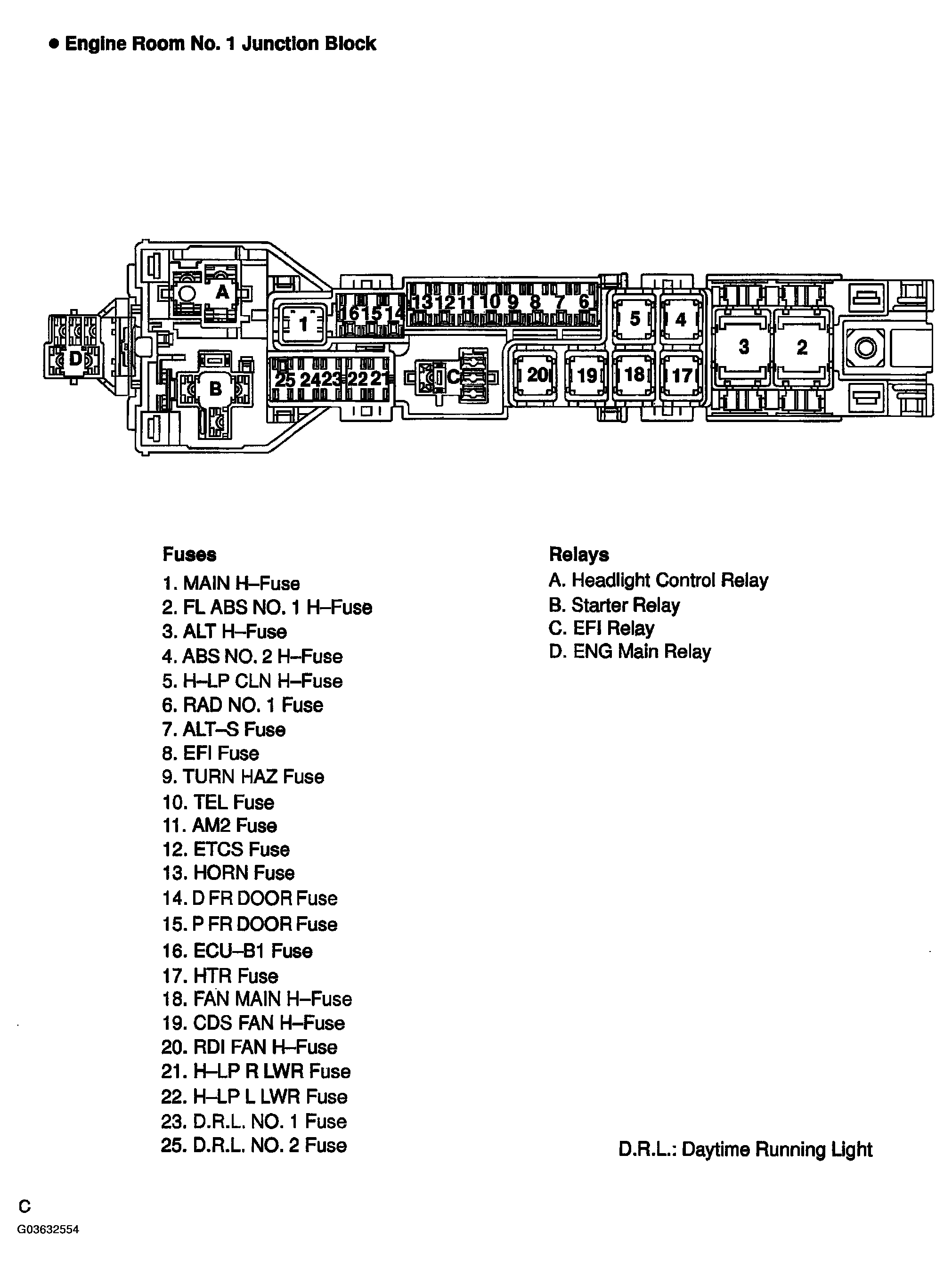

Fig 2: Identifying Engine Room Number 1 Junction Block
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

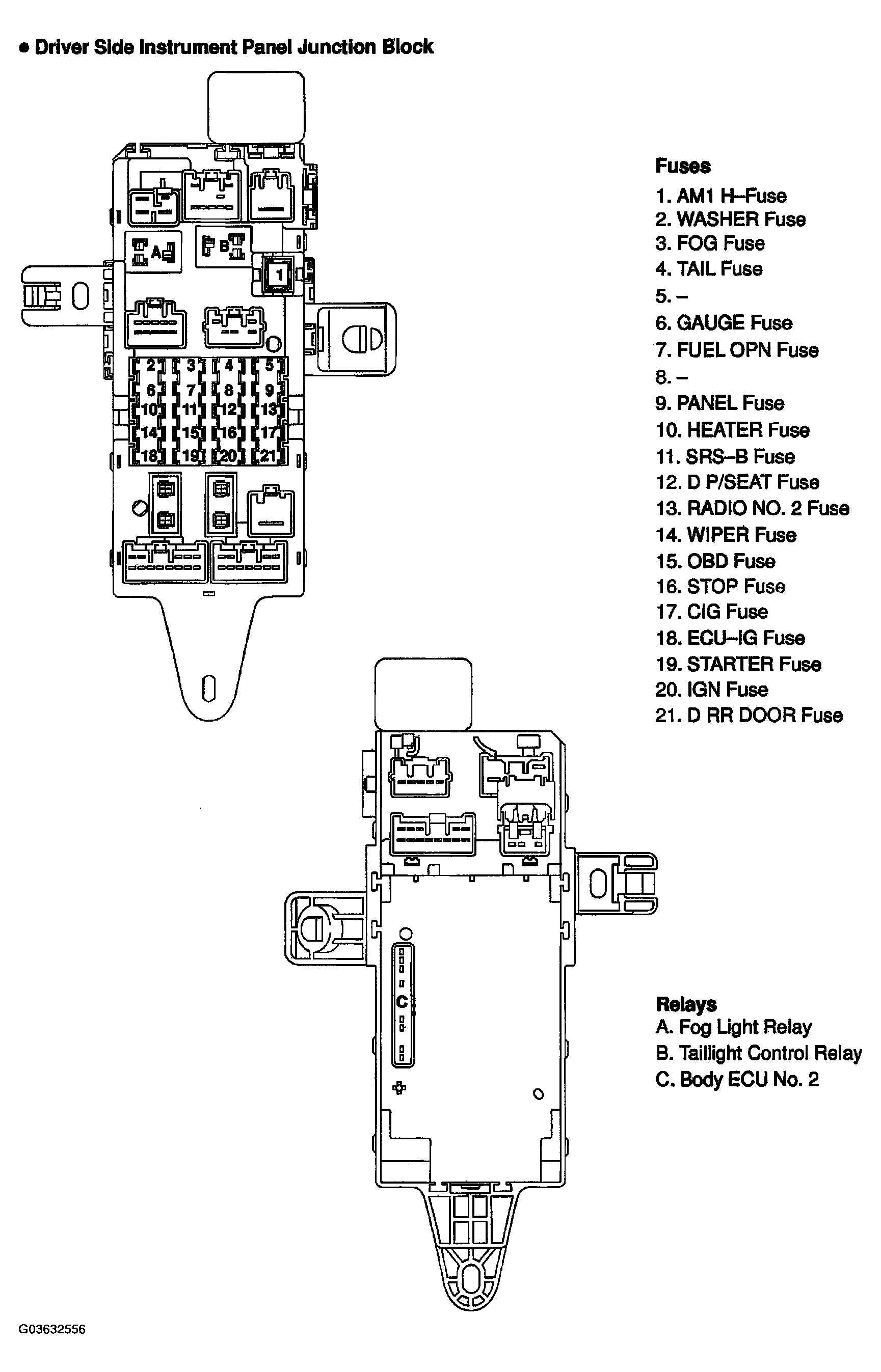

Fig 3: Identifying Driver Side Instrument Block Junction Block
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

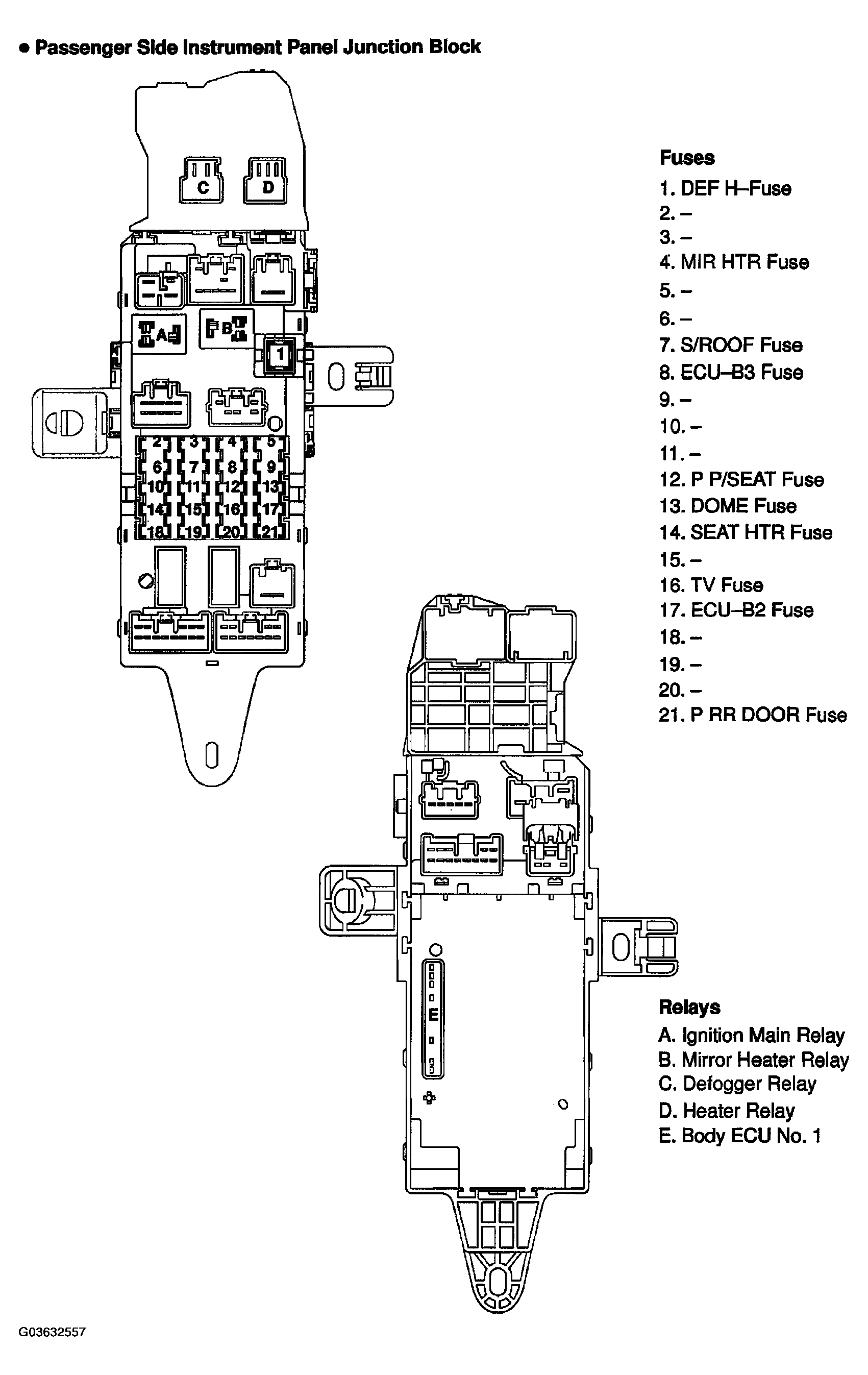

Fig 4: Identifying Passenger Side Instrument Block Junction Block (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Passenger Side Instrument Block Junction Block (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
