Home › Lexus › 2003 › GS 430 › Repair and Diagnosis › Engine Performance › Fuel Delivery › Fuel Lid Opener System › Location

Fuel Lid Opener System: Location

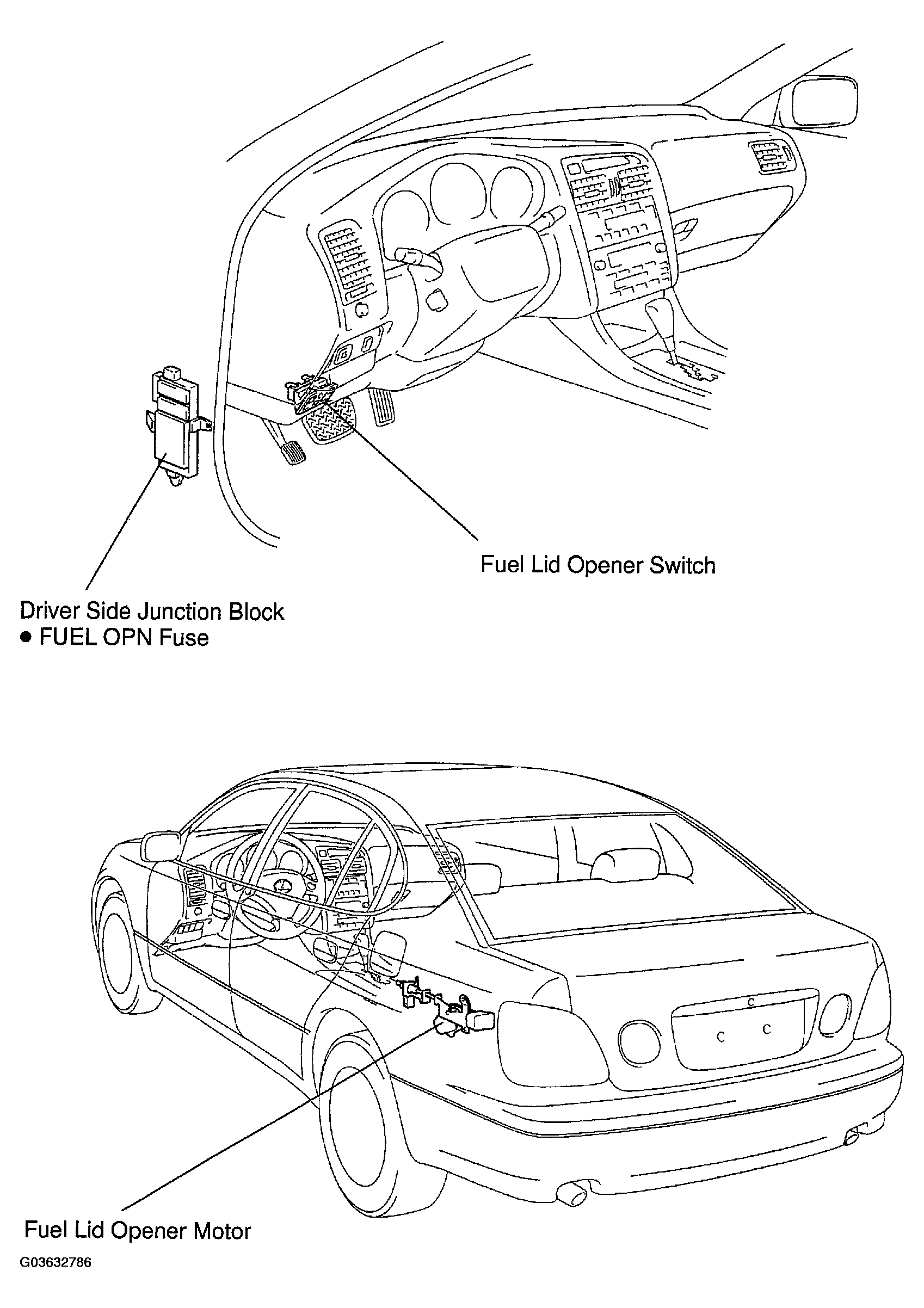

Fig 1: Identifying Component Location Of Fuel Lid Opener System
G03632786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
