Rear Wheel Alignment: Inspection

WARNING: This page is about a different car, the 2003 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

MEASURE VEHICLE HEIGHT (See FRONT WHEEL ALIGNMENT )
INSTALL CAMBER-CASTER-KINGPIN GAUGE ONTO WHEEL ALIGNMENT TESTER
Follow the specific instructions of the equipment manufacturer.
INSPECT TOE-IN

Fig 2: Toe-In Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Measuring Toe-In
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST CAMBER AND TOE-IN
1. Measure the lengths of the toe control link and No. 2 lower suspension arm, as shown in the illustration.
  Length: A - B = 4.0 mm (0.16 in.) or less

  If they are not within the specifications, adjust the lengths of them by turning the adjusting cam, as shown, until (A-B) is less than 4.0 mm (0.16 in.).

  Fig 4: Measuring Lengths A & B
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the camber and toe-in.
3. Adjust the camber.
  1. Loosen the camber adjusting cam nut of lower suspension arm No. 2.
  2. Turn the camber adjusting cam of lower suspension arm No. 2 and adjust camber.
    HINT:

    Camber changes about 5.0' (0.08°) with each graduation of the cam.
  3. Torque the camber adjusting cam nut.
  Torque: 110 N.m (1,120 kgf.cm, 81 ft.lbf)

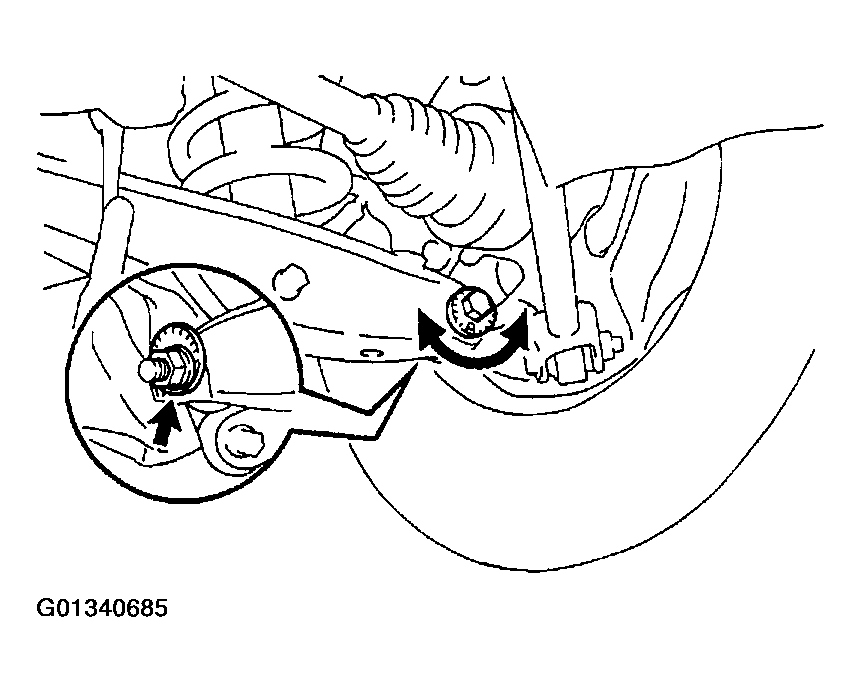

  Fig 5: Adjusting Camber
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Adjust the toe-in.
1. Loosen the camber adjusting cam nut of toe control link.
2. Turn the camber adjusting cam of toe control link and adjust toe-in.
  HINT:

  Camber changes about 5.0' (0.08°) with each graduation of the cam.

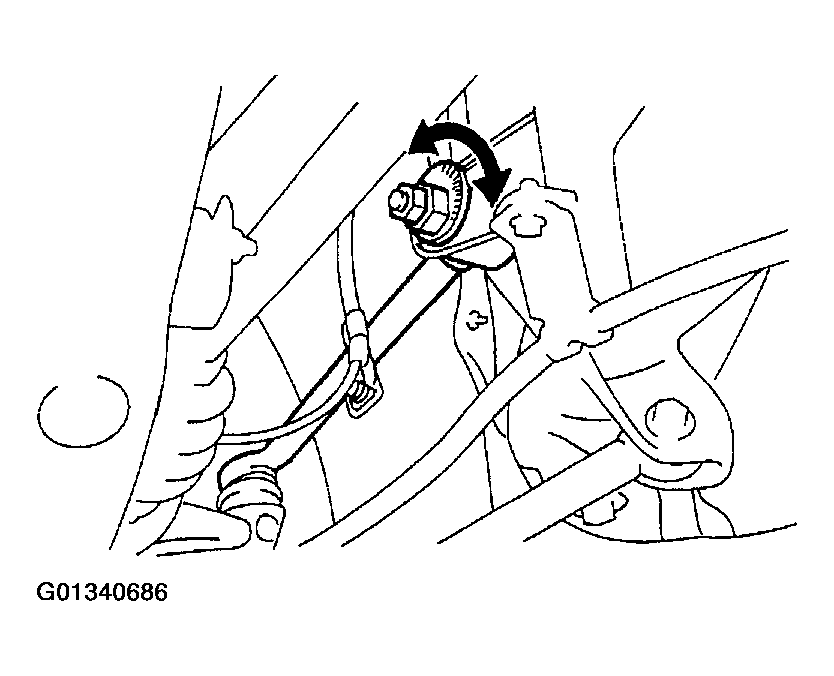

  Fig 6: Adjusting Toe Control Link
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Torque the camber adjusting cam nut.
Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)
