Section 191 (Body No. 1 Control System)
›
Terminals Of Ecu
Terminals Of Ecu
WARNING:
This page is about a different car, the 2004 Lexus GS 430 and 2004 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

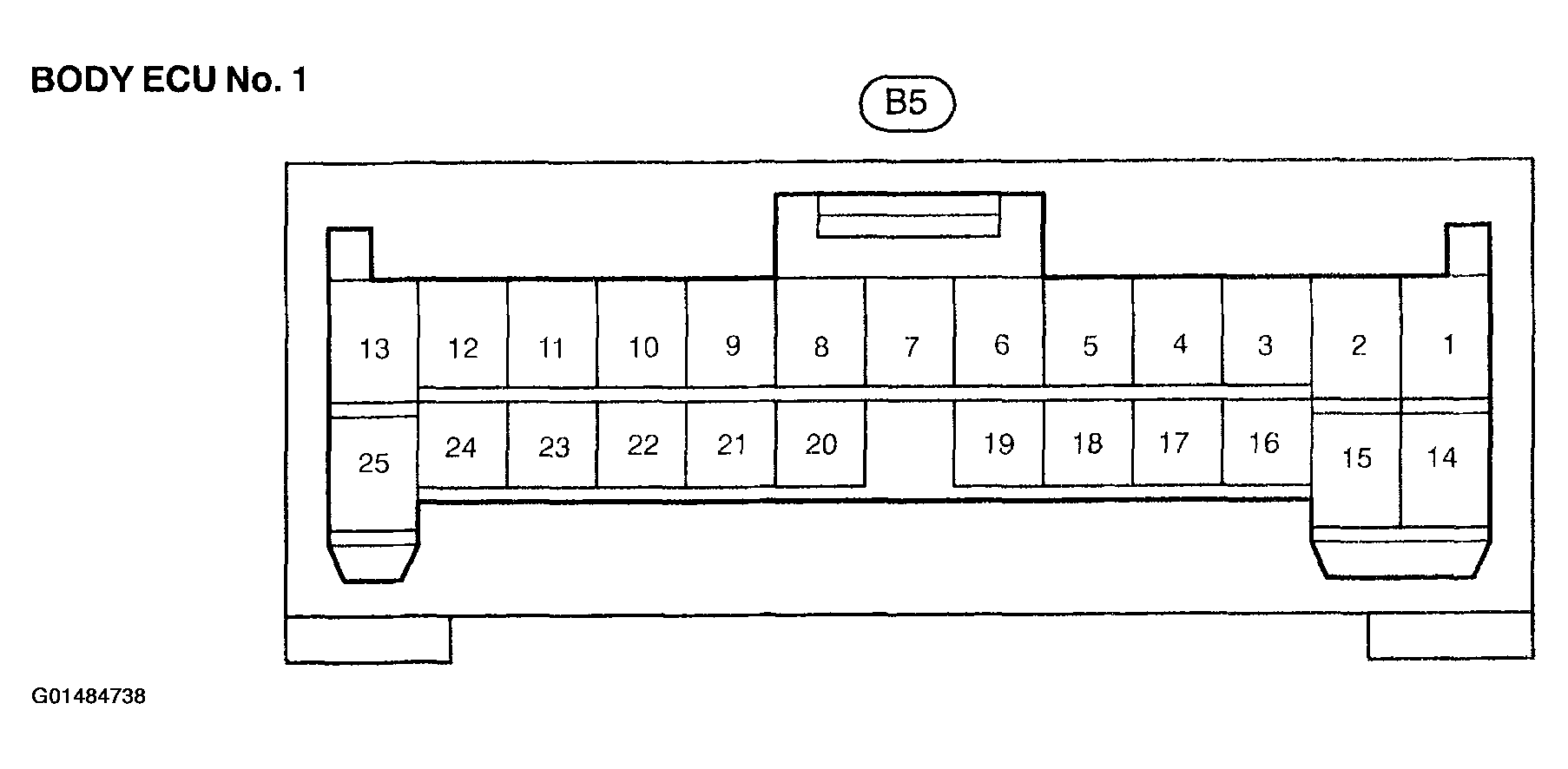

Fig 1: Identifying Terminals Of ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

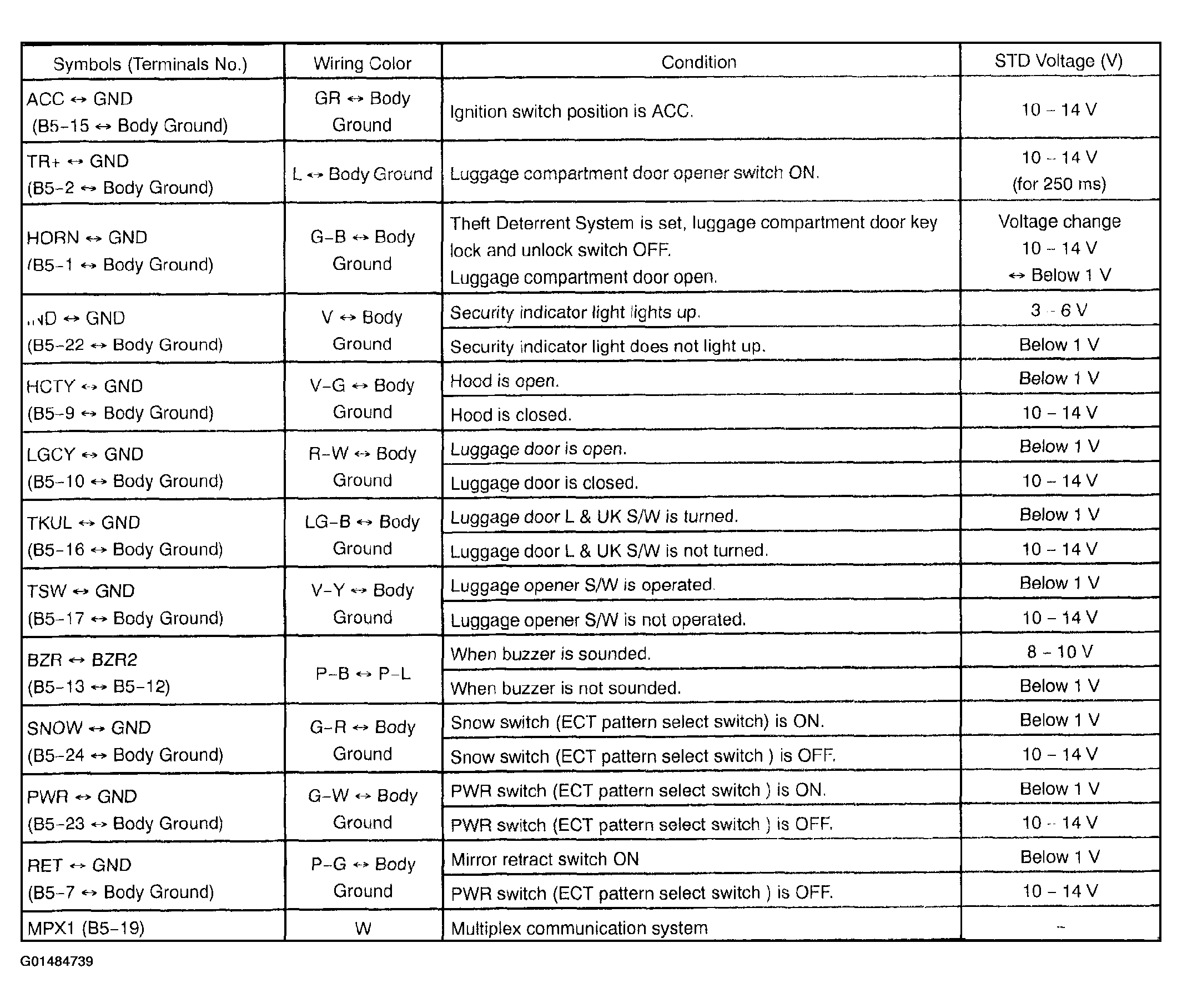

Fig 2: Symbols Specification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
