Section 266 (Audio & Visual System): Location

WARNING: This page is about a different car, the 2003 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

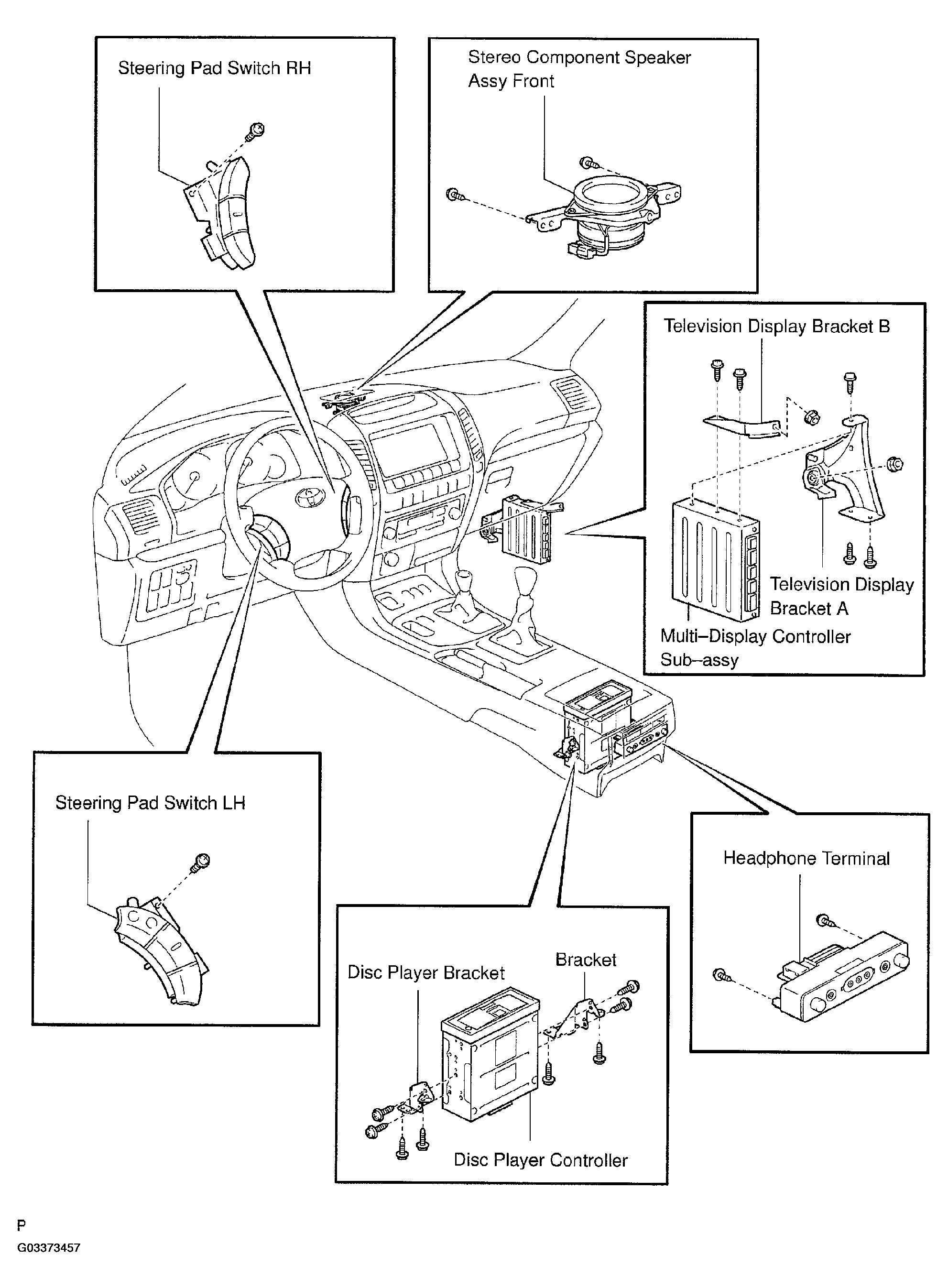

Fig 1: Locating Audio & Visual System Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

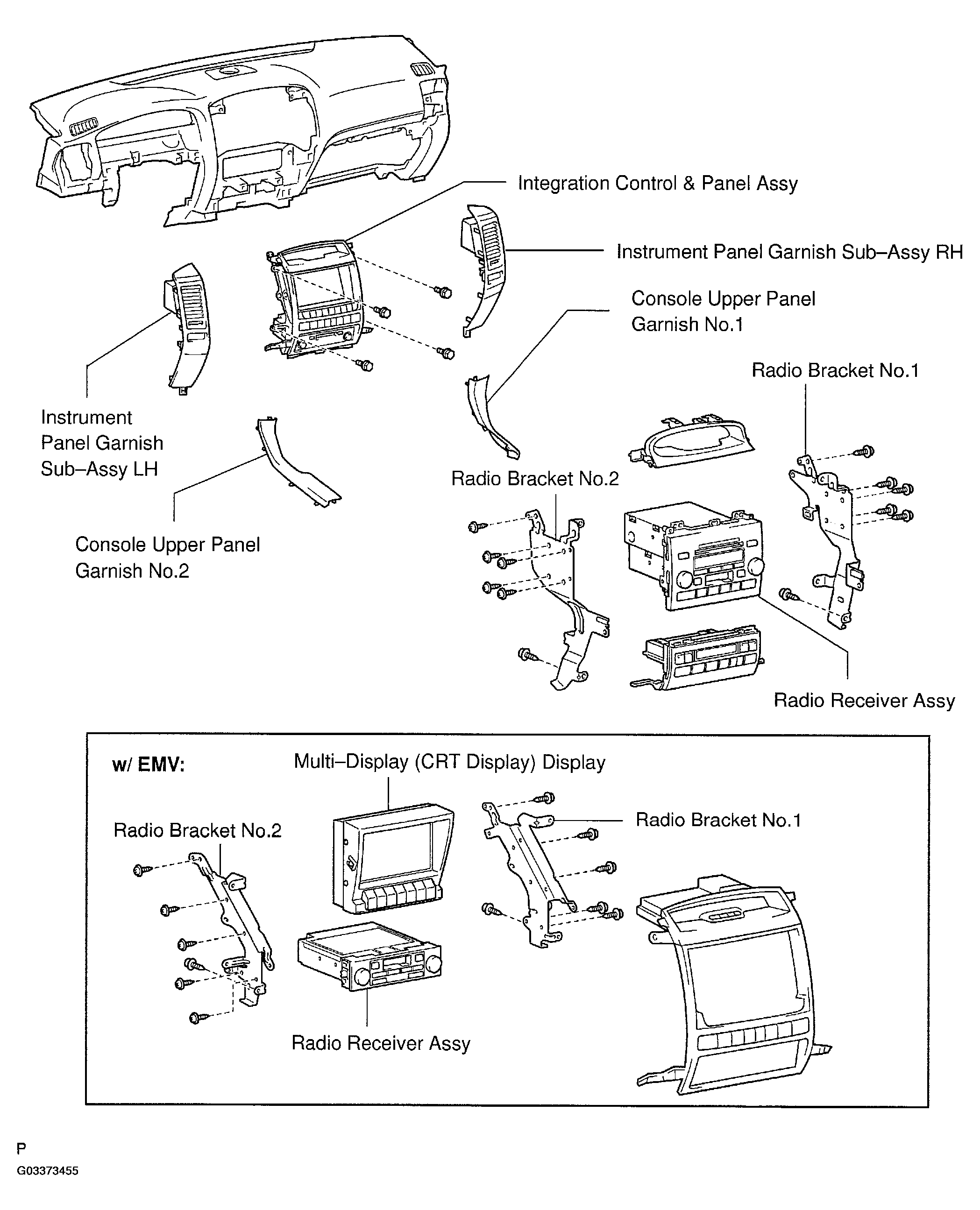

Fig 2: Locating Audio & Visual System Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

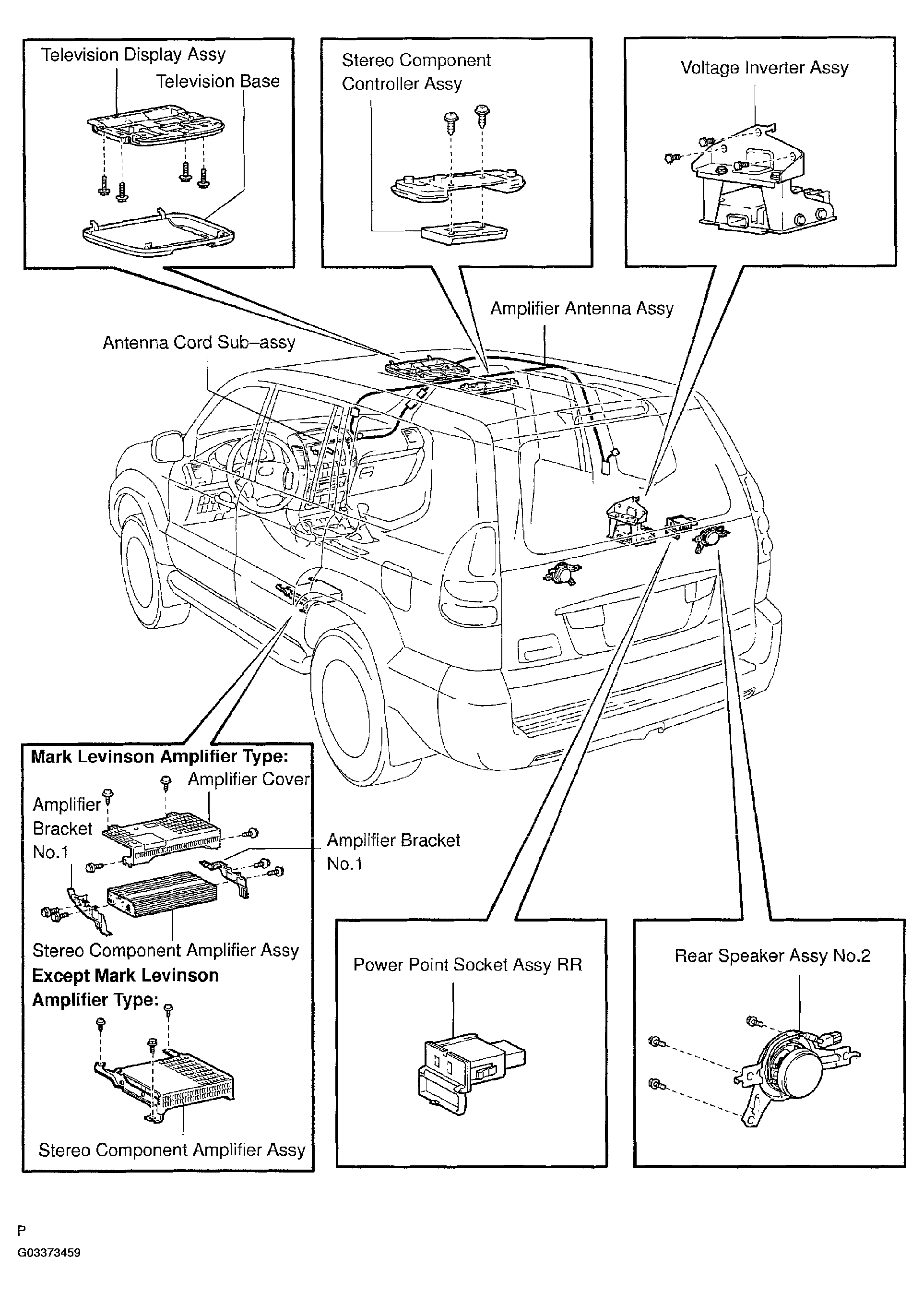

Fig 3: Locating Audio & Visual System Components (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

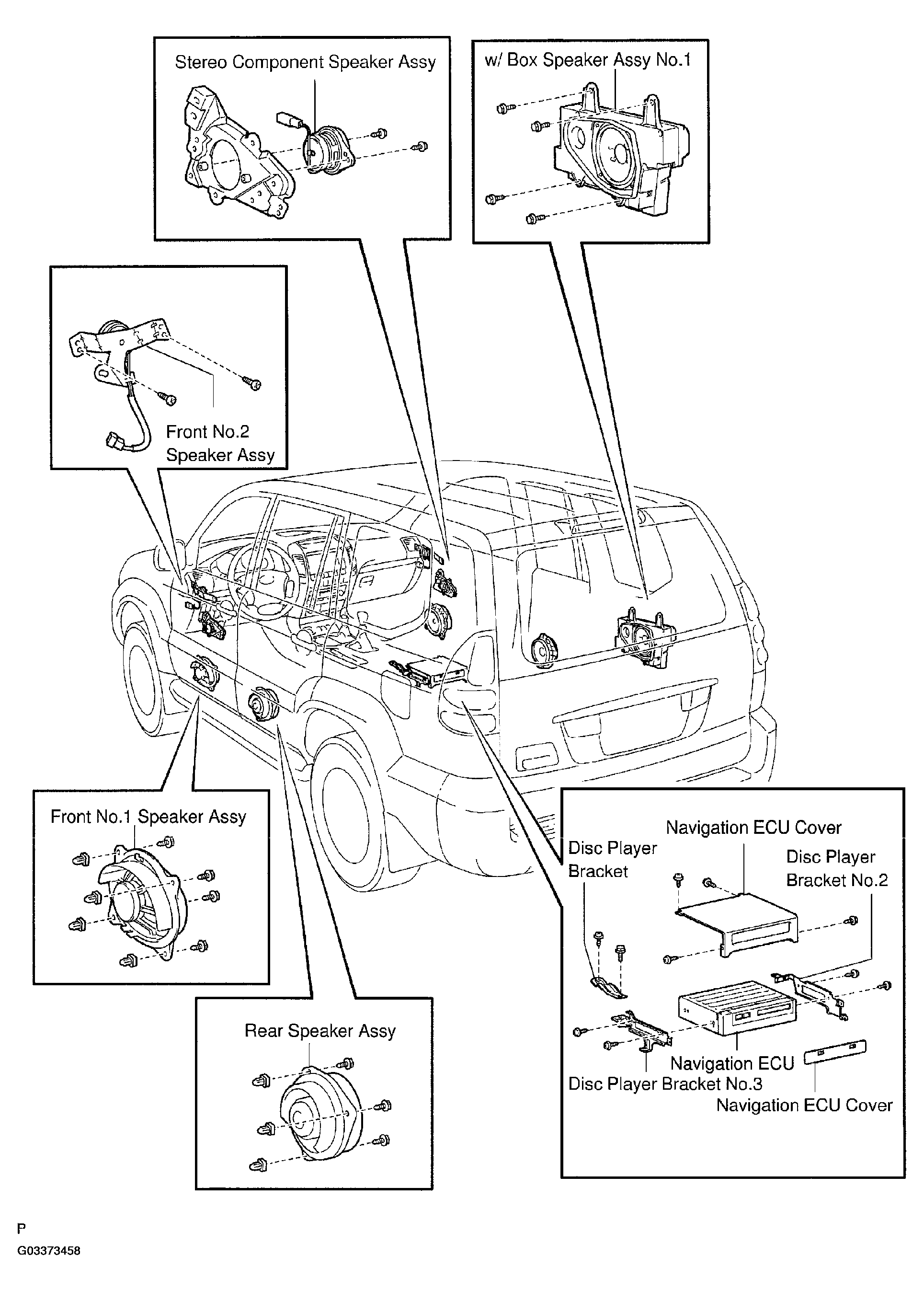

Fig 4: Locating Audio & Visual System Components (4 Of 5)

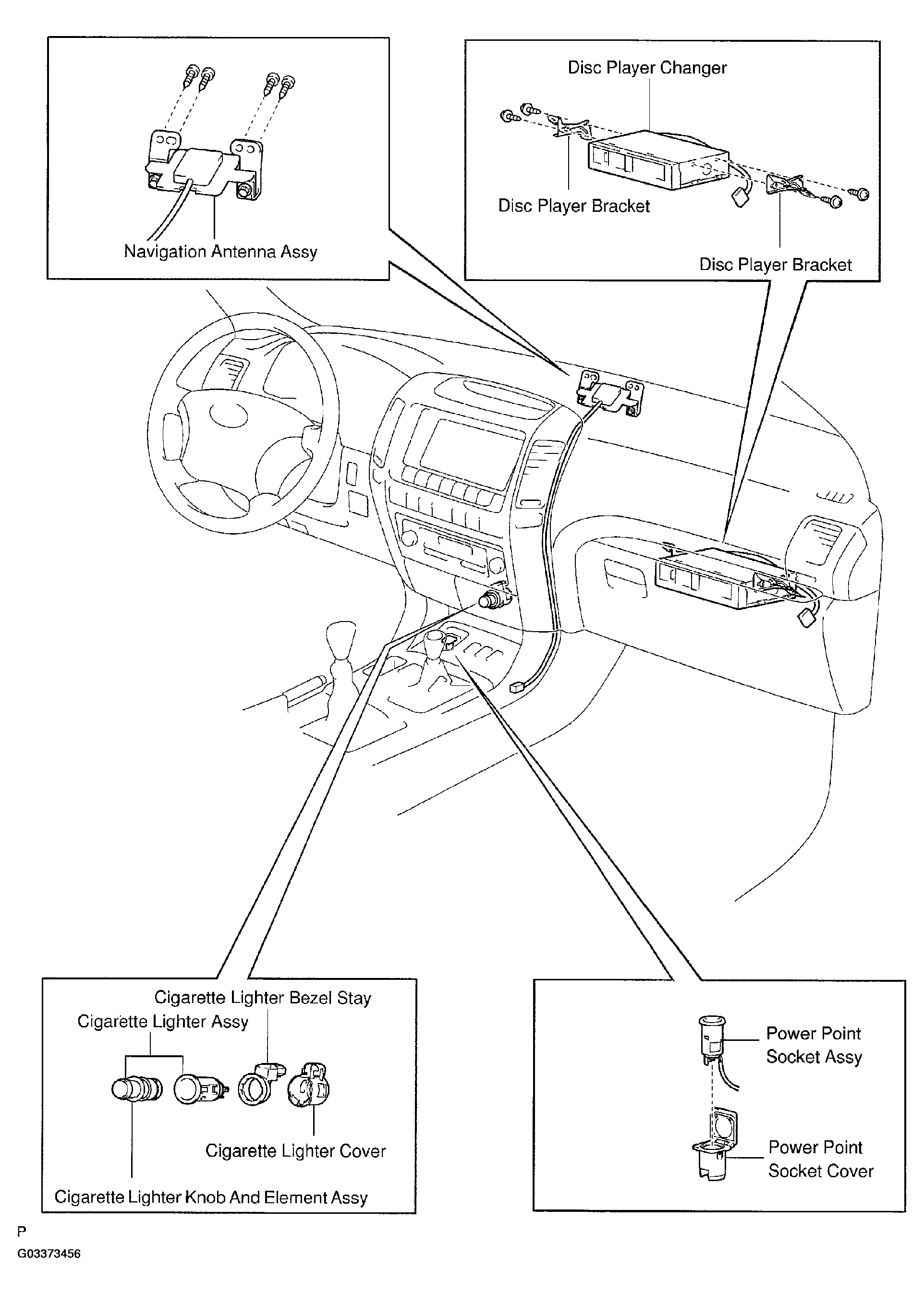

Fig 5: Locating Audio & Visual System Components (5 Of 5)
