On-Vehicle Inspection
WARNING: This page is about a different car, the 2003 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

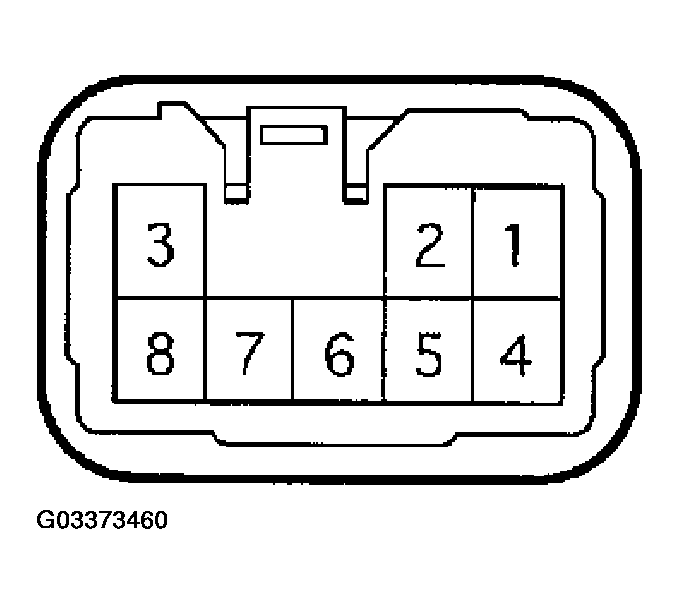

- INSPECT VOLTAGE INVERTER ASSY
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 TESTER CONNECTION SPECIFIED CONDITION
| Tester connection |
Condition |
Specified condition |
| 1 <==> 4 |
IG switch ON |
10-16 V |
| 3 <==> 4 |
IG switch ON, main switch ON |
Pulse generation |
| 4 <==> Body Ground |
Always |
Continuity |
| 7 <==> 4 |
IG switch ON, main switch ON |
Pulse generation |
