Section 272 (Back Door): Components

WARNING: This page is about a different car, the 2003 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

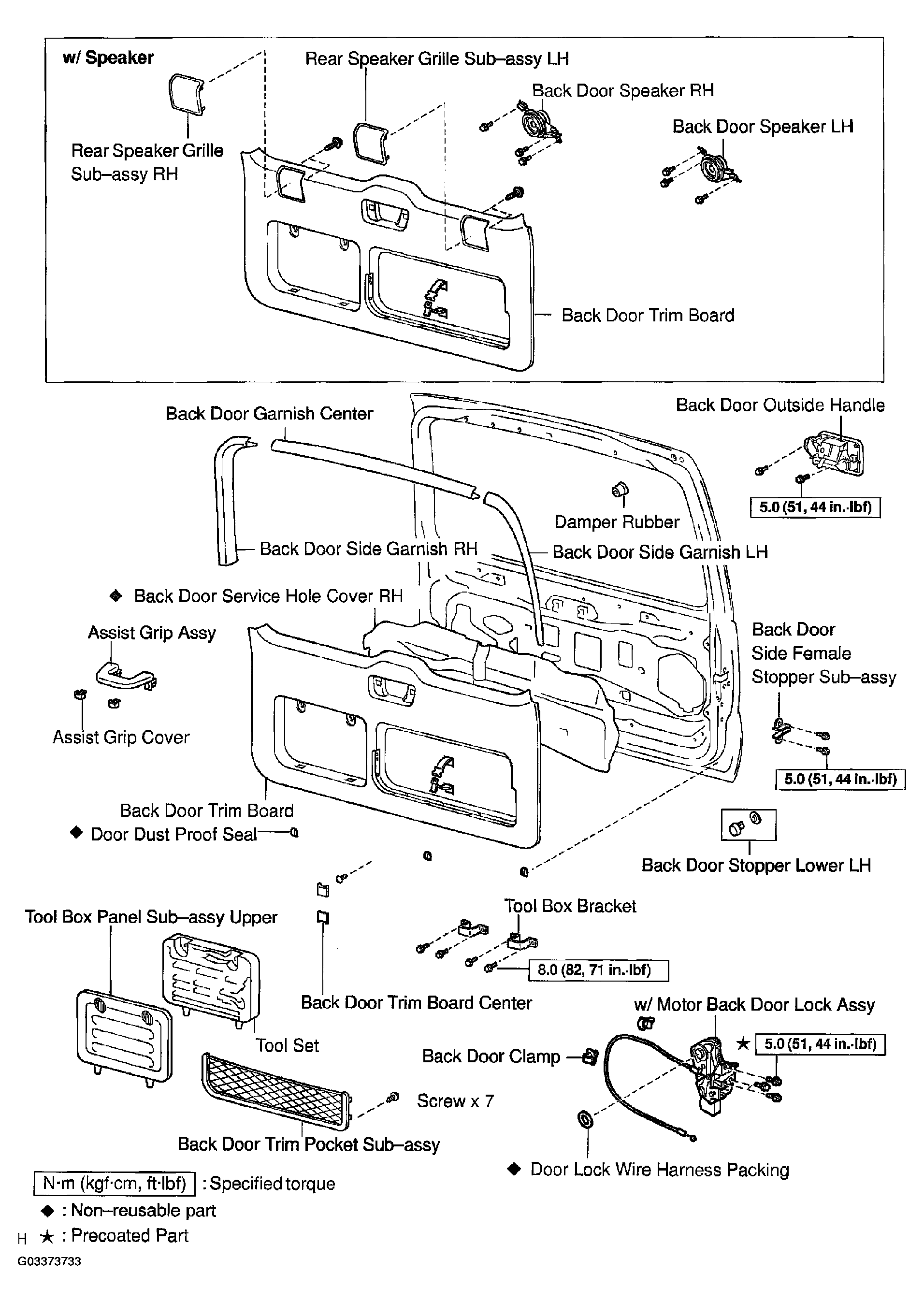

Fig 1: Exploded View Of Back Door (1 Of 2)
