Section 359 (Power Source): Location

WARNING: This page is about a different car, the 2004 Lexus GS 430 and 2004 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

The vehicle shown in this illustration is "GS430".
All components of "GS300" other than the ones used for engine are same as "GS430".

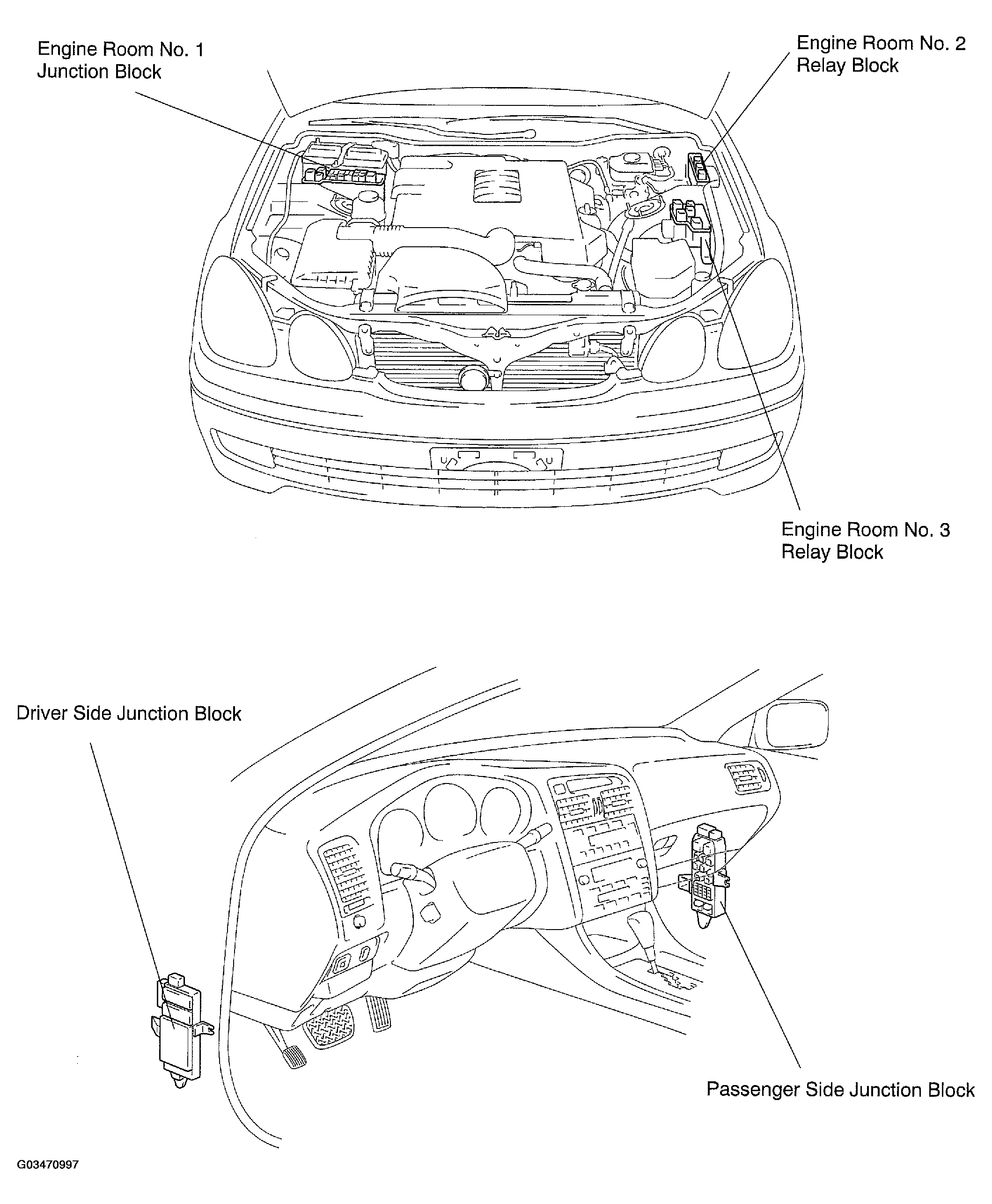

Fig 1: Identifying Power Source Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

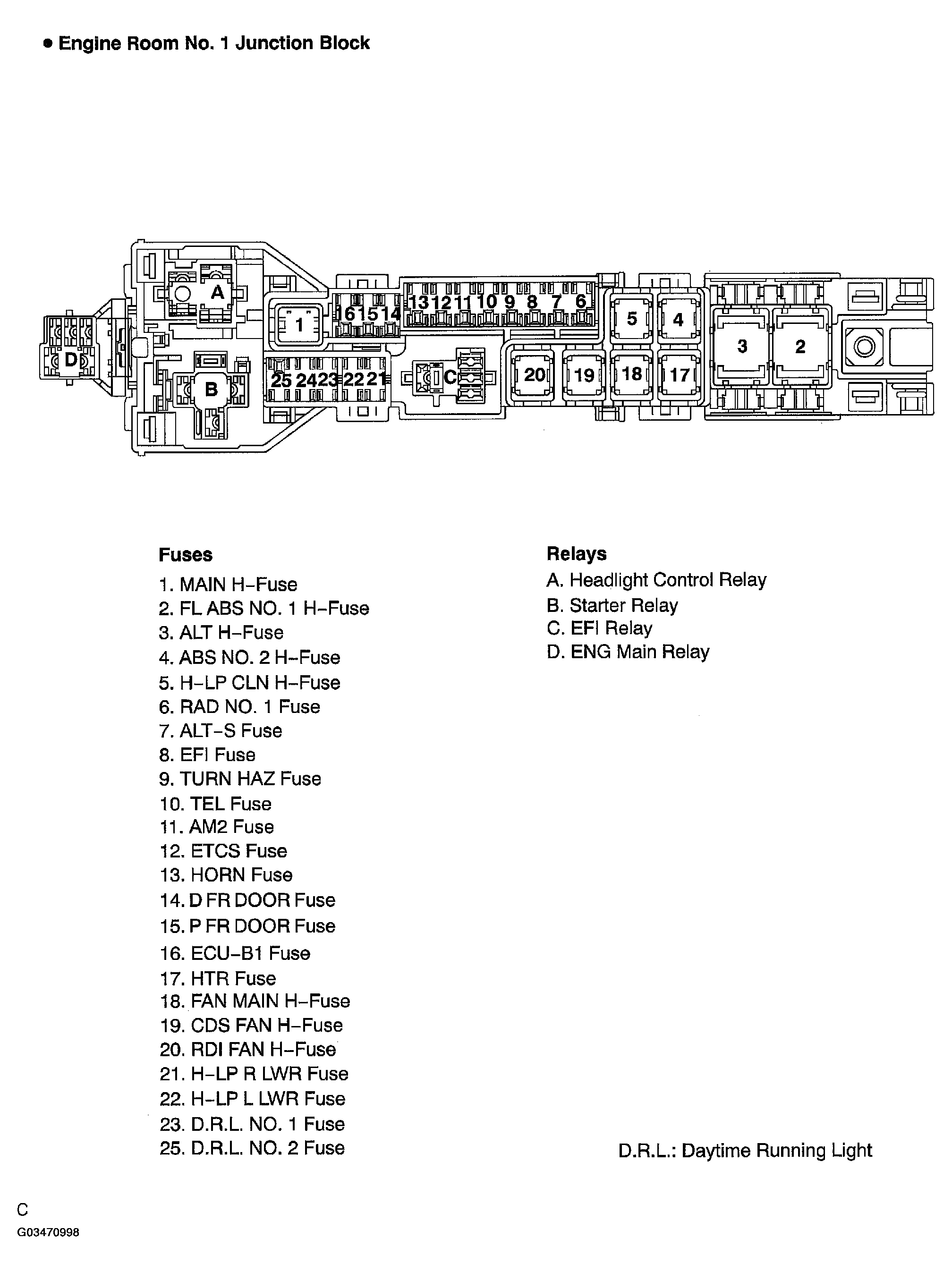

Fig 2: Engine Room Number - 1 Junction Block

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

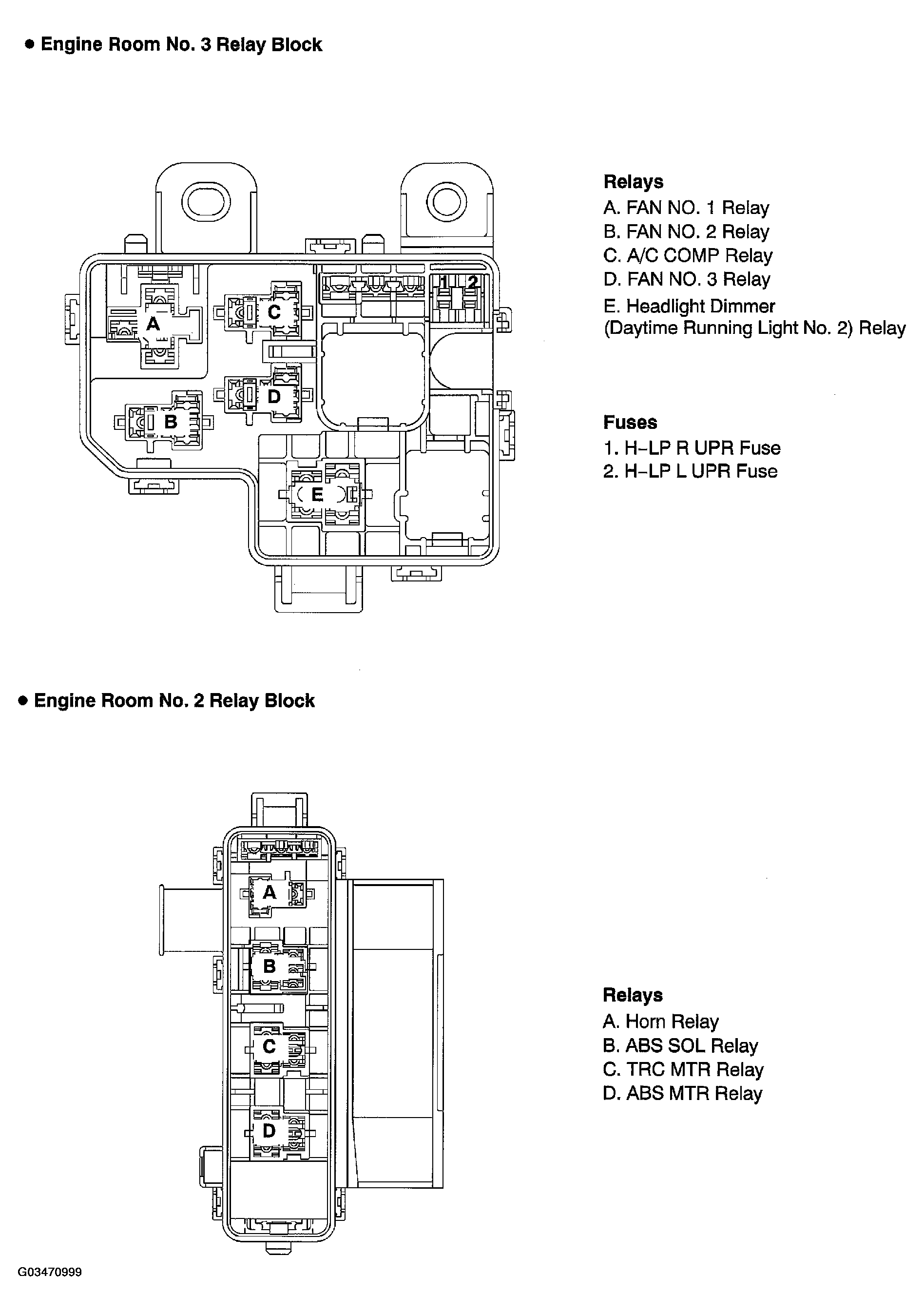

Fig 3: Engine Room Number - 2 Junction Block

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Engine Room Number - 3 Junction Block

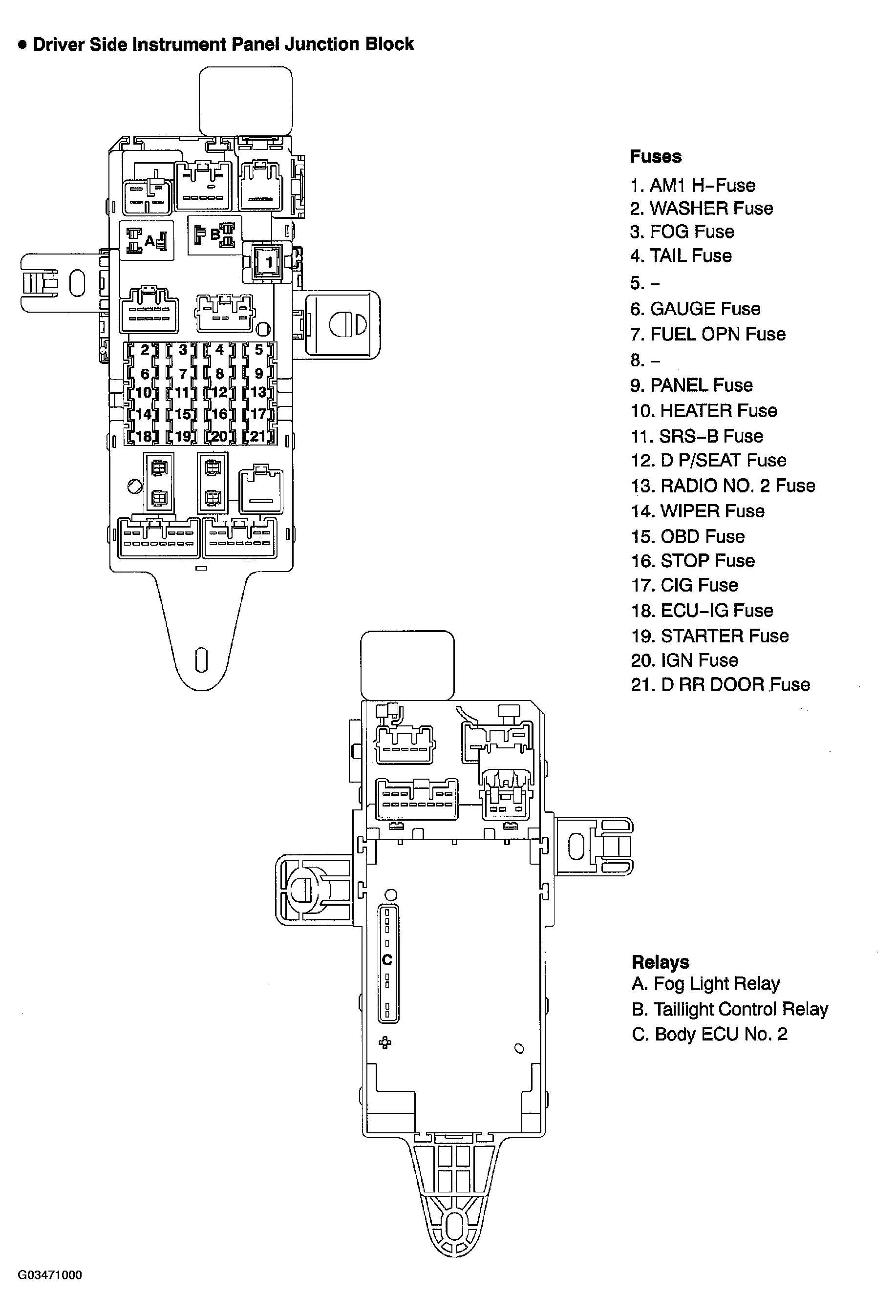

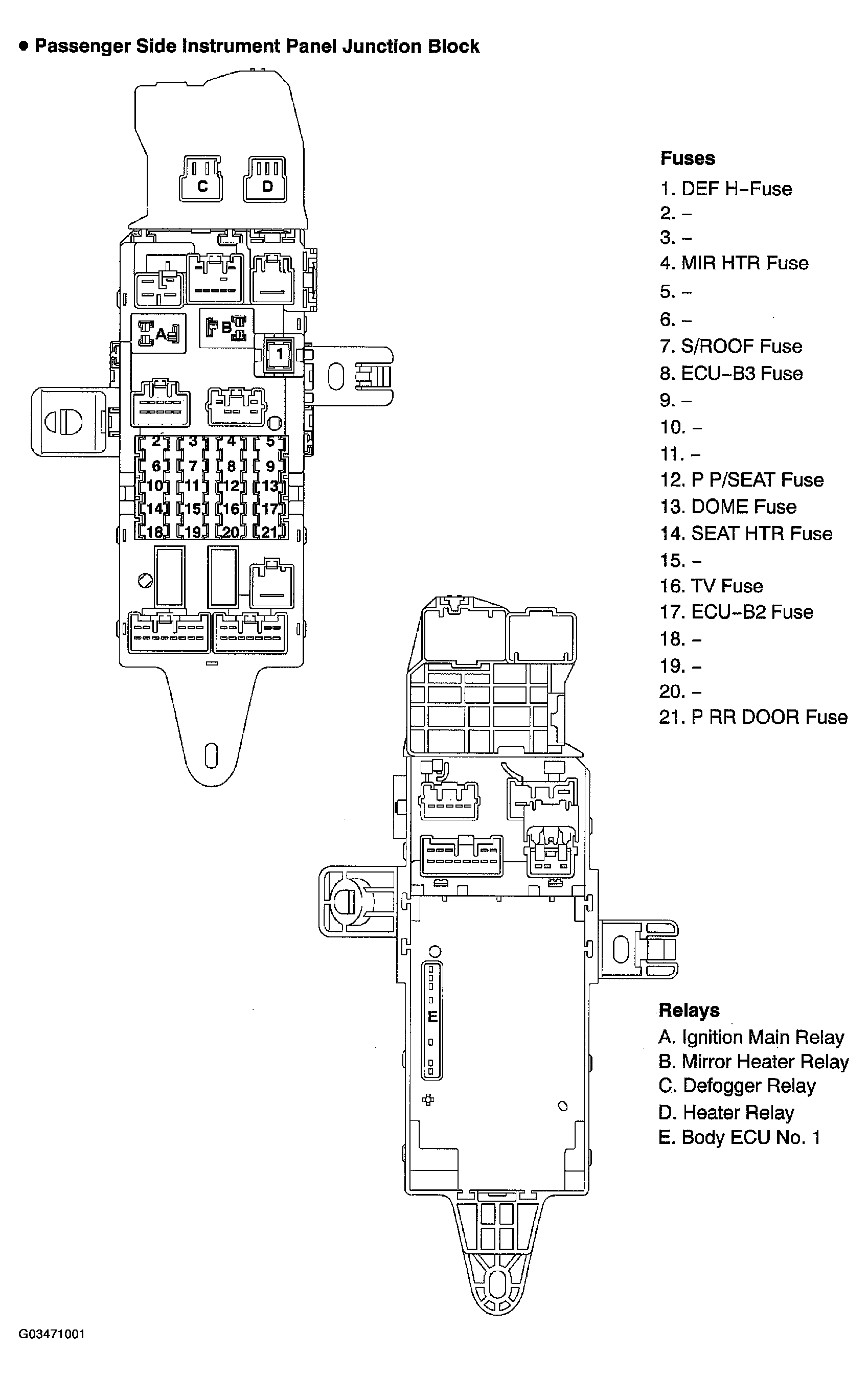

Fig 5: Identifying Driver Side Instrument Panel Junction Block
