Power Steering Gear: Components

WARNING: This page is about a different car, the 2005 Lexus GS 430 and 2005 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

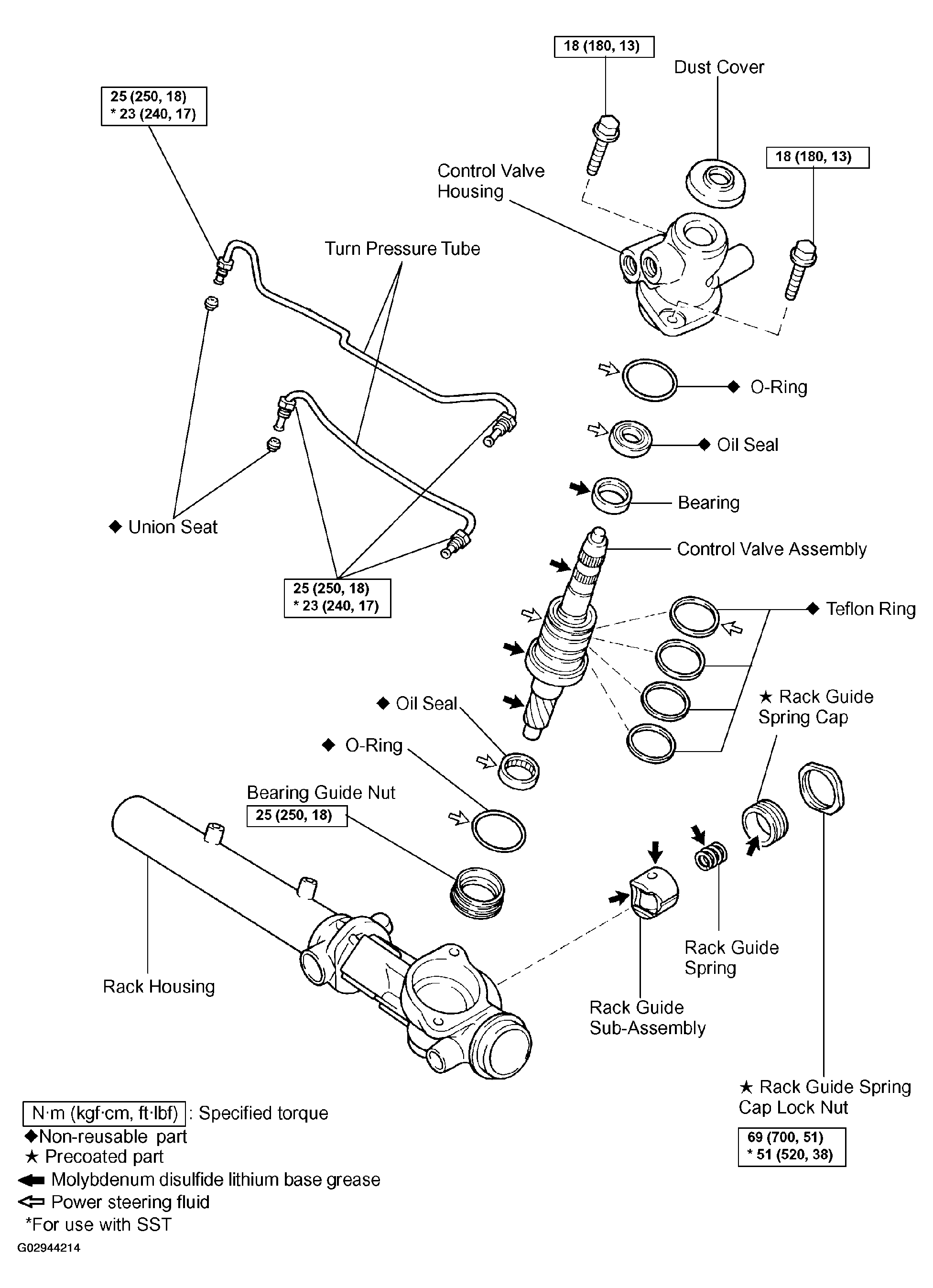

Fig 1: Power Steering Gear Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

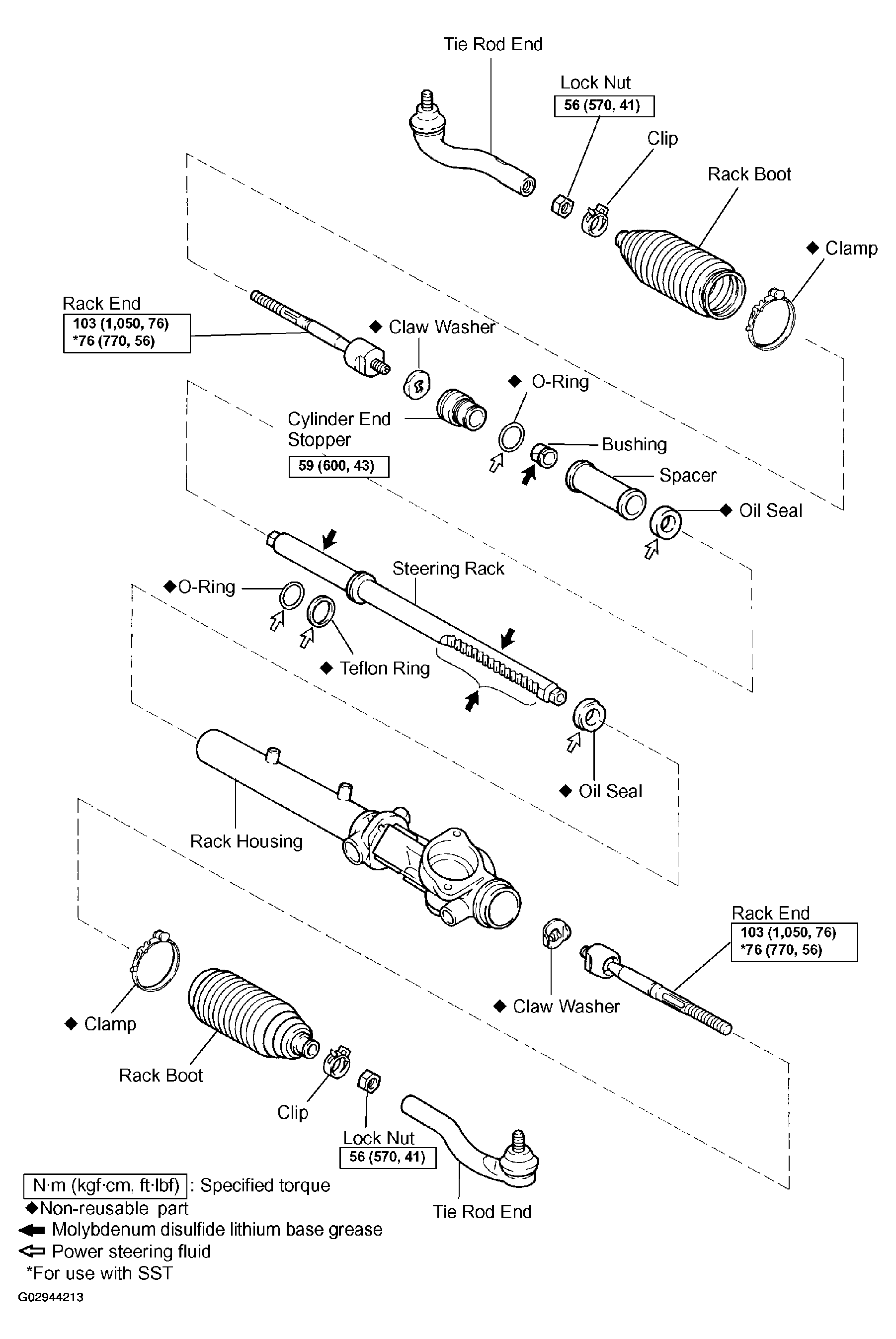

Fig 2: Power Steering Gear Replacement Components Torque Specifications Table (2 Of 3)

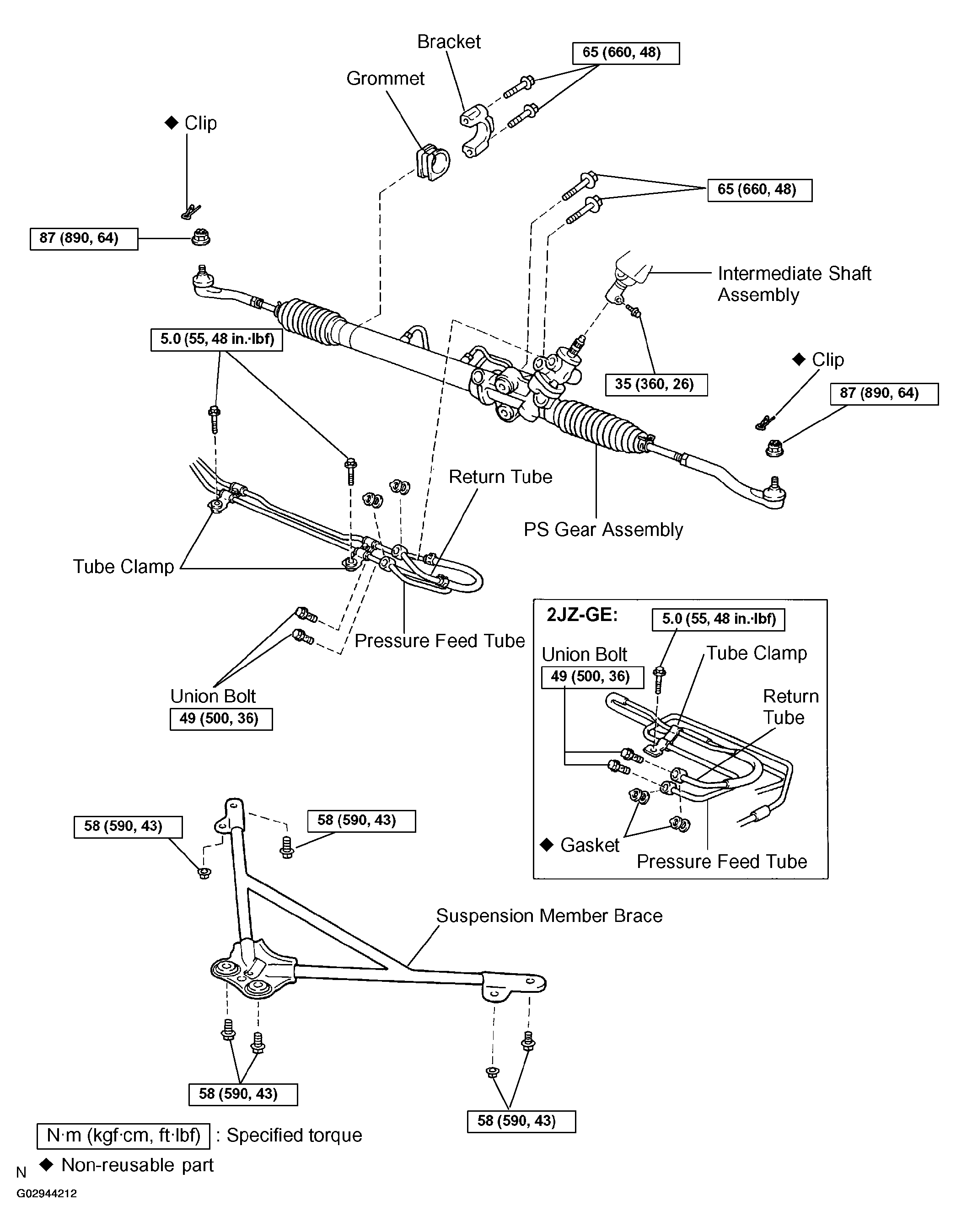

Fig 3: Power Steering Gear Replacement Components Torque Specifications Table (3 Of 3)
