Section 445 (Combination Meter): Location

WARNING: This page is about a different car, the 2005 Lexus GS 430 and 2005 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

The vehicle shown in Fig 1 & Fig 2 are "GS430".
All components of "GS300" other than the ones used for engine are same as "GS430".

Fig 1: Identifying Combination Meter Components Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

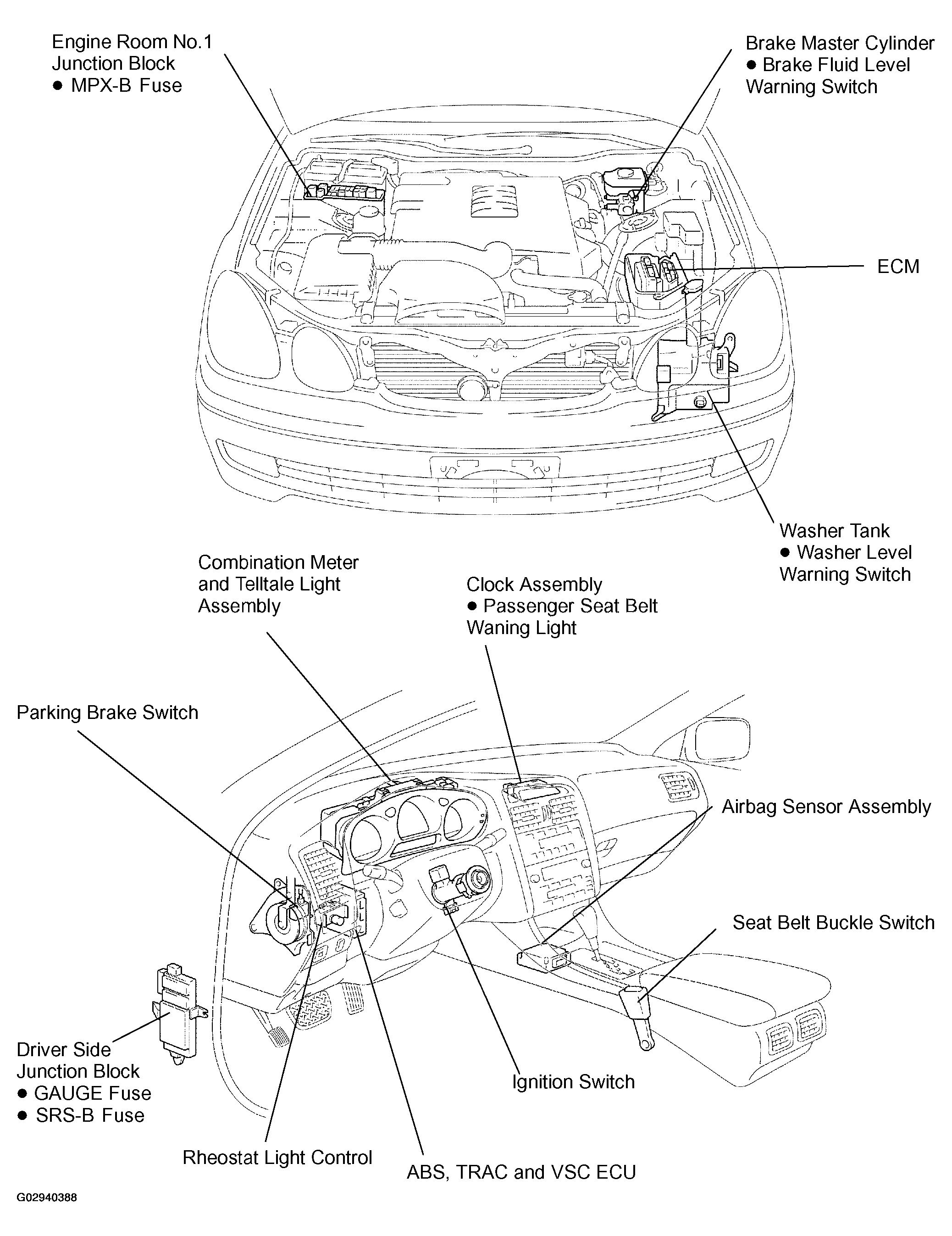

Fig 2: Identifying Combination Meter Components Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
