Section 459 (Sliding Roof System): Components

WARNING: This page is about a different car, the 2005 Lexus GS 430 and 2005 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

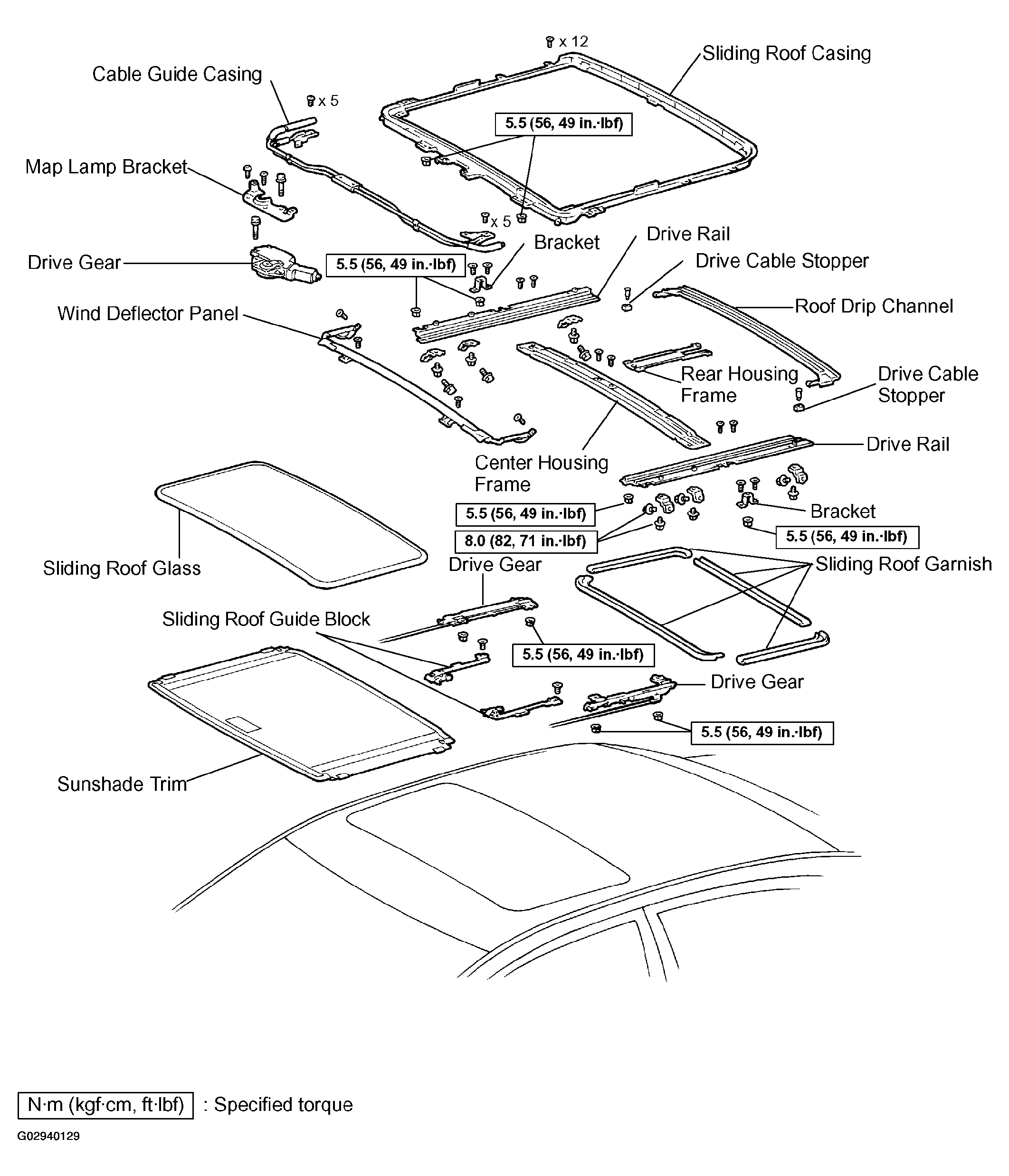

Fig 1: Exploded View Of Sliding Roof With Torque Specifications
