Section 459 (Sliding Roof System): Removal

WARNING: This page is about a different car, the 2005 Lexus GS 430 and 2005 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REAR SEAT CUSHION (See  REMOVAL  )
  2. REMOVE REAR SEATBACK (See  REMOVAL  )
  3. REMOVE FRONT DOOR INSIDE SCUFF PLATES
  4. REMOVE REAR DOOR INSIDE SCUFF PLATES
  5. REMOVE REAR SEAT SIDE GARNISHES
  6. REMOVE FRONT DOOR OPENING TRIMS
  7. REMOVE REAR DOOR OPENING TRIMS
  8. REMOVE REAR PERSONAL LIGHTS
  9. REMOVE ASSIST GRIPS
  10. REMOVE SUN VISORS
  11. REMOVE INNER REAR VIEW MIRROR COVER
  12. REMOVE MAP LAMP ASSEMBLY
    1. Using a screwdriver, remove the lens and cover.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the 4 screws and map lamp assembly.
    3. Disconnect the connectors.
      Fig 1: Removing Map Lamp Assembly
      G02940130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE FRONT PILLAR GARNISH
    1. Using a screwdriver, open the cover.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the bolt.
    3. Remove the front pillar garnish and cover.
    4. Use the same manner described above to the other side.
      Fig 2: Removing Front Pillar Garnish
      G02940131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE CENTER PILLAR LOWER GARNISH
    1. Using a screwdriver, remove the center pillar lower garnish.

      HINT:

      Tape the screwdriver tip before use.

    2. Use the same manner described above to the other side.
      Fig 3: Removing Center Pillar Lower Garnish
      G02940132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE CENTER PILLAR UPPER GARNISH
    1. Remove the 2 screws.
    2. Using a screwdriver, remove the center pillar upper garnish.

      HINT:

      Tape the screwdriver tip before use.

    3. Use the same manner described above to the other side.
      Fig 4: Removing Center Pillar Upper Garnish
      G02940133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE ROOF SIDE INNER GARNISH
    1. Using a screwdriver, remove the roof side inner garnish.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the 3 screws and roof side inner garnish spacer.
    3. Use the same manner described above to the other side.
      Fig 5: Removing Roof Side Inner Garnish
      G02940134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE HOLDERS

    Remove the 2 screws and 2 holders.

  18. REMOVE ROOF HEADLINING
    1. w/ Sliding roof: Remove the opening trim.
    2. Release the 3 clips and fastener tapes to remove the roof headlining.
    3. Remove the 6 screws and 2 side rail spacers.
  19. REMOVE SLIDING ROOF GARNISHES

    Using a screwdriver, remove the sliding roof garnishes.

    HINT:

    • Tape the screwdriver tip before use.
    • Be careful not to scratch the glass or garnishes.
      Fig 6: Removing Sliding Roof Garnishes
      G02940135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE SLIDING ROOF GLASS
    1. Remove the 4 nuts.
    2. Pull the glass upward to remove it.
      Fig 7: Removing Sliding Roof Glass
      G02940136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE SLIDING ROOF HOUSING
    1. Disconnect the connector.
    2. Remove the 4 clips and disconnect the 4 drain hoses from the housing.
    3. Remove the 12 bolts and 6 brackets.
    4. Remove the 6 nuts and sliding roof housing from the body.

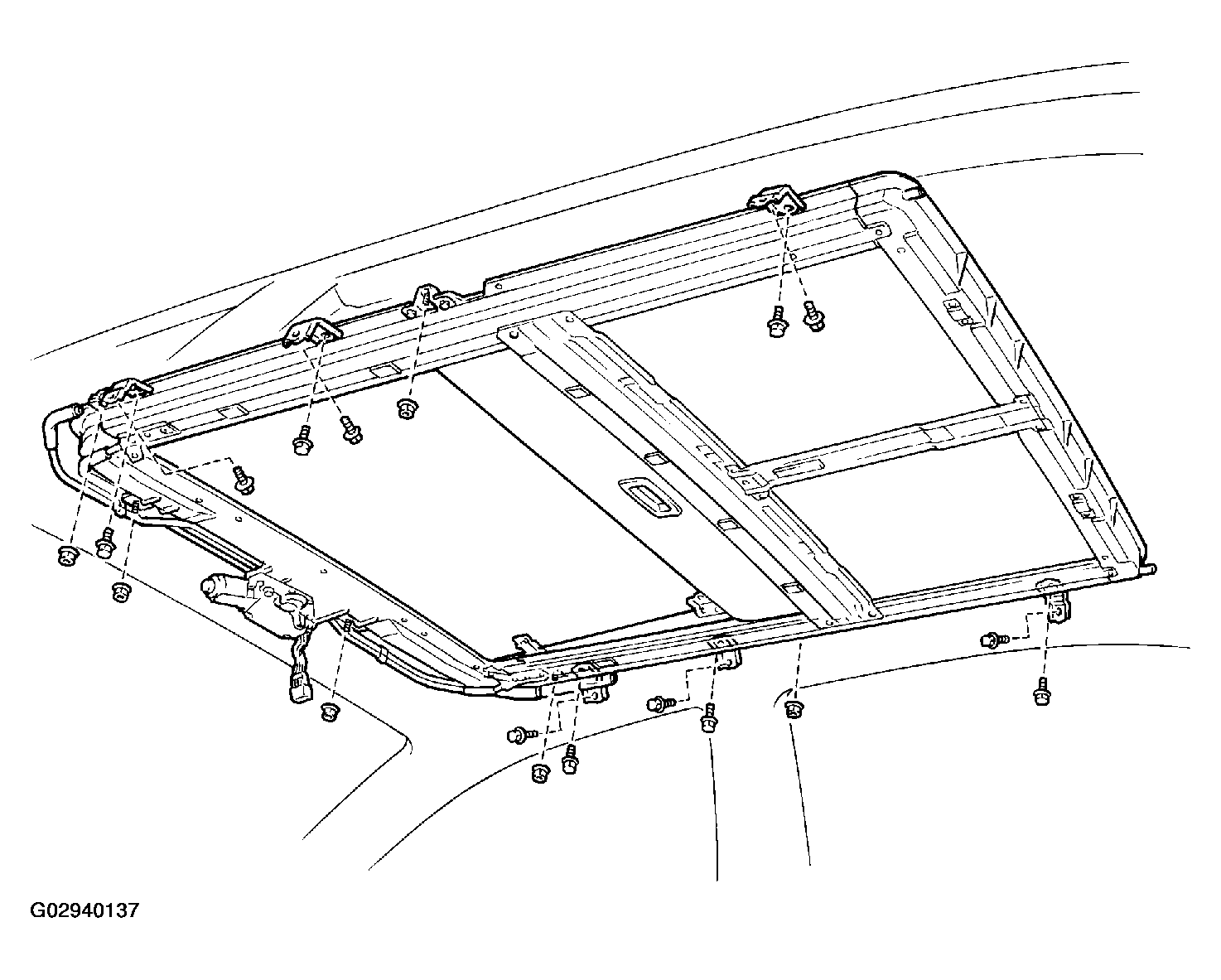

      Fig 8: Removing Sliding Roof Housing
      G02940137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
